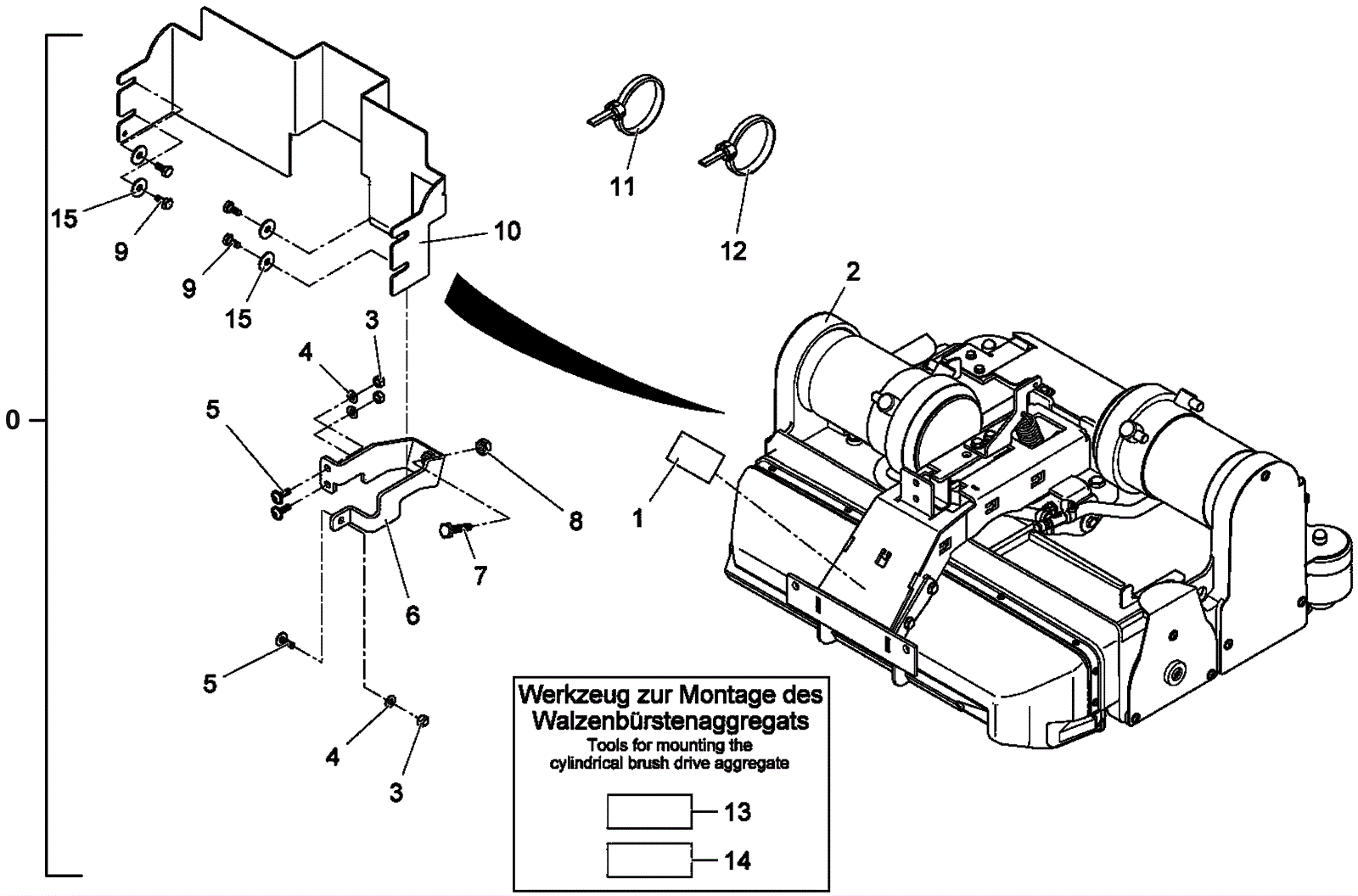

E24 Scrub Deck Assembly Cylindrical Assembly - 1

#PartDescriptionPriceReqNotesAvailability
0 174-3953 Complete cylindrical scrubhead $3,013.03 1 (includes 1-15) usually ships 12-16 days
1 274-0641 BACKING FILM $1.05 1 usually ships 1-5 days
2 374-0306 CYLINDRICAL SCRUBHEAD $2,563.35 1 usually ships 1-5 days
3 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 2 ships same day
4 999-9097 Washer M8 flat stainless steel $0.99 3 ships same day
5 174-6605 Bolt M8-1.25 x 20mm hex cap with flange zinc $0.97 3 usually ships 12-16 days
6 274-4615 BRACKET, BRUSH DECK ADJUST $12.50 1 usually ships 1-5 days
7 374-0740 BLT-HH M10 X 1.5 X 40 STL ZD 8.8 DIN 933 $2.21 1 usually ships 1-5 days
8 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 1 ships same day
9 999-0784 Screw M8-1.25 x 16mm hex head stainless steel $1.74 4 ships same day
10 174-6606 Sheet metal $35.76 1 usually ships 12-16 days
11 997-2102 Cable tie $1.24 6 ships same day
12 174-6185 Cable tie large $1.24 4 usually ships 1-5 days
13 174-6608 Wiring harness to error reset Call for price 1 usually ships 12-16 days
14 174-6609 Adjusting kit Call for price 1 usually ships 12-16 days
15 999-9097 Washer M8 flat stainless steel $0.99 4 ships same day
