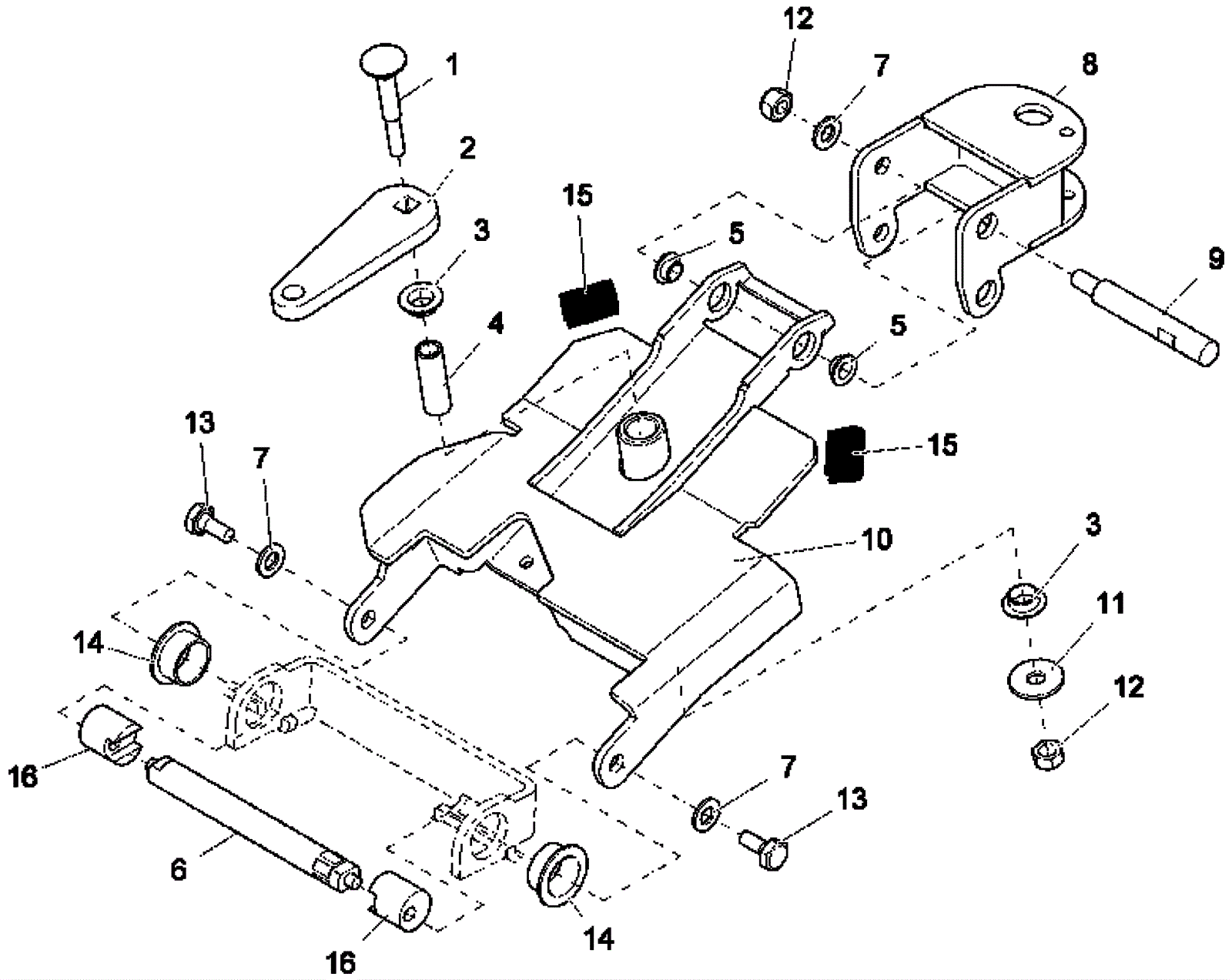

E24 Squeegee Connection Assembly - 1 (used after 4/15/2008)

#PartDescriptionPriceReqNotesAvailability
1 174-9642 Bolt M8-1.25 x 55mm carriage head $4.15 1 usually ships 9-13 days
2 174-8999 Cable attach pivot $5.25 1 usually ships 1-5 days
3 174-8992 Slide bearing $4.56 2 usually ships 1-5 days
4 174-3505 Bushing $20.92 1 usually ships 1-5 days
5 174-8974 Bushing $9.05 2 usually ships 1-5 days
6 174-4153 Shaft $51.68 1 usually ships 9-13 days
7 999-9097 Washer M8 flat stainless steel $0.99 3 ships same day
8 174-3506 Squeegee bracket $22.73 1 usually ships 1-5 days
9 174-9644 Threaded pin $9.12 1 usually ships 1-5 days
10 174-3507 Connection bracket $196.36 1 usually ships 1-5 days
11 999-9097 Washer M8 flat stainless steel $0.99 1 ships same day
12 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.34 2 ships same day
13 999-0784 Screw M8-1.25 x 16mm hex head stainless steel $1.74 2 ships same day
14 374-2358 SLIDE BEARING BUSH $11.93 2 usually ships 9-13 days
15 174-6582 Edge protection $1.05 2 usually ships 9-13 days
16 174-3508 Bearing $17.58 2 usually ships 9-13 days
