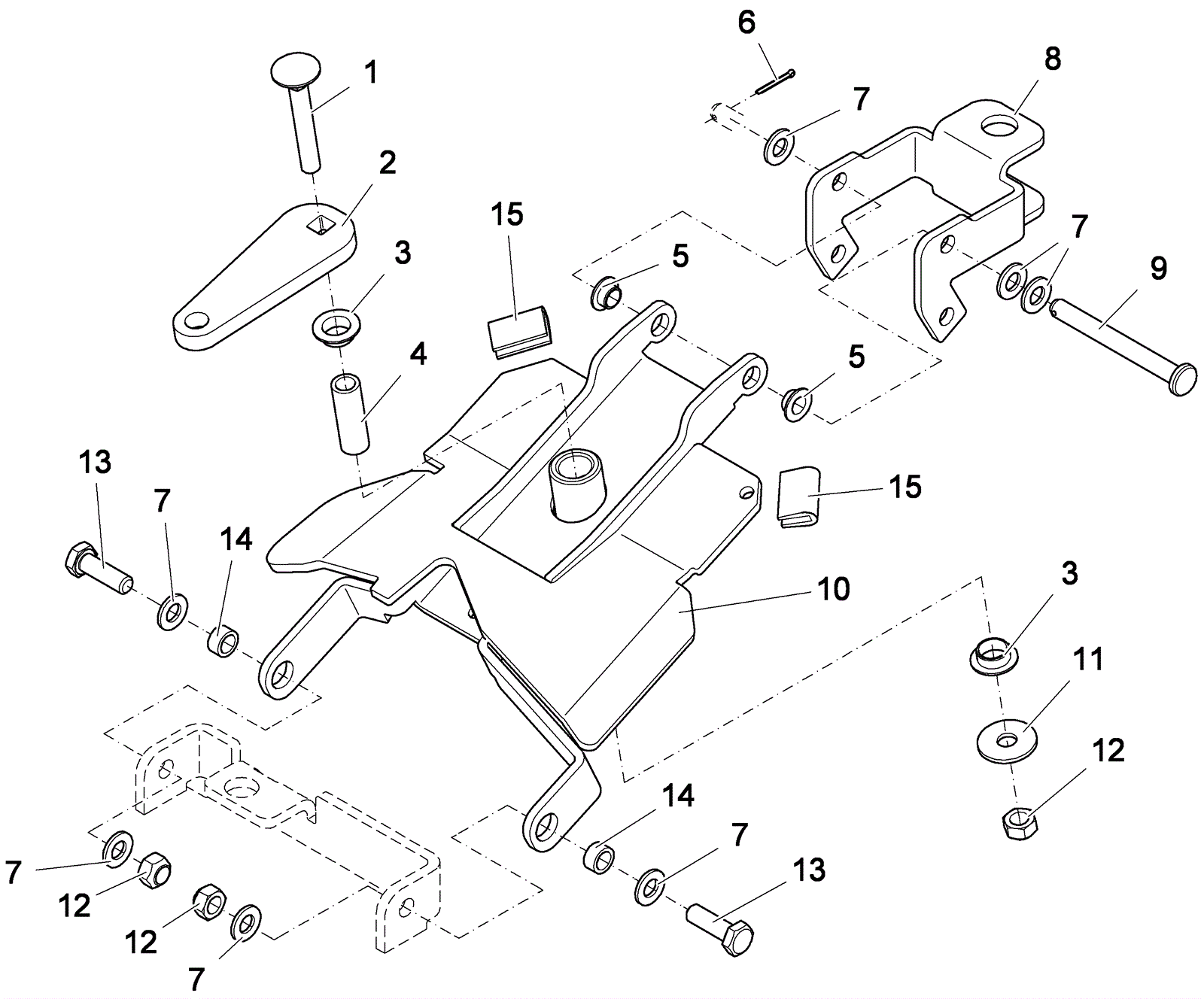

E24 Squeegee Connection Assembly - 1 (used until 4/15/2008)

#PartDescriptionPriceReqNotesAvailability
1 174-9642 Bolt M8-1.25 x 55mm carriage head $3.74 1 usually ships 1-5 days
2 174-8999 Cable attach pivot $4.73 1 usually ships 1-5 days
3 174-8992 Slide bearing $4.10 2 usually ships 1-5 days
4 174-3503 Pipe $13.40 1 usually ships 1-5 days
5 174-9649 Slide bearing bushing $1.39 2 usually ships 1-5 days
6 174-9648 Cotter pin $1.24 1 usually ships 1-5 days
7 999-9097 Washer M8 flat stainless steel $0.99 5 ships same day
8 174-9000 Squeegee bracket $35.70 1 usually ships 1-5 days
9 174-6581 Bolt Call for price 1 usually ships 12-16 days
10 174-3504 Connection bracket $455.45 1 usually ships 1-5 days
11 999-9097 Washer M8 flat stainless steel $0.99 1 ships same day
12 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 3 ships same day
13 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 2 ships same day
14 174-8970 Bushing $5.35 2 usually ships 12-16 days
15 174-8982 Edge protection $2.77 1 usually ships 1-5 days
