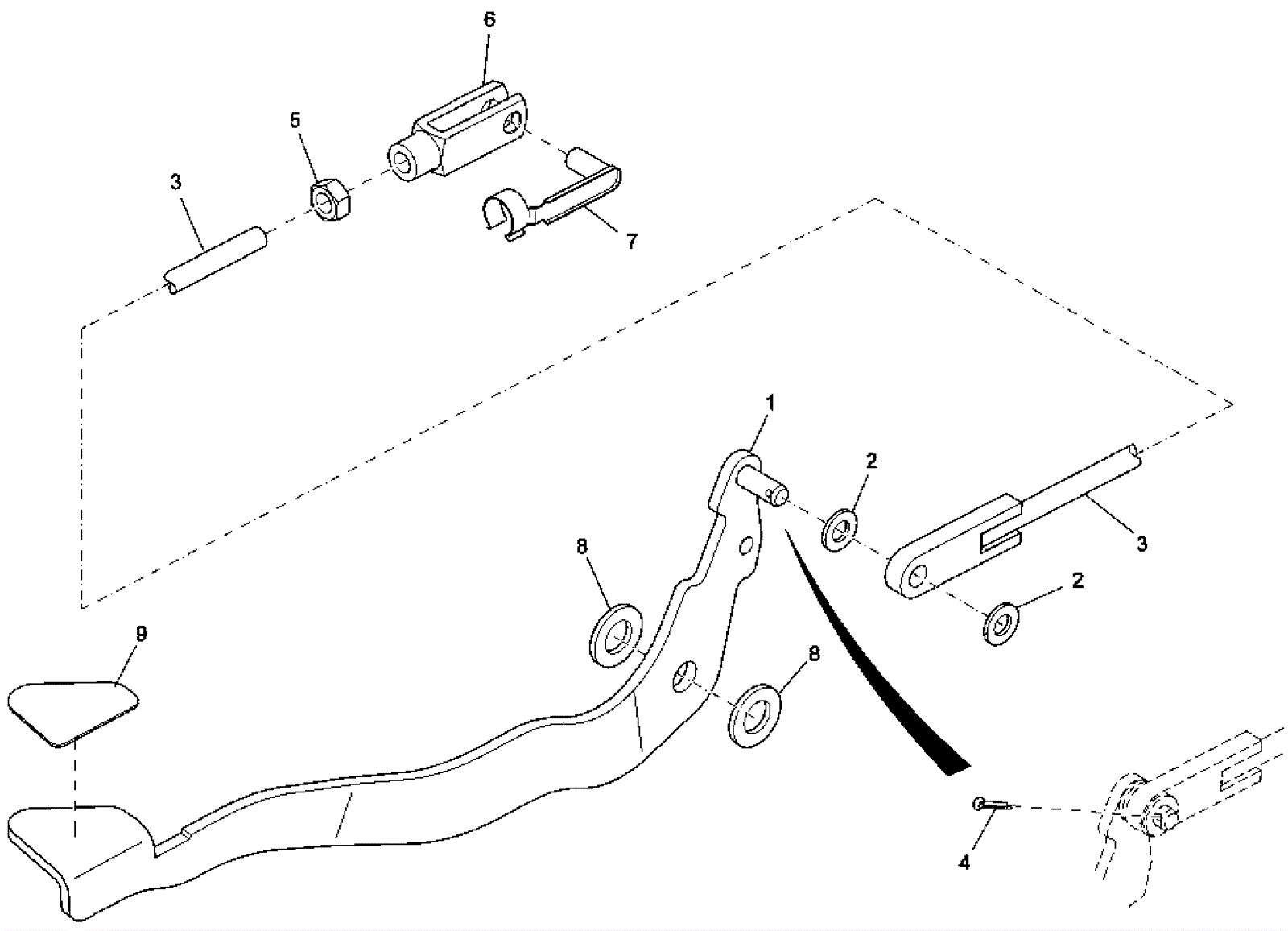

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
174-8887
|
Lifting pedal |
$22.63
|
1 |
|
usually ships 9-11 days |
2 |
174-8888
|
Washer |
$4.15
|
2 |
|
usually ships 9-11 days |
3 |
174-8889
|
Rod weldment |
$31.86
|
1 |
|
usually ships 1-5 days |
4 |
174-8890
|
Cotter pin |
$5.84
|
1 |
|
usually ships 1-5 days |
5 |
999-1428
|
Nut M10-1.5 hex zinc finish |
$0.99
|
1 |
|
ships same day |
6 |
174-9653
|
Clevis yoke |
$8.83
|
1 |
|
usually ships 1-5 days |
7 |
174-9663
|
S-bolt |
$7.69
|
1 |
|
usually ships 1-5 days |
8 |
174-9619
|
Rubber washer |
$5.51
|
2 |
|
usually ships 9-11 days |
9 |
174-9654
|
Anti-slip pedal decal |
$2.48
|
1 |
|
usually ships 9-11 days |
