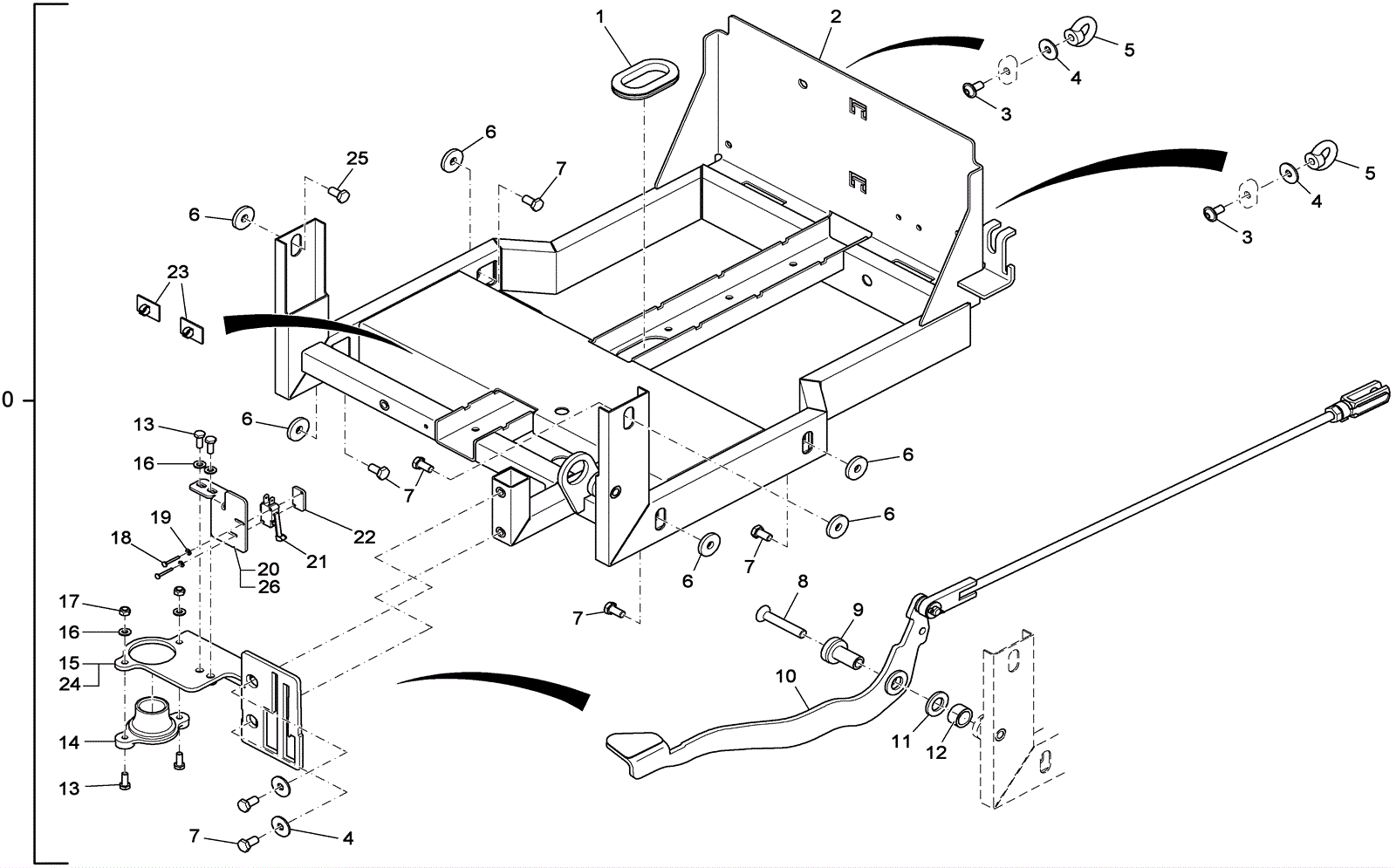

E24 Chassis Assembly - 1

#PartDescriptionPriceReqNotesAvailability
0 174-3905 Chassis assembly $1,173.88 1 (includes 1-26) usually ships 12-16 days
1 174-8967 Grommet $9.97 1 usually ships 1-5 days
2 274-8943 CHASSIS $215.52 1 usually ships 1-5 days
3 174-8919 Screw M8 x 1 1/4 x 16 flanged stainless steel $2.75 2 usually ships 1-5 days
4 999-9097 Washer M8 flat stainless steel $0.99 6 ships same day
5 174-9625 Nut M8-1.25 eye zinc $4.00 2 usually ships 1-5 days
6 174-8895 Washer $2.06 6 usually ships 12-16 days
7 999-0784 Screw M8-1.25 x 16mm hex head stainless steel $1.74 6 ships same day
8 174-9641 Screw M10-1.5 x 60mm flat head $1.72 1 usually ships 12-16 days
9 174-9658 Pedal pivot bushing $13.33 1 usually ships 12-16 days
10 274-5593 LIFTING PEDAL $107.11 1 usually ships 12-16 days
11 174-9621 Washer M17 flat $3.74 1 usually ships 12-16 days
12 174-9657 Spacer $3.46 1 usually ships 12-16 days
13 999-1383 Screw M6-1 x 16mm hex head stainless steel $3.96 4 ships same day
14 174-8292 Cable guide bushing $4.55 1 usually ships 1-5 days
15 174-3481 Pedal locking bracket Call for price 1 (used until 06/2007) usually ships 1-5 days
16 999-1261 Washer M6 flat stainless steel $0.99 8 ships same day
17 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 4 usually ships 12-18 days
18 999-1897 Screw M3-.5 x 20mm hex head $0.99 2 usually ships 1-5 days
19 999-1521 Washer M3 flat stainless steel $0.99 2 ships same day
20 174-3482 Support bracket Call for price 1 (used until 06/2007) usually ships 1-5 days
21 174-8931 Micro switch $16.57 1 usually ships 12-16 days
22 174-8930 Threaded switch mount plate $5.49 1 usually ships 1-5 days
23 174-8972 Cable clip $1.39 2 usually ships 1-5 days
24 174-8973 Pedal locking bracket $68.27 1 (used after 07/2007) usually ships 12-16 days
25 999-0900 Screw M8-1.25 x 18mm hex head stainless steel $2.64 1 ships same day
26 174-6576 Switch mount bracket $3.08 1 (used after 07/2007) usually ships 12-16 days
