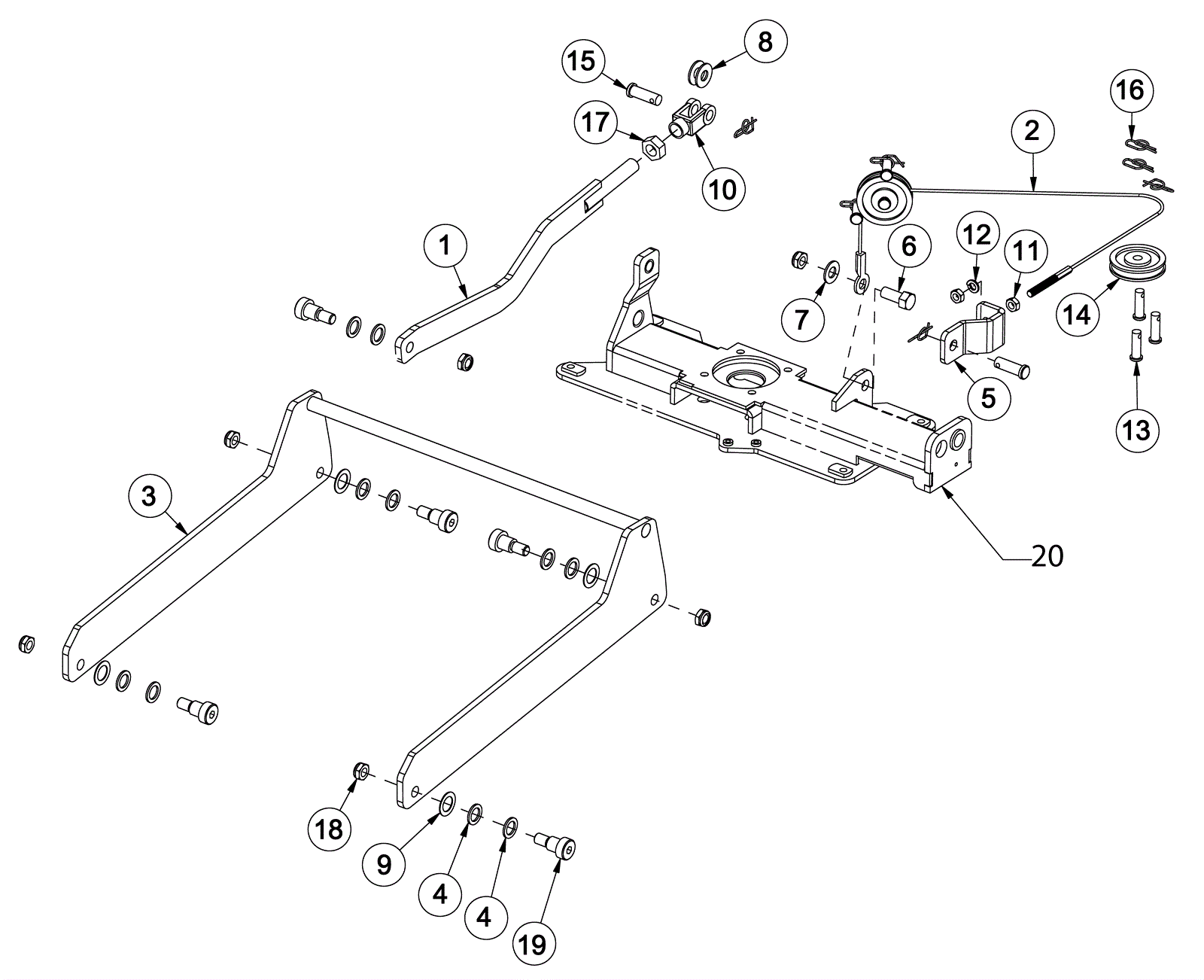

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
174-3620
|
20 inch deck adjust link weldment |
$39.89
|
1 |
|
ships same day |
2 |
174-4529
|
Scrub deck cable |
$58.39
|
1 |
|
ships same day |
3 |
174-3621
|
20 inch scrubhead arm weldment |
$154.82
|
1 |
|
ships same day |
4 |
174-3622
|
Nylon flat washer 1/2 x 3/4 x 5/8 |
$1.08
|
10 |
|
ships same day |
5 |
174-4530
|
Cable link |
$22.92
|
1 |
|
ships same day |
6 |
999-0494
|
Bolt 5/16-18 x 7/8 hex head stainless steel |
$0.99
|
1 |
|
ships same day |
7 |
999-0120
|
Washer 3/8 SAE flat |
$0.99
|
1 |
|
ships same day |
8 |
174-8193
|
Washer .390 x .880 x .062 flat |
$1.08
|
2 |
|
ships same day |
9 |
999-0855
|
Washer 9/16 SAE flat |
$0.99
|
4 |
|
ships same day |
10 |
174-7162
|
Yoke clevis with pin |
$18.26
|
1 |
|
usually ships 1-5 days |
11 |
999-0609
|
Nut 1/4-20 hex stainless steel |
$0.99
|
2 |
|
ships same day |
12 |
999-0632
|
Washer 1/4 split lock stainless steel |
$0.99
|
1 |
|
ships same day |
13 |
174-0190
|
Clevis pin |
$1.23
|
6 |
|
ships same day |
14 |
174-3632
|
Plastic groove pulley 2 x 1/4 inches |
$10.04
|
2 |
|
ships same day |
15 |
174-1852
|
Clevis pin 3/8 x 1 1/8 zinc plated |
$1.45
|
2 |
|
ships same day |
16 |
174-1578
|
3/8 rue ring cotter pin |
$1.81
|
8 |
|
ships same day |
17 |
999-0714
|
Nut 1/2-20 hex jam stainless steel |
$1.25
|
1 |
|
ships same day |
18 |
999-0324
|
Nut 3/8-16 nylon insert lock jam zinc plated |
$0.99
|
6 |
|
ships same day |
19 |
174-5325
|
Bolt 1/2 x 1/2 shoulder |
$3.08
|
5 |
|
ships same day |
20 |
174-4528
|
Scrub deck frame |
$240.63
|
1 |
|
ships same day |
