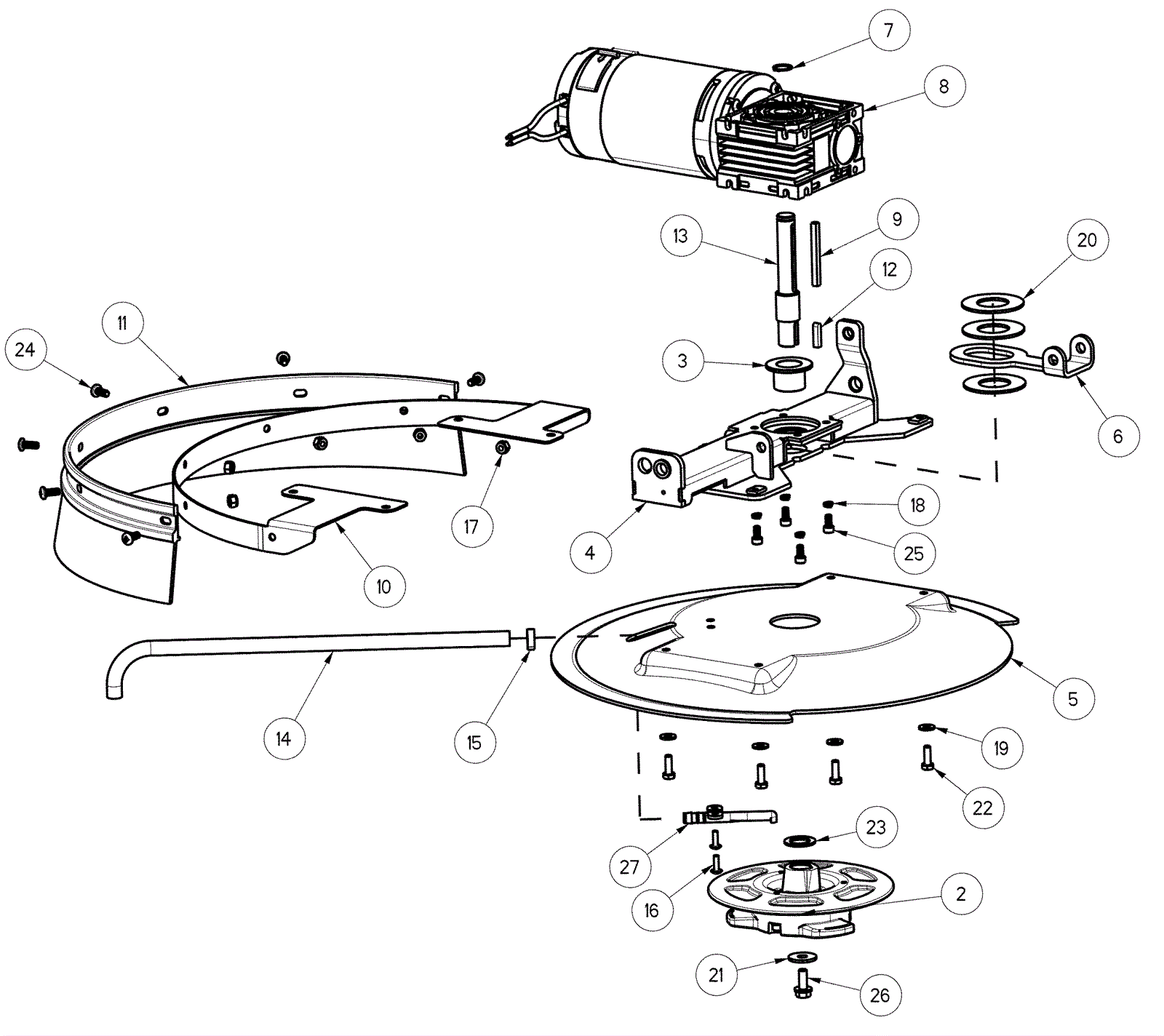

MAXRIDE 20 ROBOSCRUB Scrub Head Assembly

#PartDescriptionPriceReqNotesAvailability
2 274-5508 HUB ASSEMBLY, DISC DECK $48.00 1 ships same day
3 174-3603 Flange bushing $7.11 1 usually ships 4-14 days
4 174-4528 Scrub deck frame $192.50 1 usually ships 4-14 days
5 174-3605 20 inch scrub head cover $34.09 1 ships same day
6 174-3606 Pivot ring $14.99 1 usually ships 4-14 days
7 174-3607 Retaining ring $0.86 1 ships same day
8 174-3619 Amer brush gear motor $503.53 1 ships same day
9 174-3609 Square keyway 6 x 6 x 2.625mm $3.83 1 ships same day
10 174-3611 Deck skirt bracket $85.06 1 ships same day
11 174-3612 Deck brush skirt $67.21 1 ships same day
12a 174-6641 Key 6mm x 6mm $3.22 1 (after SN 18110267) ships same day
12b 174-3608 Square keyway 6 x 6 x .7mm $3.49 1 (before SN 18110268) usually ships 4-14 days
13 174-6640 Right angle drive stub shaft $82.50 1 ships same day
14 174-3613 Hose 3/8 x 16 1/2 inches $3.98 1 usually ships 4-14 days
15 997-2001 Hose clamp $2.42 1 ships same day
16 999-1070 Screw 10-32 x 5/8 truss head phillips stainless steel $0.99 2 ships same day
17 999-0190 Nut 1/4-20 hex plain finish $0.99 6 ships same day
18 174-3614 Washer 1/4 split lock stainless steel $0.86 4 usually ships 4-14 days
19 999-0016 Washer 1/4 flat plain finish $0.99 4 ships same day
20 174-3615 Washer 1 9/32 flat zinc $1.86 3 ships same day
21 174-8169 Washer flat .37 x 1.12 x .10 $2.06 1 ships same day
22 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated $0.99 4 ships same day
23 999-1134 Washer 1 1/4 flat stainless steel $6.01 1 ships same day
24 999-0567 Screw 1/4-20 x 5/8 pan head phillips stainless steel $0.99 6 ships same day
25 174-3617 Screw-socket head cap screw M6-1.0 x 12mm zinc plated $0.86 4 usually ships 4-14 days
26 174-7184 Bolt M8-1.25 x 20mm hex head flange precote zinc plated $1.80 1 ships same day
27 174-8314 Solution feed nozzle $2.10 1 ships same day
N/S 174-4527 50ml blue loctite Call for price 1 usually ships 4-14 days
