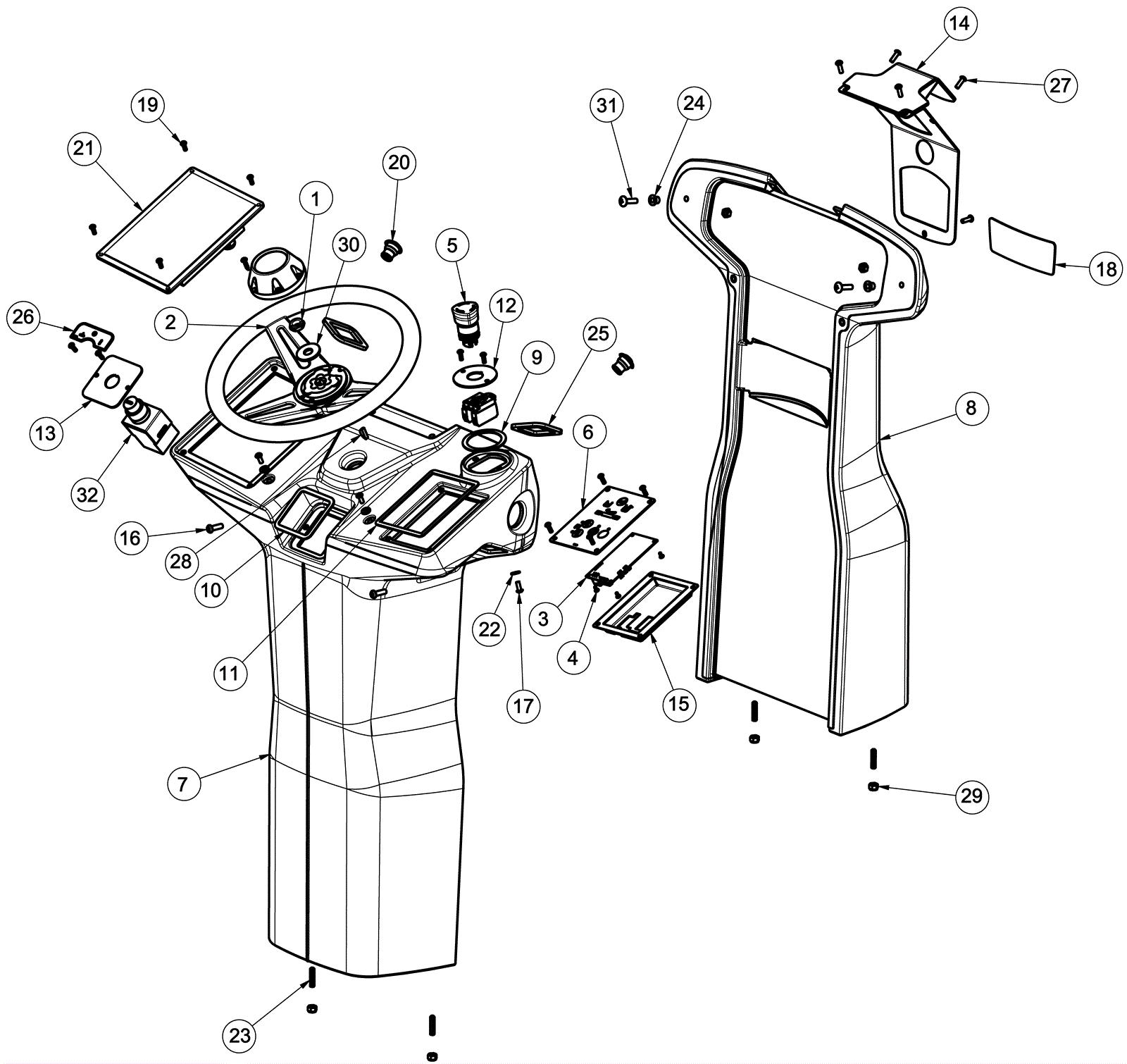

MAXRIDE 20 ROBOSCRUB Console Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0182 Nut 1/2-20 hex plain finish $0.99 1 ships same day
2 174-2989 12 3/4 inch steering wheel $82.17 1 ships same day
3 174-4508 Vehicle interface $360.71 1 ships same day
4 999-6715 Screw M3-.5 x 6mm pan head stainless steel $0.99 4 usually ships 11-24 days
5 174-4509 Estop switch assembly $65.31 1 ships same day
6 174-4510 PCB membrane assembly $115.03 1 usually ships 4-14 days
7 174-4511 Rear console $115.59 1 usually ships 4-14 days
8 174-4512 Front console $101.34 1 usually ships 4-14 days
9 174-4513 Estop gasket $33.60 1 usually ships 4-14 days
10 174-4514 Keyswitch gasket $62.91 1 usually ships 4-14 days
11 174-4516 Vehicle control gasket $0.84 1 usually ships 4-14 days
12 174-4517 Estop mount plate $16.27 1 usually ships 4-14 days
13 174-4518 Switch mount plate $14.96 1 usually ships 4-14 days
14 174-4519 Lidar bracket $72.08 1 (This is the new style Lidar bracket. When replacing the old style bracket with this new one, you will no longer need to purchase item 18, 174-4521 decal) ships same day
15 174-4520 Membrane cover weldment $66.95 1 usually ships 4-14 days
16 999-6726 Screw 1/4-20 x 7/8 button head socket cap black oxide $0.99 2 ships same day
17 999-6727 Screw 10-24 x 1/2 button head socket cap black oxide $0.99 4 ships same day
18 174-4521 Brain corp reflective front decal $4.30 1 usually ships 4-14 days
19 999-6731 Screw 8-32 x 1/2 inch button socket cap black onyx $0.99 12 ships same day
20 174-4522 Turn indicator $22.80 2 usually ships 4-14 days
21a 174-4523 Touch screen module $1,110.74 1 ships same day
21b 174-4523 Touch screen module $1,110.74 1 ships same day
21c 174-4515 Touchscreen gasket $59.43 1 usually ships 4-14 days
22 999-6732 Washer #12 flat black oxide $0.99 4 usually ships 11-24 days
23 999-6734 Screw 1/4-20 x 1-1/8 cup point set black oxide $1.98 4 ships same day
24 174-4524 Nylon flange bushing $3.65 2 usually ships 4-14 days
25 174-4525 Side sensor gasket $3.31 2 usually ships 4-14 days
26 174-6639 Key switch decal $4.93 1 usually ships 4-14 days
27 999-6764 Screw 10-24 x 5/8 button head socket cap black oxide $1.10 5 ships same day
28 174-2748 Woodruff key 3/16 x 3/4 $1.10 1 ships same day
29 999-0190 Nut 1/4-20 hex plain finish $0.99 6 ships same day
30 999-0187 Washer 1/2 flat plain finish $0.99 1 ships same day
31 999-1382 Screw 1/4-20 x 1 truss head phillips $1.16 2 ships same day
32 174-4526 Rotary cam switch $131.63 1 (key switch) ships same day
N/S 174-8456 Replacement key (set of 2) $20.70 1 ships same day
