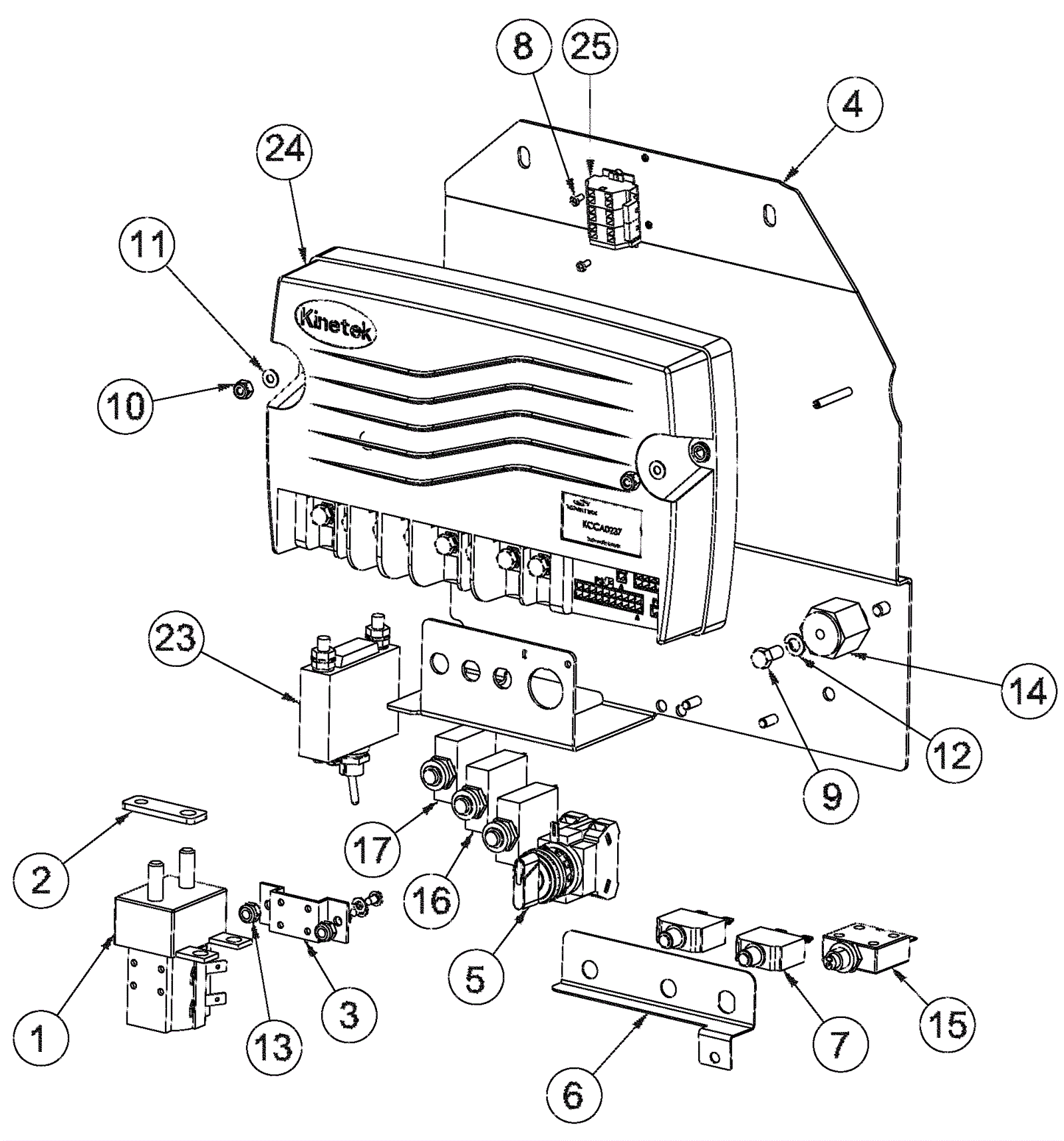

MAXRIDE 20 ROBOSCRUB Electrical Panel Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-4499 Relay $90.01 1 ships same day
2 174-4500 Terminal bracket $25.70 1 usually ships 4-14 days
3 174-4501 Relay bracket $2.35 1 usually ships 4-14 days
4 174-4502 Auto electrical panel $64.42 1 usually ships 4-14 days
5 174-4503 Mode switch $54.09 1 usually ships 4-14 days
6 274-9797 Circuit breaker mount $241.45 1 (CE model only) usually ships 1-5 days
7 274-9798 40A circuit breaker $33.38 2 (CE model only) usually ships 4-14 days
8 999-6733 Screw 4-40 x 1/4 inch round head zinc plated $0.99 1 usually ships 11-24 days
9 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated $0.99 1 ships same day
10 999-0151 Nut 8-32 nylon insert lock zinc plated $1.10 2 ships same day
11 999-0412 Washer #8 SAE flat $0.99 2 ships same day
12 999-0060 Washer 1/4 split lock plain finish $0.99 2 ships same day
13 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 2 ships same day
14 174-0156 Insulated standoff $5.77 2 usually ships 1-5 days
15a 274-1163 30amp circuit breaker $5.37 1 (CE model only) ships same day
15b 991-1629 35amp circuit breaker $9.23 1 (NON-OEM) usually ships 11-24 days
16 274-4840 10amp push button circuit breaker $32.30 2 ships same day
17 274-4681 1.5amp push button circuit breaker $9.86 1 ships same day
23 174-6302 100amp circuit breaker $89.56 2 usually ships 4-14 days
24 174-4506 Vehicle control unit $774.60 1 ships same day
25 174-4507 Terminal block assembly $14.36 2 usually ships 4-14 days
N/S 174-6638 Module mr robot harness $111.11 1 usually ships 4-14 days
N/S 174-0230 Diode assembly $3.49 usually ships 4-14 days
N/S 174-4505 Common electrical parts $233.93 2 (See Electrical Components for parts) usually ships 4-14 days
N/S 174-4505 Common electrical parts $233.93 1 (See Electrical Components for parts) usually ships 4-14 days
N/S 174-9694 Drive motor harness $151.97 1 usually ships 4-14 days
N/S 274-9862 Drive motor harness $174.09 1 (CE model only) ships same day
N/S 174-6636 Control mr robot harness $228.85 1 usually ships 4-14 days
N/S 174-6637 Brush motor mr robot harness $51.63 1 usually ships 4-14 days
N/S 274-9863 Brush motor MR robot harness $53.38 1 (CE model only) usually ships 1-5 days
