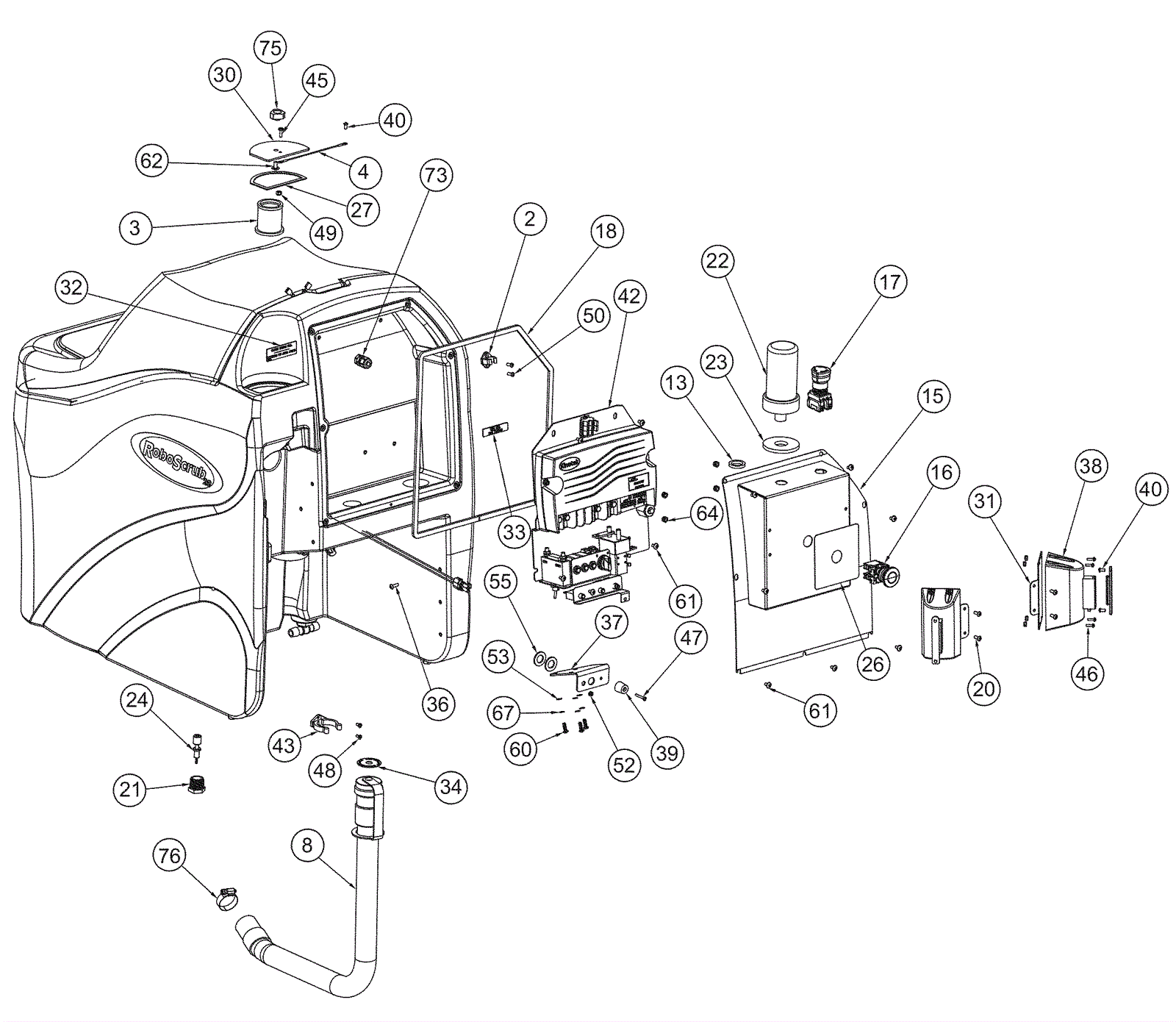

MAXRIDE 20 ROBOSCRUB Rear Tank Assembly

#PartDescription ReqNotesAvailability
2 174-8263 Clip 1 usually ships 8-11 days
3 174-8189 Fill port filter 1 usually ships 8-11 days
4 274-0505 LANYARD, NYLON COATED 6 inch 1 usually ships 8-11 days
8a 174-2958 Drain hose with cap 1 1/2 x 30 1/2 inch 1 usually ships 8-11 days
8b 991-9184 HOSE ASSEMBLY (FANG20,20T,24T,26T,28T) 1 (NON-OEM) usually ships 13-17 days
13 174-2990 3/16 thick pvc key switch spacer 1 usually ships 8-11 days
15 174-4486 Auto electrical cover 1 usually ships 8-11 days
16a 174-4488 Wiring harness 1 (full assembly, including wiring) usually ships 8-11 days
16b 174-4487 Switch 1 (button only) usually ships 8-11 days
17 174-4489 Estop switch assembly 1 usually ships 8-11 days
18 174-4492 Electrical panel gasket 1 usually ships 8-11 days
20 999-6727 Screw 10-24 x 1/2 button head socket cap black oxide 4 usually ships 11-14 days
22 174-4494 Caution light 1 usually ships 8-11 days
23 174-4495 Caution light gasket 1 usually ships 8-11 days
24 174-4496 Float switch assembly 1 usually ships 8-11 days
26 174-4497 Brain corp rear decal 1 usually ships 8-11 days
27 274-9858 Gasket 2 inch usually ships 1-5 days
31 174-6627 Barrier mount 2 usually ships 8-11 days
32 174-6632 Clean water fill decal 1 usually ships 8-11 days
33 174-6628 Max fill decal 1 usually ships 8-11 days
34 174-6629 Drain decal 1 usually ships 8-11 days
36 999-6764 Screw 10-24 x 5/8 button head socket cap black oxide 1 usually ships 11-14 days
37 174-6626 Rear cover latch bracket 1 usually ships 8-11 days
38 174-6633 Retractable barrier 2 usually ships 8-11 days
39 174-6630 Rubber bumper 1 usually ships 8-11 days
40 174-6631 Screw #10-16 x 3/8 hi lo pan head phillips zinc (black) 4 usually ships 8-11 days
42a 174-4490 Electrical panel assembly 1 usually ships 8-11 days
42b 174-4490 Electrical panel assembly 1 (auto ce) usually ships 8-11 days
43 174-5968 1 1/2 inch hose clip 1 usually ships 8-11 days
45 999-0410 Screw 8-32 x 5/8 pan head slotted zinc plated 5 usually ships 11-14 days
46 374-1037 SCR-MC 6-32 X .50 ZINC 8 usually ships 1-5 days
47 999-0511 Screw 6-32 x 1 pan head phillips zinc plated 1 usually ships 11-14 days
48 174-6229 Screw 8-32 x 3 3/4 flat head 2 usually ships 8-11 days
49 999-0357 Nut 8-32 nylon insert lock stainless steel 1 usually ships 11-14 days
50 174-6388 Screw #10-16 x 1/2 hi/lo 2 usually ships 8-11 days
52 999-0337 Nut 6-32 nylon insert lock stainless steel 9 usually ships 11-14 days
53 999-0412 Washer #8 SAE flat 3 usually ships 11-14 days
55 999-0349 Washer 5/8 SAE flat 2 usually ships 11-14 days
60 999-0615 Screw 10-24 x 5/8 truss head slotted stainless steel 7 usually ships 11-14 days
61 999-0585 Screw 10-24 x 3/8 truss head slotted stainless steel 12 usually ships 11-14 days
62 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel 1 usually ships 11-14 days
64 999-0442 Nut 10-24 nylon insert lock stainless steel 4 usually ships 11-14 days
67 999-0089 Washer #10 internal star lock zinc plated 3 usually ships 11-14 days
73 274-0381 Strain relief 1 usually ships 8-11 days
75 174-3084 Knob 1/4-20 1 usually ships 8-11 days
76 174-3354 Hose clamp 1 usually ships 8-11 days
