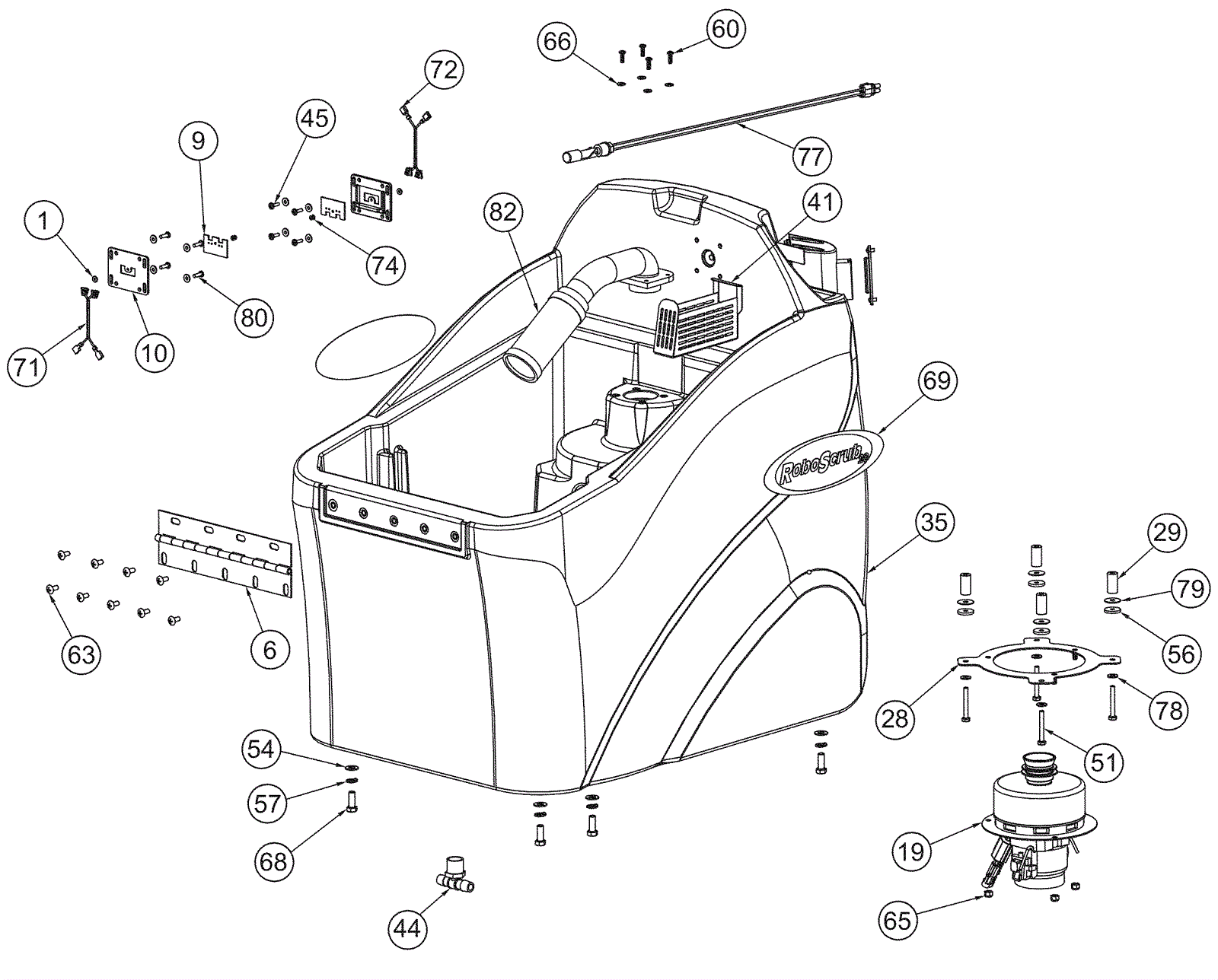

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
174-1899
|
Rivet |
2 |
|
|
6 |
174-1974
|
Hinge |
1 |
|
|
9 |
174-6617
|
Lid interconnect assembly |
2 |
(must order this for the lid no longer replaces the tank interconnect. Replaces 174-1983) |
|
10 |
174-6618
|
Tank interconnect assembly |
2 |
(must order this for the tank no longer replaces the lid interconnect. Replaces 174-1983) |
|
19 |
174-4479
|
2 stage vacuum motor assembly |
1 |
|
|
28 |
174-4480
|
Vacuum bracket |
1 |
|
|
29 |
174-4441
|
Nylon spacer 1/4 x 5/8 x 1 1/4 |
4 |
|
|
35 |
174-6624
|
Solution and recovery tank |
1 |
|
|
41 |
174-6646
|
MR20 recovery filter |
1 |
|
|
44 |
174-8224
|
Fitting 1/2 barb 3/4 mpt |
1 |
|
|
45 |
999-0410
|
Screw 8-32 x 5/8 pan head slotted zinc plated |
4 |
|
|
51 |
999-1892
|
Screw 1/4-20 x 2 hex cap stainless steel |
4 |
|
|
54 |
999-0120
|
Washer 3/8 SAE flat |
4 |
|
|
56 |
174-4481
|
Washer 1/4 x 1 inch rubber |
4 |
|
|
57 |
999-0034
|
Washer 3/8 split lock plain finish |
4 |
|
|
60 |
999-0615
|
Screw 10-24 x 5/8 truss head slotted stainless steel |
7 |
|
|
63 |
999-0567
|
Screw 1/4-20 x 5/8 pan head phillips stainless steel |
9 |
|
|
65 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
3 |
|
|
66 |
999-0998
|
Washer #10 flat stainless steel |
19 |
|
|
68 |
999-0038
|
Bolt 3/8-16 x 1 hex head grade 5 zinc plated |
4 |
|
|
69 |
174-4482
|
Robo scrub main oval decal |
2 |
|
|
71 |
174-6618
|
Tank interconnect assembly |
1 |
|
|
72 |
N/A
|
Not available |
1 |
(Only available in 174-6617) |
|
74 |
174-2051
|
Pop rivet |
2 |
|
|
77 |
174-4484
|
Float switch |
1 |
|
|
78 |
999-0016
|
Washer 1/4 flat plain finish |
4 |
|
|
79 |
174-4485
|
Washer 1/4 x 1 inch stainless steel |
4 |
|
|
80 |
174-2957
|
Screw 10-16 x 3/4 pan head hi/lo stainless steel |
11 |
|
|
82a |
174-8924
|
Filter |
1 |
|
|
82b |
174-6619
|
Gasket |
1 |
|
|
