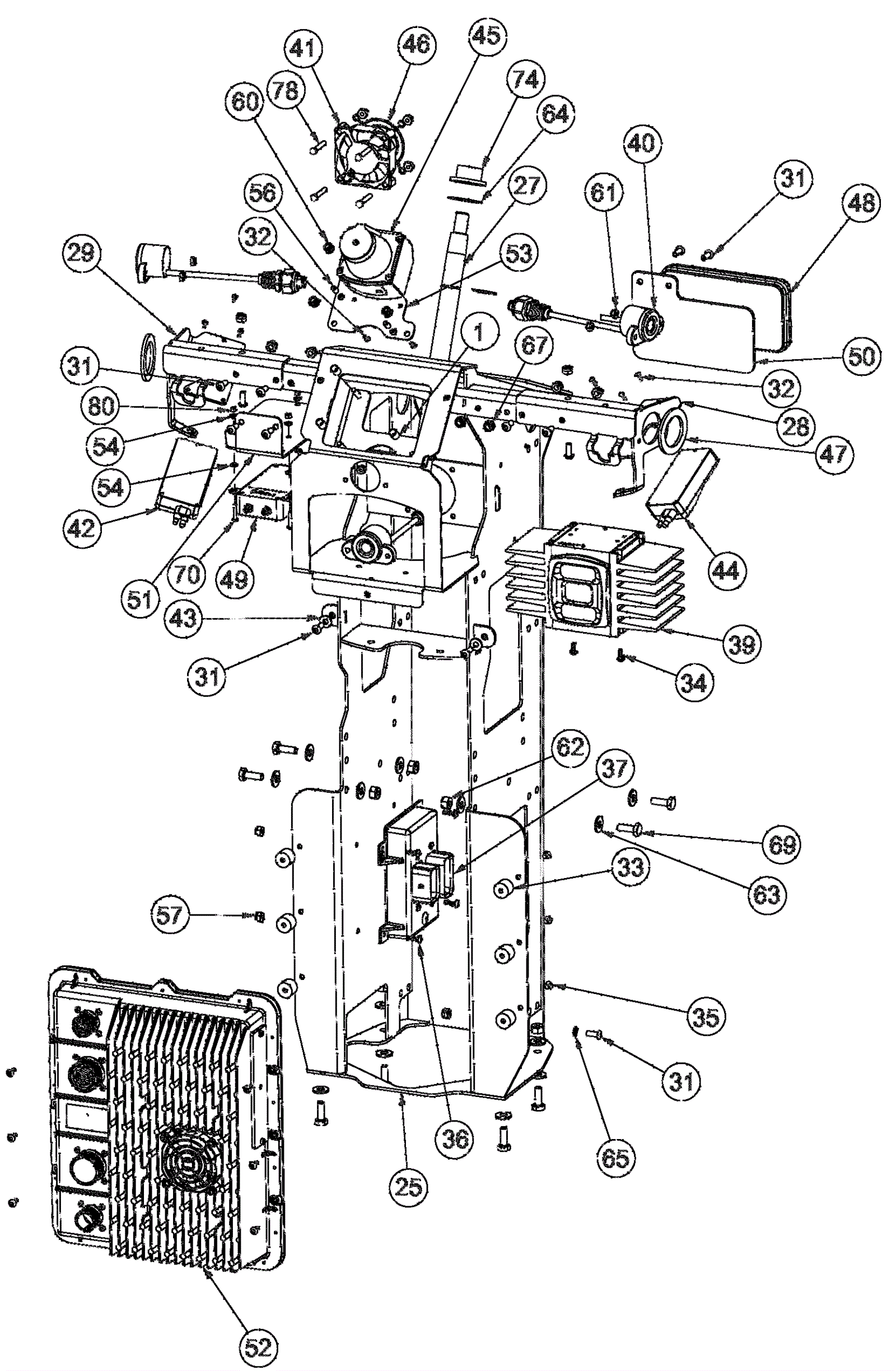

MAXRIDE 20 ROBOSCRUB Upper Tower Assembly

#PartDescriptionPriceReqNotesAvailability
1 374-2284 Compression spring $1.02 3 usually ships 4-14 days
25 174-4458 Tower weldment $542.80 1 usually ships 4-14 days
27 174-4459 Auto steering upper shaft $57.26 1 usually ships 4-14 days
28 174-4460 Upper left hand tower weldment $39.60 1 usually ships 4-14 days
29 174-4461 Upper right hand tower weldment $36.78 1 usually ships 4-14 days
31 999-6727 Screw 10-24 x 1/2 button head socket cap black oxide $0.99 13 ships same day
32 174-4445 Screw M3-.5 x 8mm button head socket cap nylon patch SS $6.23 8 usually ships 4-14 days
33 174-4462 M4 isolator $1.25 6 usually ships 4-14 days
34 999-6669 Screw M4-.7 x 10mm button socket head stainless steel $0.99 8 ships same day
35 999-6730 Screw M4-.7 x 6mm button socket cap stainless steel $1.12 6 ships same day
36 999-6731 Screw 8-32 x 1/2 inch button socket cap black onyx $0.99 4 ships same day
37 174-4464 Motor amplifier module $1,341.38 1 ships same day
39 174-4465 Front 3D camera $2,414.48 1 ships same day
40 174-4466 2D camera module $191.49 3 ships same day
41 174-4467 Fan module $73.21 1 usually ships 4-14 days
42 174-4468 Right hand 3D camera $716.63 1 ships same day
43 999-6732 Washer #12 flat black oxide $0.99 2 usually ships 11-24 days
44 174-4469 Left hand 3D camera $716.63 1 usually ships 4-14 days
45 174-4470 Slanted lidar $3,895.50 1 ships same day
46 174-4471 60mm finger guard $1.78 1 usually ships 4-14 days
47 174-4472 Camera gasket $2.70 2 usually ships 4-14 days
48 274-9789 4G antenna $120.54 1 usually ships 4-14 days
49 274-9881 Modem $629.90 1 (requires ref. # 54 isolation washers) ships same day
50 174-4474 Antenna mount $17.87 1 usually ships 4-14 days
51 174-4475 Modem bracket $13.05 1 usually ships 4-14 days
53 174-6623 Lidar mount plate $17.62 1 usually ships 4-14 days
54 374-3048 #4 shoulder washer $1.06 6 usually ships 4-14 days
56 999-0321 Screw 10-32 x 3/8 pan head slotted zinc plated $0.99 2 ships same day
57 999-0357 Nut 8-32 nylon insert lock stainless steel $0.99 8 ships same day
60 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 3 ships same day
61 999-0337 Nut 6-32 nylon insert lock stainless steel $0.99 6 ships same day
62 999-0190 Nut 1/4-20 hex plain finish $0.99 10 ships same day
63 999-0016 Washer 1/4 flat plain finish $0.99 20 ships same day
64 999-9114 Washer 3/4 flat stainless steel $1.58 2 ships same day
65 999-0311 Washer #10 external star lock zinc plated $0.99 1 ships same day
67 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 9 ships same day
69 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated $0.99 10 ships same day
70 999-0738 Screw M3-.5 x 16mm pan head phillips zinc $0.99 3 ships same day
74 174-1265 Flanged bushing $5.03 2 usually ships 1-5 days
78 174-4477 Screw 8-32 x 1 hex head zinc plated $0.97 4 usually ships 4-14 days
80 374-0778 Nut M3 hex DIN 985 stainless steel $0.98 3 usually ships 4-14 days
