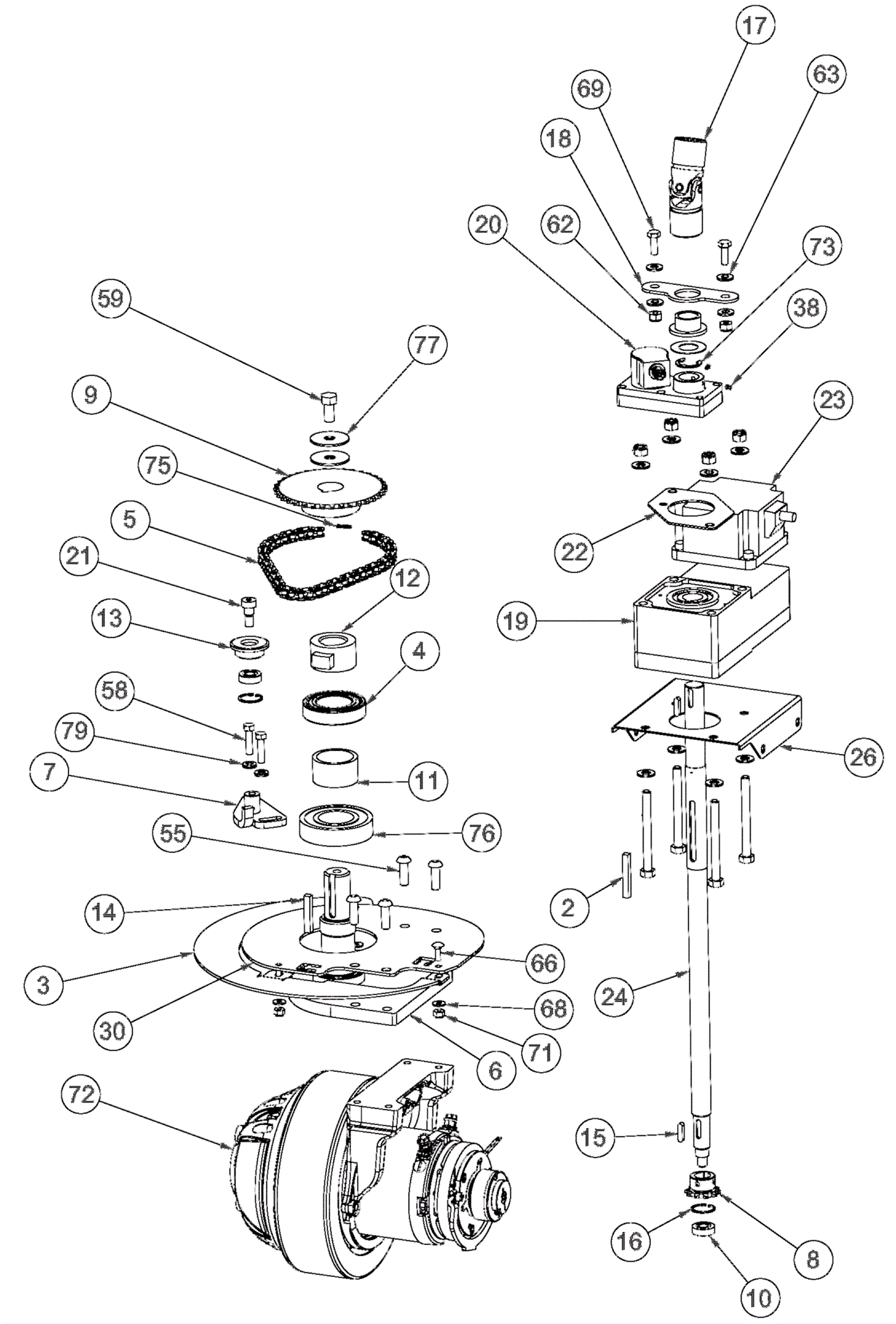

Drive Wheel and Steering Tower

#PartDescription ReqNotesAvailability
2 174-7160 Square keyway 1
3 274-9828 Drive wiring plate 1
4 174-1876 Ball bearing 35mm x 62mm x 14mm 1
5a 174-1877 #35 chain (45 links) 1 (OEM)
5b 991-0105 Chain (sold by the link) 45 (NON-OEM)
6 174-1878 Steering spindle weldment 1
7 174-1879 Chain tension bracket 1
8 174-1880 10 toothed sprocket 1
9 174-1881 35 toothed sprocket 1
10 174-1883 Ball bearing 2
11 174-1882 Spacer 1
12 174-1884 Steering stop pivot 1
13 174-1890 Chain tension guide 1
14 174-1891 Square key 1/4 x 1/4 x 1 1/2 inch 1
15 174-1871 Square key 3/16 x 3/16 x 3/4 inch 3
16 174-1892 Retaining ring 2
17 174-1873 25 degree U-joint 1
18 174-1875 Steering bearing plate 1
19 174-4450 Hollow shaft gearbox 1
20 174-4451 Steering encoder 1
21 174-1893 Bolt 3/8 x 5/16 shoulder (black) 1
22 174-4452 Steering encoder plate 1
23 174-4453 Steering motor 1
24 174-4454 Auto steering lower shaft 1
26 174-4455 Steering motor mount 1
30 174-4456 Drive wiring plate 1
38 999-6729 Screw M4-.7 x 6mm cup point set black onyx 2
55 999-0910 Screw M8-1.25 x 25mm button head socket 4
58 999-0297 Bolt 1/4-20 x 1 hex head stainless steel 2
59 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel 1
62 999-0190 Nut 1/4-20 hex plain finish 10
63 999-0016 Washer 1/4 flat plain finish 20
66 274-9796 Bolt 1
68 999-0998 Washer #10 flat stainless steel 3
69 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated 10
71 274-9795 Nut 3
72 174-4457 Drive wheel 1
73 174-5728 Retaining ring 2
75a 274-0267 CHAIN MASTER LINK #35 1 (OEM)
75b 991-0106 Master link 1 (NON-OEM)
76 174-1895 Bearing 1
77 999-0035 Washer 3/8 x 1 1/2 fender 2
79 999-1049 Washer 1/4 split lock zinc plated 2
