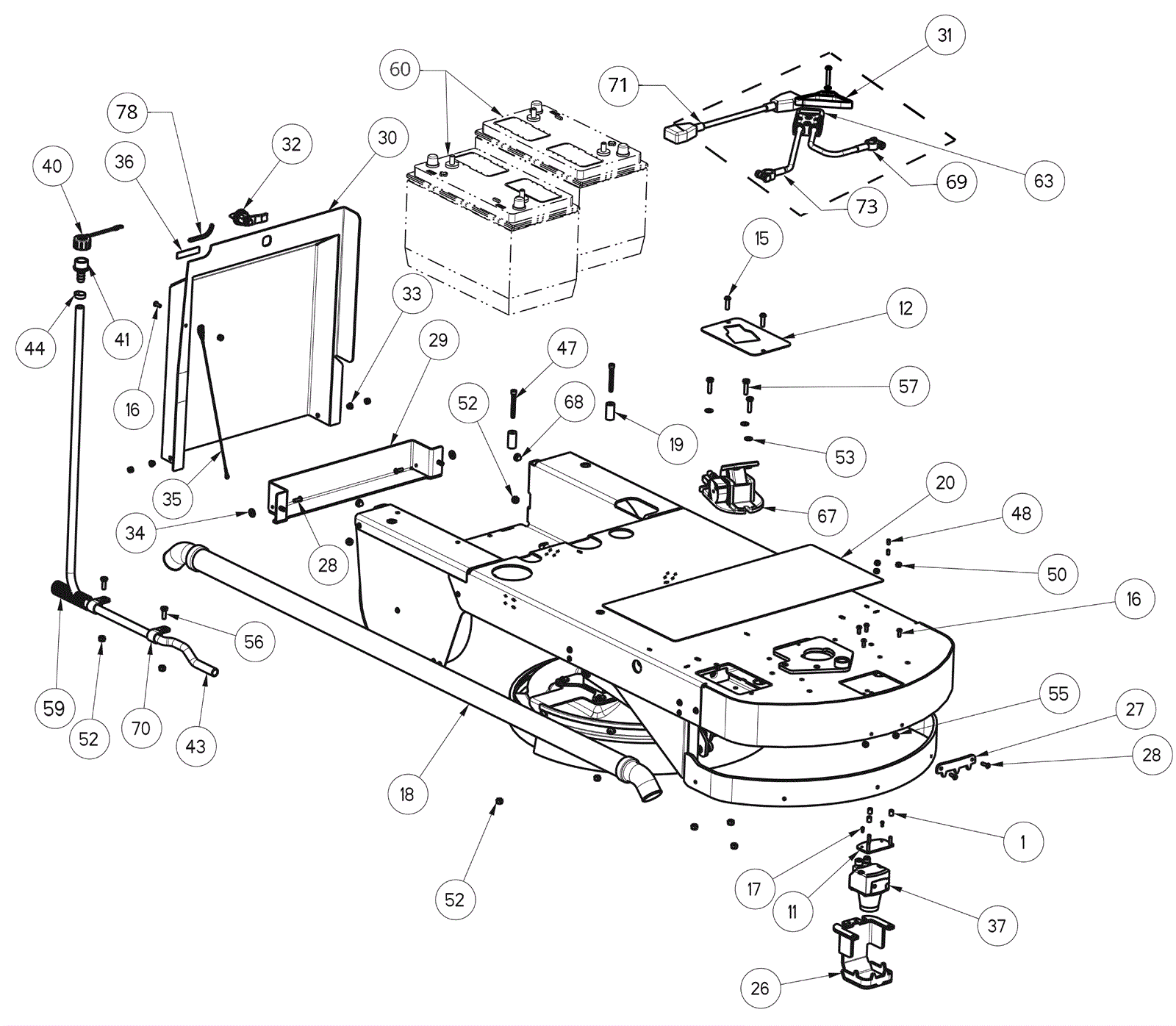

MAXRIDE 20 ROBOSCRUB Upper Frame Assembly

#PartDescriptionPriceReqNotesAvailability
1 374-2284 Compression spring $1.02 3 usually ships 4-14 days
11 174-4435 Lidar adjustment plate $25.07 1 usually ships 4-14 days
12 174-4436 Throttle cover plate $22.31 1 usually ships 4-14 days
15 999-6726 Screw 1/4-20 x 7/8 button head socket cap black oxide $0.99 8 ships same day
16 999-6727 Screw 10-24 x 1/2 button head socket cap black oxide $0.99 19 ships same day
17 174-4445 Screw M3-.5 x 8mm button head socket cap nylon patch SS $6.23 2 usually ships 4-14 days
18 174-4440 Vacuum hose (clear) $26.52 1 ships same day
19 174-4441 Nylon spacer 1/4 x 5/8 x 1 1/4 $2.47 2 usually ships 4-14 days
20 174-4442 Anti skid tread $11.29 1 usually ships 4-14 days
26 174-3701 Lower lidar guard $60.01 1 (after March 2020) ships same day
27 174-3700 Upper lidar guard $31.22 1 (after March 2020) usually ships 4-14 days
28 999-6764 Screw 10-24 x 5/8 button head socket cap black oxide $1.10 9 (after March 2020) ships same day
29 174-4438 Battery bracket $37.50 1 ships same day
30 174-6648 Rear cover weldment $121.68 1 ships same day
31 174-3708 Handle (red) $23.97 1 usually ships 4-14 days
32 174-3703 Quarter turn latch $11.99 1 usually ships 4-14 days
33 174-3702 Flange bushing $2.01 2 ships same day
34 174-3707 Thrust bearing $3.73 2 ships same day
35 174-3706 Nylon coated lanyard $8.79 1 ships same day
36 174-3704 Cable pass through decal $6.88 1 ships same day
37 174-3699 Planar LIDAR $3,992.89 1 (Swivel to make horizontal or vertical mount) ships same day
40 174-1859 Breather cap with lanyard assembly $8.33 1 ships same day
41 174-1860 1/2 inch hose barb garden hose fitting $0.86 1 ships same day
43 174-1861 Hose 1/2 x 45 inch (clear) $16.66 1 ships same day
44 997-2001 Hose clamp $2.42 1 ships same day
47 174-5226 Screw 1/4-20 x 1 3/4 socket cap steel plated $2.26 2 usually ships 1-5 days
48 999-0321 Screw 10-32 x 3/8 pan head slotted zinc plated $0.99 2 ships same day
50 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 5 ships same day
52 999-0190 Nut 1/4-20 hex plain finish $0.99 13 ships same day
53 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 5 ships same day
55 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 22 ships same day
56 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated $0.99 2 ships same day
57 999-0297 Bolt 1/4-20 x 1 hex head stainless steel $0.99 3 ships same day
59 174-4444 Stainless steel compression spring $7.32 1 usually ships 4-14 days
60 162-0123 12V 215Ah AGM battery - DISCOVER ONLY $933.07 2 usually ships 5-20 days
63 162-5032 175amp charger plug only (red) SB175 $10.66 1 ships same day
67 174-1863 Floor throttle pedal assembly $139.22 1 usually ships 4-14 days
68 174-1868 Rubber bumper 1/4 x 1/8 inch $1.40 2 ships same day
69 174-4447 4 awg battery cable (red) $17.05 1 usually ships 4-14 days
70 174-1864 11/16 inch cable clamp $3.85 2 ships same day
71 174-4449 Battery jumper cable (4 awg) $12.34 1 ships same day
73 174-4448 4awg battery cable (black) $17.07 1 ships same day
78 174-3705 Slotted grommet edging $2.06 1 usually ships 4-14 days
N/S 174-4434 24V charger (dry/agm - discover) $609.52 1 ships same day
N/S 274-0693 DECAL-CONNECT TO CHARGER $4.54 1 ships same day
