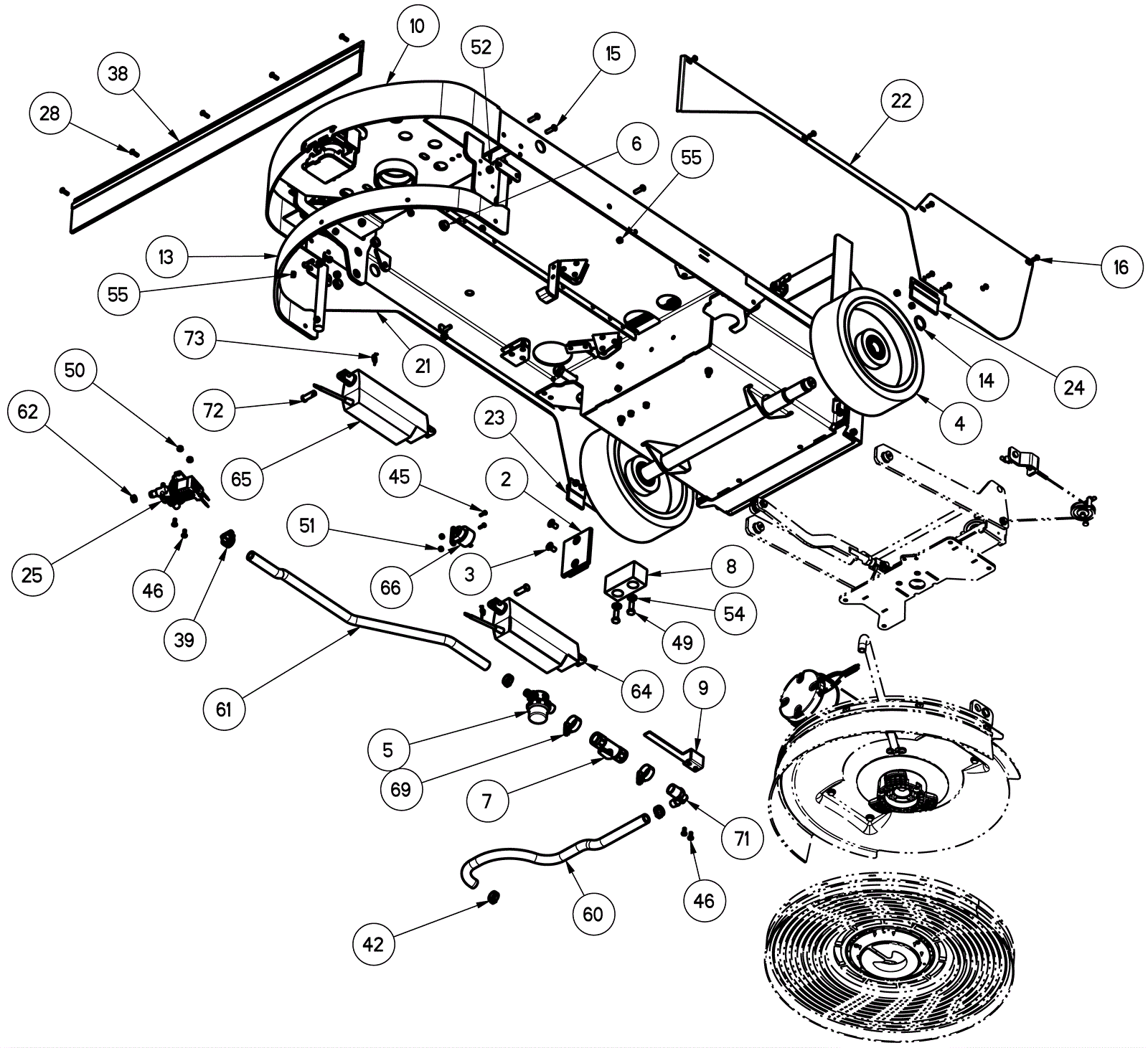

Lower Frame Assembly

#PartDescription ReqNotesAvailability
2 174-1072 Slide block 1
3 999-1444 Screw 5/16-18 x 5/8 flat socket head stainless steel 2
4 174-1101 Wheel 254 x 80 mm 2
5 174-1102 Filter 1/2 x 1/2 inch 1
6 174-1103 1/2 inch flange bushing 3
7 174-1104 Ball valve 1/2 x 1/2 inch 1
8 174-1107 Pivot block 1
9 174-1108 Ball valve and filter mounting plate 1
10 174-4426 Frame weldment 1
13 174-4427 Front guard weldment 1
14 174-4428 Retaining ring 2
15 999-6726 Screw 1/4-20 x 7/8 button head socket cap black oxide 8
16 999-6727 Screw 10-24 x 1/2 button head socket cap black oxide 19
21 174-4429 Right hand guard 1
22 174-4430 Left hand guard 1
23 174-4431 Right guard brush strip 1
24 174-4432 Left guard brush strip 1
25 174-4433 Solution solenoid valve 1
28 999-6764 Screw 10-24 x 5/8 button head socket cap black oxide 9
38 174-6620 Front brush 1
39 174-6621 Hose clamp 1
42 174-8254 Hose clamp 4
45 999-0382 Screw 6-32 x 1/2 pan head slotted zinc plated 2
46 999-0723 Screw 10-32 x 1/2 pan head slotted stainless steel 4
49 999-0401 Bolt 5/16-18 x 7/8 hex head grade 5 zinc plated 2
50 999-0086 Nut 10-32 nylon insert lock zinc plated 5
51 999-0337 Nut 6-32 nylon insert lock stainless steel 2
52 999-0190 Nut 1/4-20 hex plain finish 13
54 999-0024 Washer 5/16 flat stainless steel 2
55 999-0442 Nut 10-24 nylon insert lock stainless steel 22
60 174-1361 Hose 1/2 x 18 1/2 inch 1
61 174-1365 Hose 1/2 x 22 inch 1
62 174-1510 1/2 inch spacer 1
64 174-6557 Deck actuator assembly with packard plug 1
65 174-1849 Squeegee actuator - 40mm stroke - 750 n force term 1
66 174-8682 Back up alarm 1
69 174-3516 Hose clamp 2
71 174-1851 90 degree elbow fitting 1
72 174-1852 Clevis pin 3/8 x 1 1/8 zinc plated 2
73 174-1578 3/8 rue ring cotter pin 2
