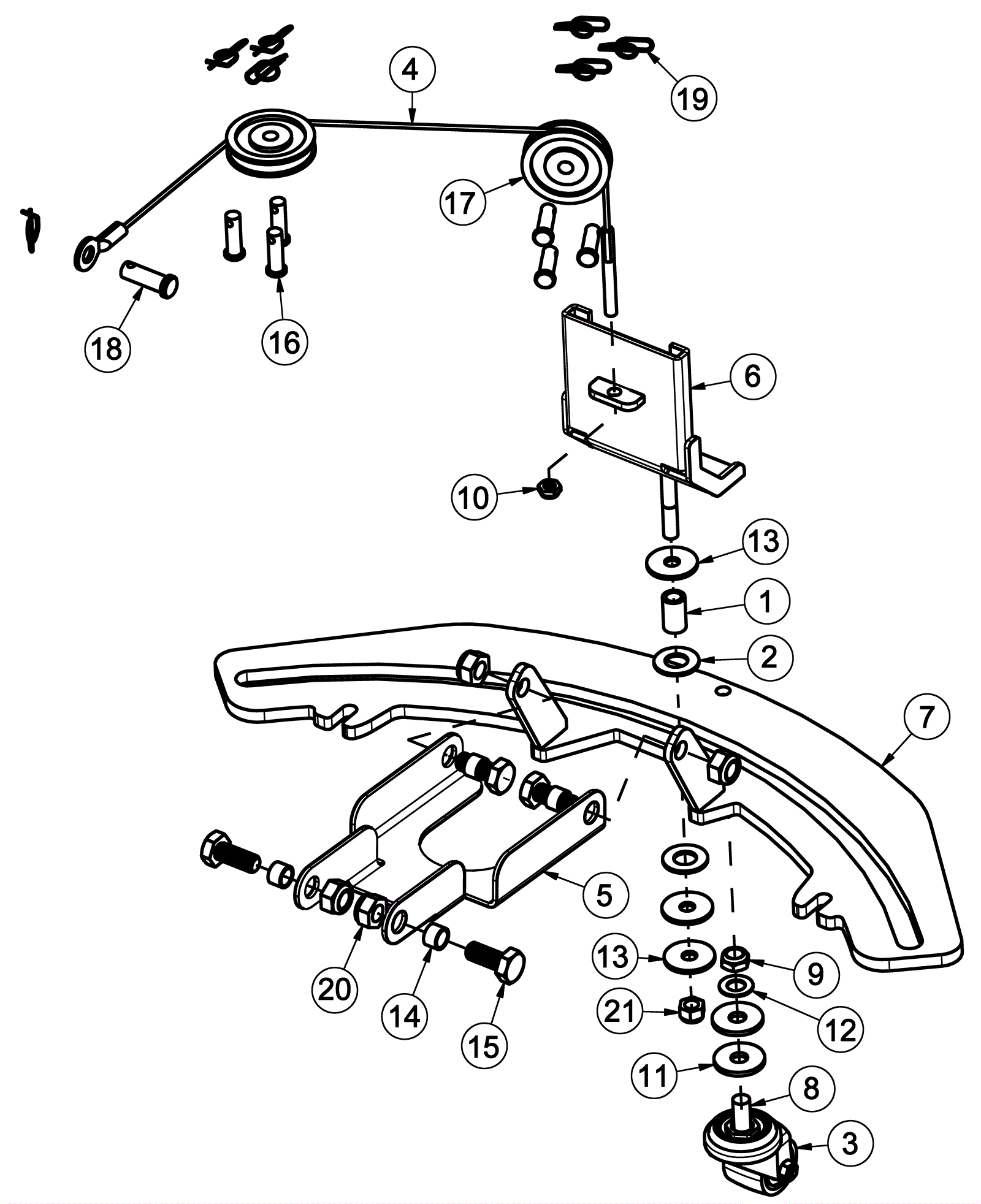

MAX RIDE 20 Squeegee Lift Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-3653 Nylon spacer $1.08 1 ships same day
2 174-3654 Washer 1 nylon $1.08 2 ships same day
3 174-3637 Caster $17.60 1 ships same day
4 174-3655 Squeegee cable $62.01 1 ships same day
6 174-3657 Slider weldment $72.68 1 usually ships 4-14 days
7 174-4531 20 inch squeegee weldment upgrade kit (See SN note) $563.83 1 (Kit only used to replace old style assembly for units before SN 20030025. All other units should use 174-4534.) (Includes 174-7230, 174-4533, and 174-3657) usually ships 4-14 days
8 999-0594 Screw 3/8-16 x 1 socket head alloy plain finish $1.14 1 ships same day
9 999-0324 Nut 3/8-16 nylon insert lock jam zinc plated $0.99 1 ships same day
10 174-3659 Nut 1/4-20 jam nyloc stainless steel $1.03 1 ships same day
11 174-8169 Washer flat .37 x 1.12 x .10 $2.57 2 ships same day
12 174-3203 Washer 13/32 x 1/32 flat stainless steel $1.08 1 ships same day
13 174-3644 Washer fender m8 x 24 stainless steel $1.08 3 ships same day
14 174-3660 Spacer 13/32 x 1/2 x 21/64 inch $1.73 4 ships same day
15 174-3661 Hex head screw #M10-1.50 x 25 stainless steel $4.06 4 ships same day
16 174-0190 Clevis pin $1.23 6 ships same day
17 174-3632 Plastic groove pulley 2 x 1/4 inches $10.04 2 ships same day
18 174-1852 Clevis pin 3/8 x 1 1/8 zinc plated $1.45 1 ships same day
19 174-1578 3/8 rue ring cotter pin $1.81 7 ships same day
20 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 4 ships same day
21 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 1 ships same day
