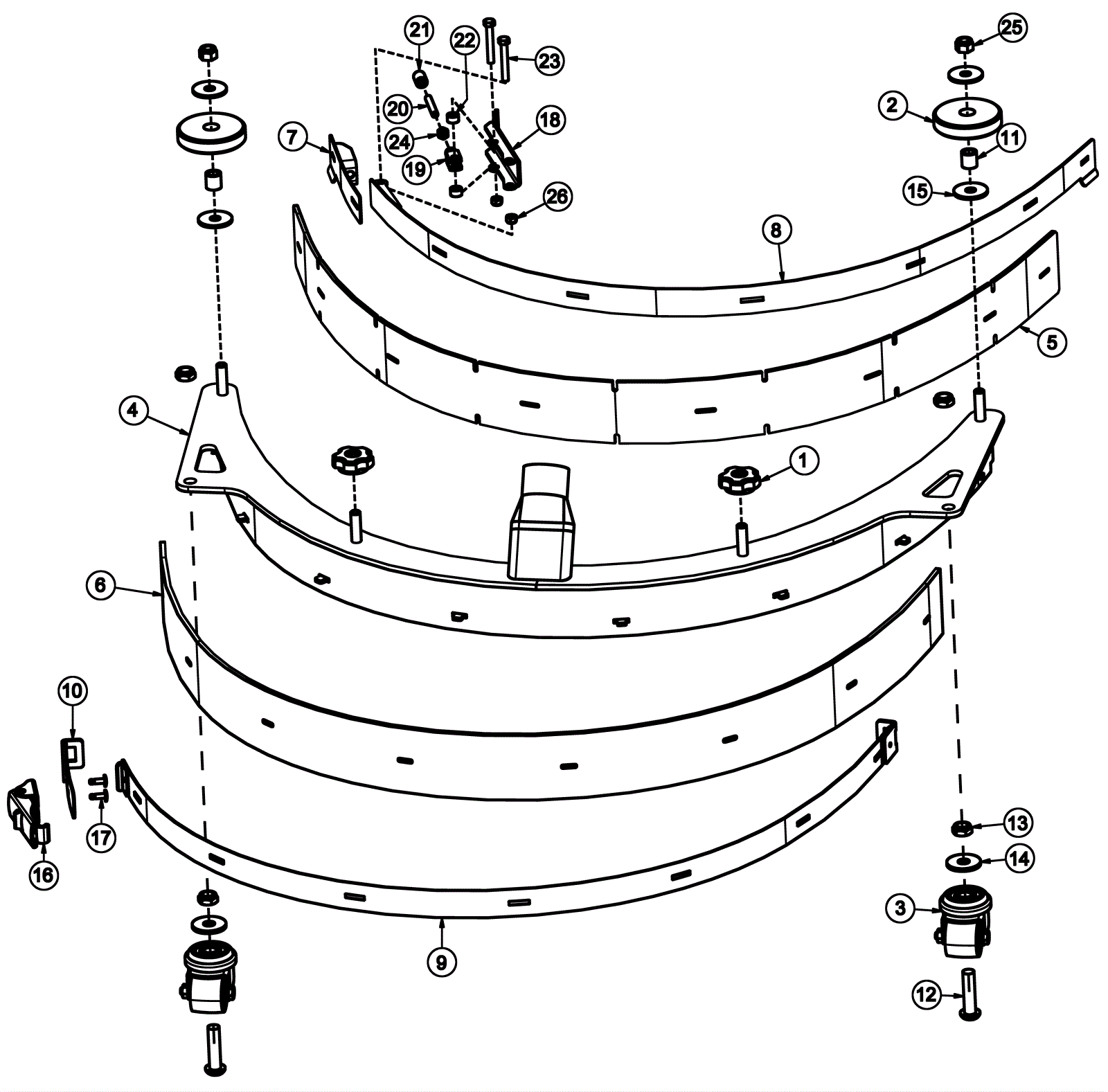

MAX RIDE 20 Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
2 174-3636 Squeegee roller $8.28 2 ships same day
3 174-3637 Caster $17.60 2 ships same day
4 174-3638 20 inch squeegee weldment $399.51 1 usually ships 4-14 days
5 174-9157 Squeegee blade 20 inch inner $29.79 1 ships same day
6 174-9158 Squeegee blade 20 inch outer $41.25 1 ships same day
7 174-3639 Left hand inner band weldment $26.67 1 usually ships 4-14 days
8 174-3640 Right hand inner band $57.44 1 usually ships 4-14 days
9 374-3047 Squeegee band assembly $107.94 1 (includes 10) ships same day
10 374-3047 Squeegee band assembly $107.94 1 (includes 9) ships same day
11 174-3643 Spacer 21/64 x 1/2 x 1/2 stainless steel $5.19 2 ships same day
12 999-0473 Screw 3/8-16 x 1 1/2 socket head shoulder steel $4.03 2 ships same day
13 999-0324 Nut 3/8-16 nylon insert lock jam zinc plated $0.99 4 ships same day
14 174-8169 Washer flat .37 x 1.12 x .10 $2.57 2 ships same day
15 174-3644 Washer fender m8 x 24 stainless steel $1.08 4 ships same day
16 174-3645 Under center latch $41.21 1 ships same day
17 174-3646 Rivet blind 5/32 x 1/8 grip stainless steel $1.08 2 ships same day
18 174-3647 Stainless steel body latch $13.58 1 ships same day
19 174-3648 Clevis M5-0.8 $14.22 1 ships same day
20 174-3649 Threaded rod M5-0.8 $10.33 1 ships same day
21 174-3650 Nose rod $19.26 1 ships same day
22 174-3651 Spacer $9.40 2 usually ships 4-14 days
23 174-3652 Screw hex head #M5-0.8 x 35 stainless steel $1.08 2 ships same day
24 999-0740 Nut M5-.8 hex stainless steel $0.99 1 ships same day
25 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 2 ships same day
26 999-0495 Nut M5-.8 nylon insert lock zinc plated $0.99 2 ships same day
