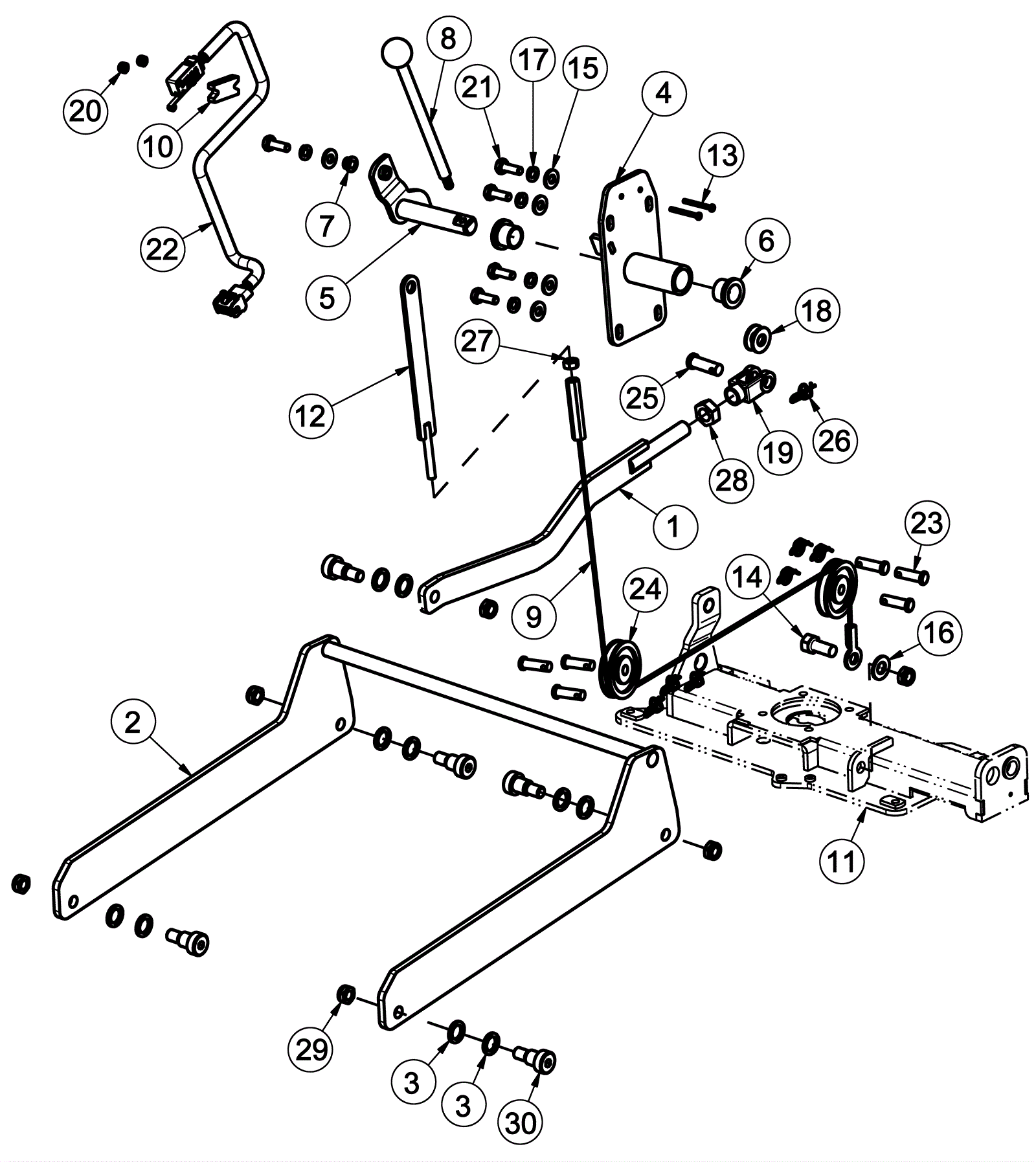

MAX RIDE 20 Scrub Head Lift Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-3620 20 inch deck adjust link weldment $35.90 1 usually ships 4-14 days
2 174-3621 20 inch scrubhead arm weldment $139.34 1 usually ships 4-14 days
3 174-3622 Nylon flat washer 1/2 x 3/4 x 5/8 $1.08 10 ships same day
4 174-3623 20 inch head lift weldment $51.87 1 usually ships 4-14 days
5 174-3624 Head lift shaft weldment $241.32 1 usually ships 4-14 days
6 174-3625 5/8 inch flanged bushing $1.13 2 usually ships 4-14 days
7 174-3626 1/4 inch flanged bushing $0.93 1 usually ships 4-14 days
8 174-3627 Lever handle $241.32 1 usually ships 4-14 days
9 174-3628 Cable 35 3/4 inch $60.31 1 usually ships 4-14 days
10 174-3629 Switch bracket $3.00 1 usually ships 4-14 days
11 174-3610 20 inch scrubdeck frame $266.56 1 usually ships 4-14 days
12 174-3630 Deck lift end weldment $22.66 1 usually ships 4-14 days
13 374-1056 SCR-MC 4-40 X 1.25 STL Z $0.97 1 usually ships 1-5 days
14 999-0494 Bolt 5/16-18 x 7/8 hex head stainless steel $0.99 1 ships same day
15 999-0016 Washer 1/4 flat plain finish $0.99 5 ships same day
16 999-0120 Washer 3/8 SAE flat $0.99 1 ships same day
17 999-0060 Washer 1/4 split lock plain finish $0.99 5 ships same day
18 174-8193 Washer .390 x .880 x .062 flat $0.86 2 usually ships 4-14 days
19 174-7162 Yoke clevis with pin $16.43 1 usually ships 1-5 days
20 174-3631 Nut #4-40 nyloc stainless steel $0.97 2 usually ships 4-14 days
21 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated $0.99 5 ships same day
22 174-8264 Switch assembly (with pack conduit) $29.58 1 usually ships 4-14 days
23 174-0190 Clevis pin $1.23 6 ships same day
24 174-3632 Plastic groove pulley 2 x 1/4 inches $10.04 2 ships same day
25 174-1852 Clevis pin 3/8 x 1 1/8 zinc plated $1.45 1 ships same day
26 174-1578 3/8 rue ring cotter pin $1.81 7 ships same day
27 174-3633 Hex nut 1/4-28 zinc plated $1.20 1 usually ships 4-14 days
28 999-0714 Nut 1/2-20 hex jam stainless steel $1.25 1 ships same day
29 999-0324 Nut 3/8-16 nylon insert lock jam zinc plated $0.99 6 ships same day
30 174-5325 Bolt 1/2 x 1/2 shoulder $2.77 5 usually ships 4-14 days
