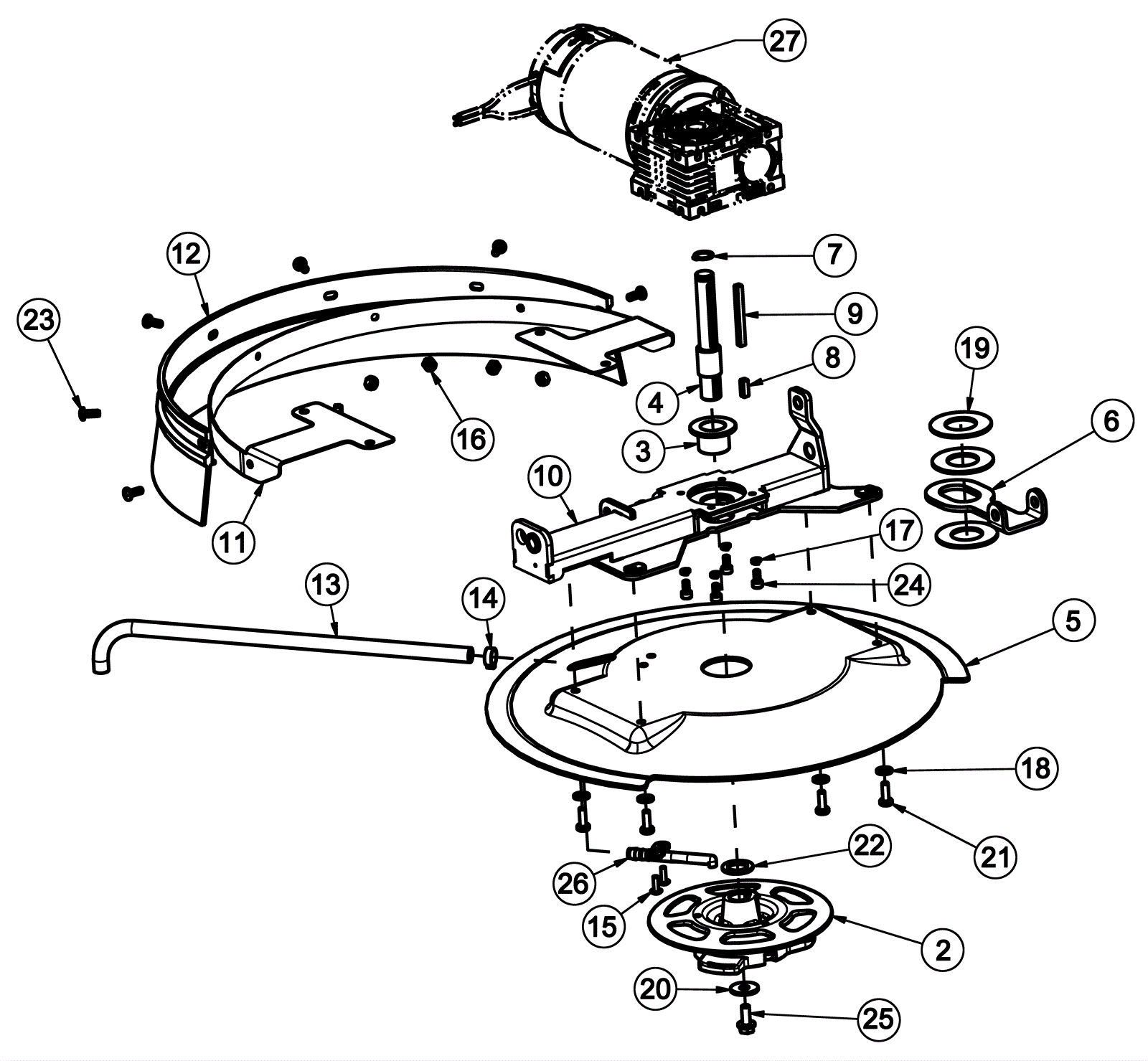

MAX RIDE 20 Scrub Head Assembly

#PartDescriptionPriceReqNotesAvailability
2 274-5508 HUB ASSEMBLY, DISC DECK $60.00 1 ships same day
3 174-3603 Flange bushing $8.89 1 usually ships 4-14 days
4 174-6640 Right angle drive stub shaft $103.12 1 ships same day
5 174-3605 20 inch scrub head cover $56.74 1 ships same day
6 174-3606 Pivot ring $18.74 1 usually ships 4-14 days
7 174-3607 Retaining ring $1.08 1 ships same day
8 174-3608 Square keyway 6 x 6 x .7mm $4.36 1 usually ships 4-14 days
9 174-3609 Square keyway 6 x 6 x 2.625mm $4.79 1 ships same day
10 174-3610 20 inch scrubdeck frame $266.56 1 usually ships 4-14 days
11 174-3611 Deck skirt bracket $106.32 1 ships same day
12 174-3612 Deck brush skirt $84.01 1 ships same day
13 174-3613 Hose 3/8 x 16 1/2 inches $4.98 1 usually ships 4-14 days
14 997-2001 Hose clamp $2.42 1 ships same day
15 999-1070 Screw 10-32 x 5/8 truss head phillips stainless steel $0.99 2 ships same day
16 999-0190 Nut 1/4-20 hex plain finish $0.99 6 ships same day
17 174-3614 Washer 1/4 split lock stainless steel $1.08 4 usually ships 4-14 days
18 999-0016 Washer 1/4 flat plain finish $0.99 4 ships same day
19 174-3615 Washer 1 9/32 flat zinc $2.33 3 ships same day
20 174-8169 Washer flat .37 x 1.12 x .10 $2.57 1 ships same day
21 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated $0.99 4 ships same day
22 999-1134 Washer 1 1/4 flat stainless steel $6.01 1 ships same day
23 999-0567 Screw 1/4-20 x 5/8 pan head phillips stainless steel $0.99 6 ships same day
24 174-3617 Screw-socket head cap screw M6-1.0 x 12mm zinc plated $1.08 4 usually ships 4-14 days
25 174-7184 Bolt M8-1.25 x 20mm hex head flange precote zinc plated $1.80 1 usually ships 4-14 days
26 174-8314 Solution feed nozzle $2.10 1 ships same day
27a 174-3618 Amer brush gear motor $623.42 1 (sport) usually ships 4-14 days
27b 174-3619 Amer brush gear motor $629.41 1 (eco) (eco) ships same day
