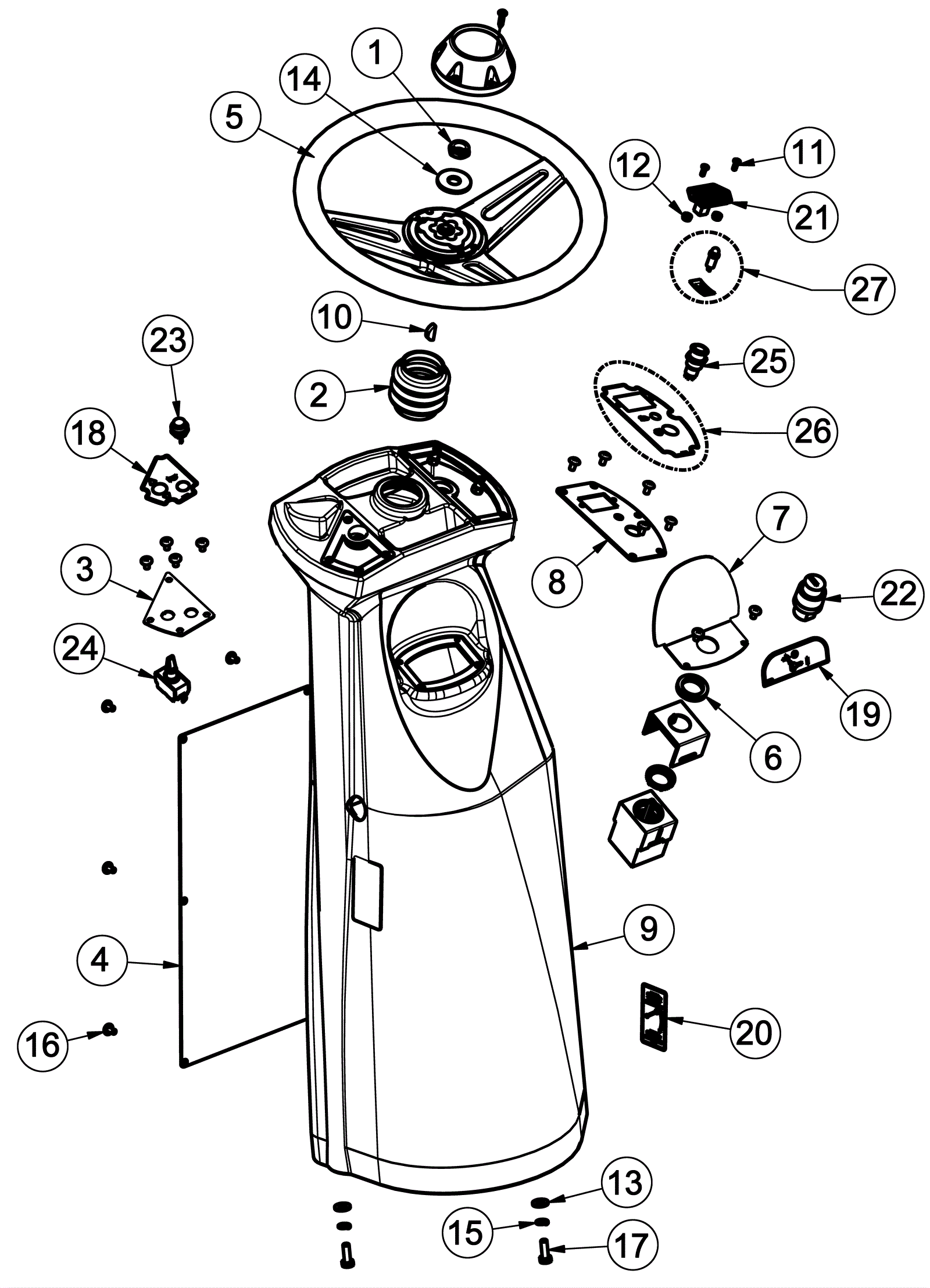

MAX RIDE 20 Steering Coloumn Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0182 Nut 1/2-20 hex plain finish $0.99 1 ships same day
2 274-3207 BOOT - STEERING SHAFT, SCV 2426 $16.32 1 usually ships 4-14 days
3 174-2987 Left hand forward and reverse selector assembly $9.39 1 usually ships 4-14 days
4 174-2988 Steering console front panel $28.75 1 usually ships 4-14 days
5 174-2989 12 3/4 inch steering wheel $102.71 1 ships same day
6 174-2990 3/16 thick pvc key switch spacer $3.87 1 usually ships 4-14 days
7 174-2991 Key switch center panel $15.00 1 usually ships 4-14 days
8 174-2992 Right hand function select panel $28.25 1 usually ships 4-14 days
9 174-2993 Steering console $121.82 1 usually ships 4-14 days
10 174-2748 Woodruff key 3/16 x 3/4 $1.38 1 ships same day
11 174-5638 Screw 6-32 x 3/8 steel plated $0.97 2 usually ships 1-5 days
12 999-0337 Nut 6-32 nylon insert lock stainless steel $0.99 2 ships same day
13 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
14 999-0187 Washer 1/2 flat plain finish $0.99 1 ships same day
15 999-0060 Washer 1/4 split lock plain finish $0.99 2 ships same day
16 999-0585 Screw 10-24 x 3/8 truss head slotted stainless steel $0.99 17 ships same day
17 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated $0.99 2 ships same day
18 174-2994 Decal forward and reverse selector $5.62 1 usually ships 4-14 days
19 174-2995 Center panel key switch decal $4.16 1 usually ships 4-14 days
20 174-2996 Brush lift decal $4.72 1 usually ships 4-14 days
21 274-6252 Battery gauge $70.34 1 usually ships 4-14 days
22 174-2997 Keyswitch assembly $168.22 1 usually ships 4-14 days
23 174-8777 Horn switch $35.26 1 usually ships 1-5 days
24 174-2998 Toggle switch $17.96 1 usually ships 4-14 days
25 174-2999 Orange led push button switch $113.71 1 usually ships 4-14 days
26a 174-3000 Function selector decal $10.23 1 (eco) usually ships 4-14 days
26b 174-3600 Function selector decal $5.52 1 (sport) usually ships 4-14 days
27a 174-3601 Led amber lamp assembly $17.35 1 (sport only) usually ships 4-14 days
27b 174-3602 Tinnerman clip $0.97 1 (sport only) usually ships 4-14 days
