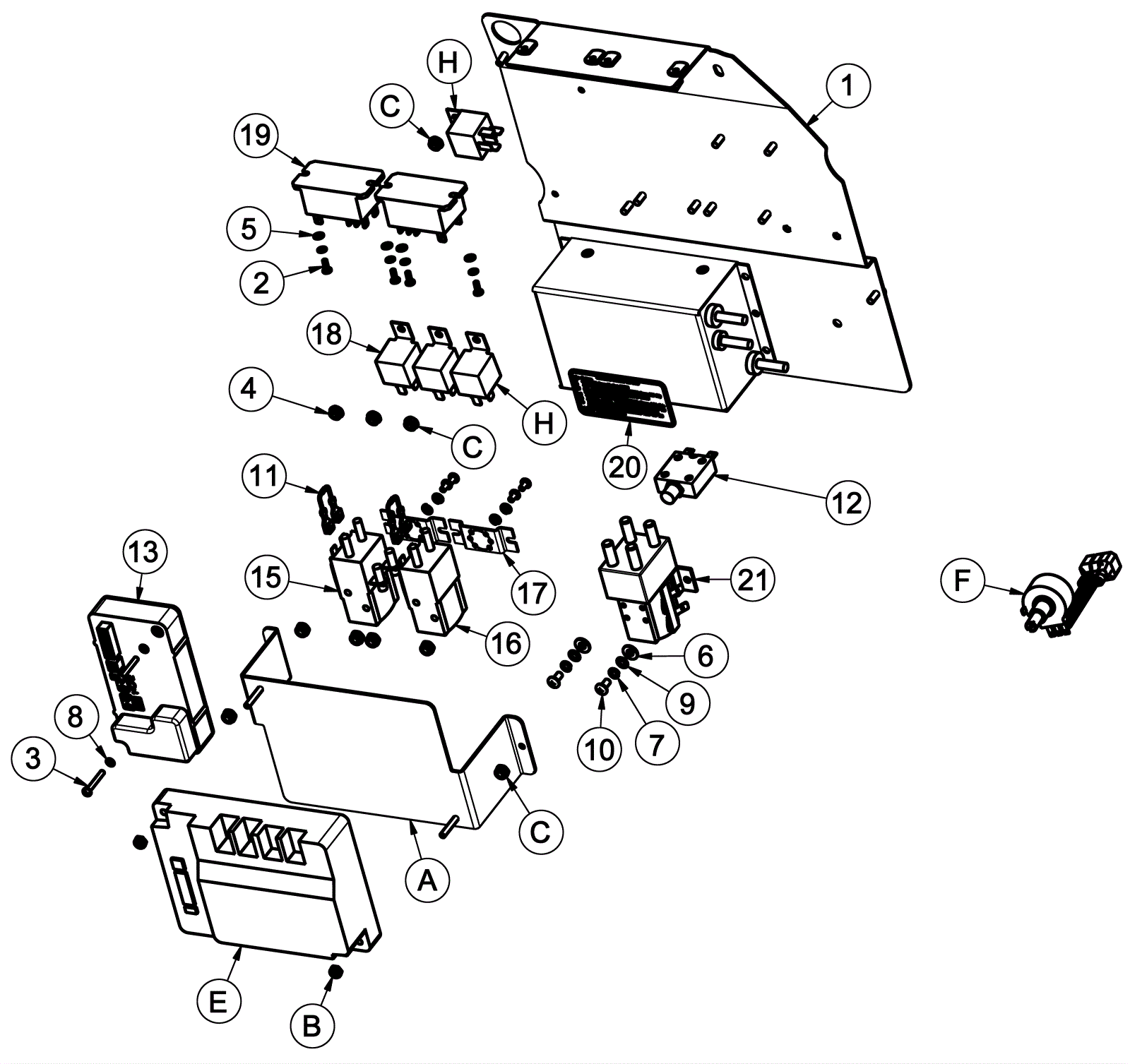

MAX RIDE 20 Electrical Panel Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-2977 Electric chassis panel $125.38 1 usually ships 4-14 days
2 174-5638 Screw 6-32 x 3/8 steel plated $0.97 4 usually ships 1-5 days
3 999-0511 Screw 6-32 x 1 pan head phillips zinc plated $0.99 2 ships same day
4 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 8 ships same day
5 174-5230 Washer #6 flat $1.20 4 usually ships 4-14 days
6 999-0006 Washer 3/16 flat zinc plated $0.99 2 ships same day
7 174-5259 Washer #10 helical $0.97 2 usually ships 4-14 days
8 174-5232 Washer #6 internal tooth locking $0.97 6 usually ships 4-14 days
9 999-0089 Washer #10 internal star lock zinc plated $0.99 2 ships same day
10 999-0817 Screw 10-24 x 5/8 round head zinc plated $0.99 2 ships same day
11 174-0230 Diode assembly $3.49 2 ships same day
12 174-2978 1 amp circuit breaker $13.08 1 usually ships 4-14 days
13 174-2979 70 amp I drive $214.61 1 usually ships 4-14 days
15 174-8375 24V brush motor relay 2 pole 80 amp $50.50 1 usually ships 4-14 days
16 174-8389 24V vacuum motor relay 1 pole 80 amp $47.74 1 usually ships 4-14 days
17 274-0493 BRACKET, RELAY 747615 & 747616 $4.46 2 usually ships 1-5 days
19 174-2981 40 amp dpdt relay $28.02 2 usually ships 4-14 days
20 174-2982 Label for chargers 957760 and 957761 $1.76 1 usually ships 4-14 days
21 174-8373 24V main relay 2 pole 125 amp $79.92 1 usually ships 4-14 days
A 174-2983 Bracket I-drive sport $27.87 1 usually ships 4-14 days
B 999-0357 Nut 8-32 nylon insert lock stainless steel $0.99 2 ships same day
C 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 3 ships same day
E 174-2984 180 amp I-drive $449.70 1 usually ships 4-14 days
F 174-2985 Potentiometer wire assembly $89.13 1 usually ships 4-14 days
