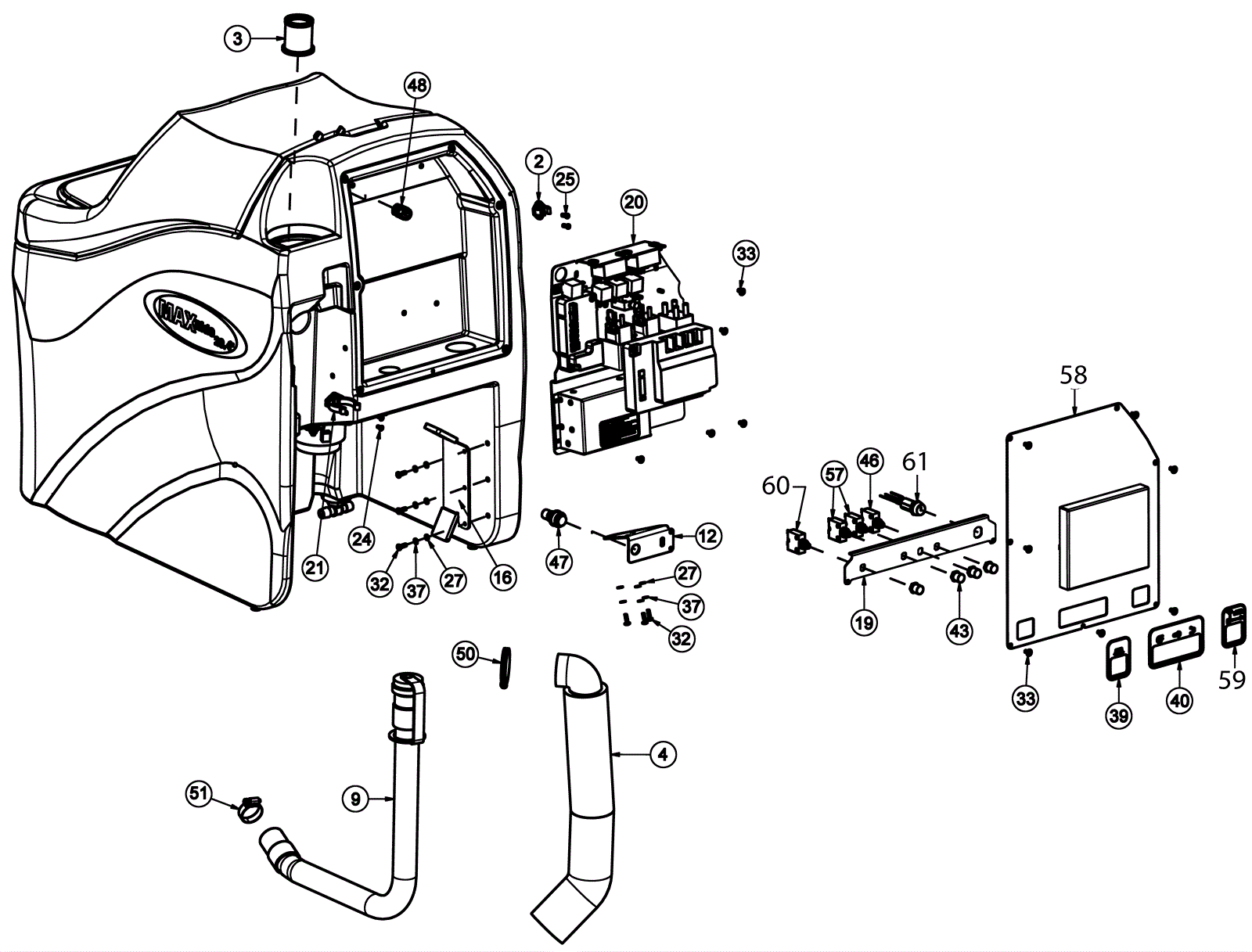

MAX RIDE 20 Tank Assembly 2

#PartDescriptionPriceReqNotesAvailability
2 174-8263 Clip $3.85 1 ships same day
3 174-8189 Fill port filter $13.35 1 usually ships 4-14 days
4 274-6003 MUFFLER-VAC MOTOR, SCV 24/26 $62.33 1 usually ships 4-14 days
9a 174-2958 Drain hose with cap 1 1/2 x 30 1/2 inch $45.93 1 ships same day
9b 991-9184 HOSE ASSEMBLY (FANG20,20T,24T,26T,28T) $41.58 1 (NON-OEM) usually ships 5-16 days
12 174-2959 Rear cover latch bracket $16.15 1 usually ships 4-14 days
16 174-2960 Battery charger holder $20.93 1 usually ships 4-14 days
19 174-2961 Circuit breaker bracket $19.38 1 usually ships 4-14 days
20 174-2962 Electrical panel assembly $525.40 1 usually ships 4-14 days
21 174-5968 1 1/2 inch hose clip $5.07 1 ships same day
24 174-6229 Screw 8-32 x 3 3/4 flat head $1.10 2 ships same day
25 174-6388 Screw #10-16 x 1/2 hi/lo $1.08 2 usually ships 4-14 days
27 999-0412 Washer #8 SAE flat $0.99 6 ships same day
32 999-0615 Screw 10-24 x 5/8 truss head slotted stainless steel $0.99 10 ships same day
33 999-0585 Screw 10-24 x 3/8 truss head slotted stainless steel $0.99 12 ships same day
37 999-0089 Washer #10 internal star lock zinc plated $0.99 6 ships same day
39 174-2963 Brush motor decal $4.84 1 usually ships 4-14 days
40 174-2964 Vacuum and drive motor decal $5.45 1 usually ships 4-14 days
43 174-5824 Circuit breaker boot $5.95 4 usually ships 4-14 days
46 174-8165 Circuit breaker 4.0 amp (push button) $11.52 1 ships same day
47 174-8299 Charge status indicator $19.95 1 usually ships 4-14 days
48 274-0381 Strain relief $4.48 1 usually ships 4-14 days
50 174-1624 2 1/2 Hose clamp $1.02 1 usually ships 1-5 days
51 174-3354 Hose clamp $3.28 1 ships same day
57a 274-1163 30amp circuit breaker $5.37 2 usually ships 4-14 days
51b 991-1629 35amp circuit breaker $9.23 2 (NON-OEM) ships same day
58a 174-2965 Electrical box cover $30.65 1 (Eco) usually ships 4-14 days
58b 174-2966 Electrical box cover $104.48 1 (Sport) usually ships 4-14 days
59 174-2967 Brush motor decal $4.74 1 usually ships 4-14 days
60a 174-2968 30 amp circuit breaker $10.62 1 usually ships 4-14 days
60b 174-5812 Circuit breaker 50amp $31.15 1 usually ships 4-14 days
61 174-2969 Keyswitch assembly $45.42 1 usually ships 4-14 days
