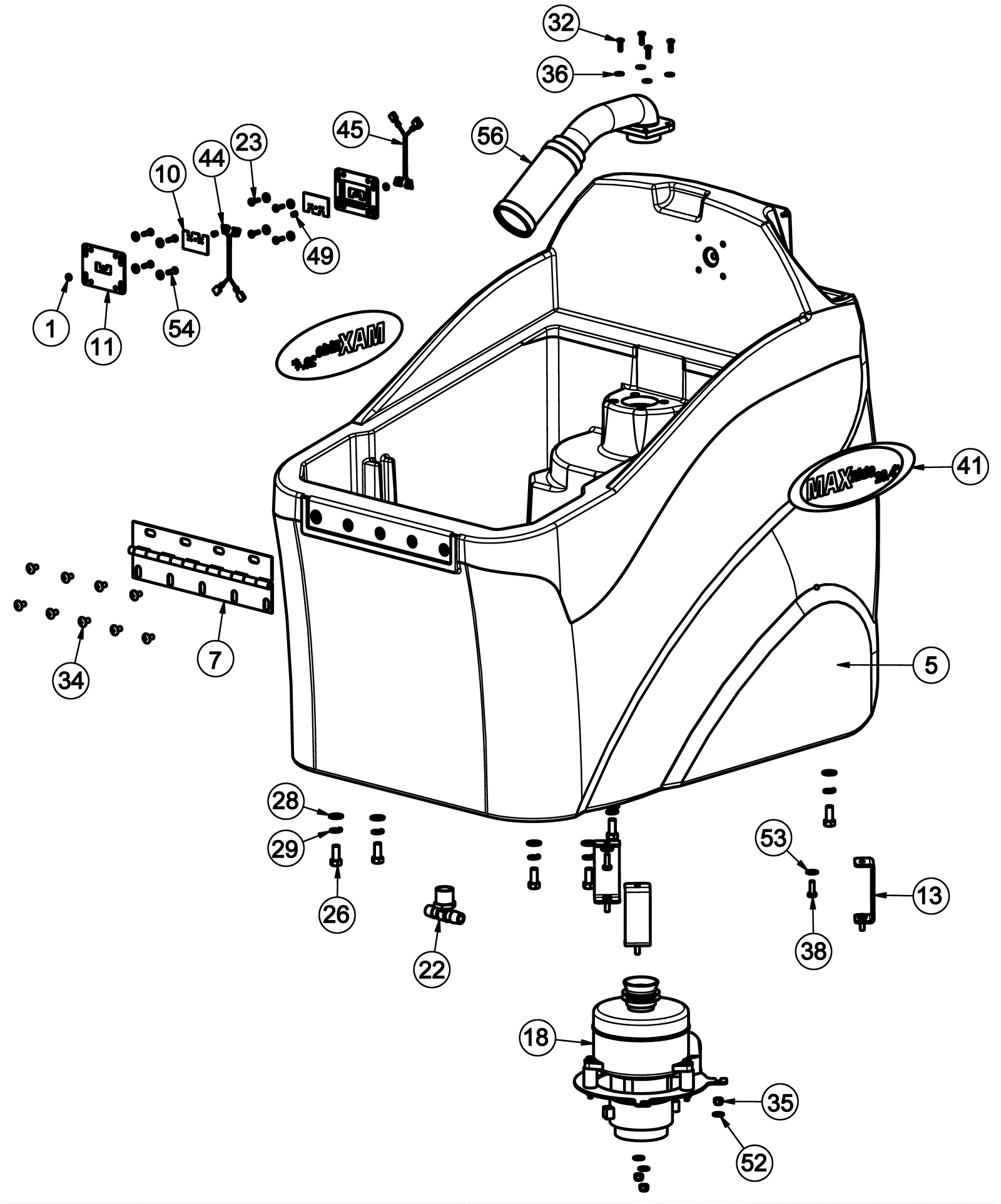

MAX RIDE 20 Tank Assembly 1

#PartDescriptionPriceReqNotesAvailability
1 174-1899 Rivet $1.40 2 ships same day
5 174-1970 Solution and recovery tank $396.75 1 usually ships 4-14 days
7 174-1974 Hinge $29.16 1 usually ships 4-14 days
10 174-1983 Interconnect insert plate NOT AVAILABLE - SEE NOTE $46.85 2 (This part is no longer available and is now split between - 174-6617 for the seat contact plate or 174-6618 for the tank contact plate ) usually ships 4-14 days
11 174-2951 Interconnect base plate (OBSOLETE) $11.30 2 (use either 174-6617 for the seat contact plate or 174-6618 for the tank contact plate) usually ships 4-14 days
13 174-2952 Vacuum motor pillar weldment $7.29 3 usually ships 4-14 days
18 174-2953 Vacuum and housing assembly $215.85 1 usually ships 4-14 days
22 174-8224 Fitting 1/2 barb 3/4 mpt $1.97 1 usually ships 4-14 days
23 999-0410 Screw 8-32 x 5/8 pan head slotted zinc plated $0.99 4 ships same day
26 999-0494 Bolt 5/16-18 x 7/8 hex head stainless steel $0.99 6 ships same day
28 999-0120 Washer 3/8 SAE flat $0.99 6 ships same day
29 999-0034 Washer 3/8 split lock plain finish $1.82 6 ships same day
32 999-0615 Screw 10-24 x 5/8 truss head slotted stainless steel $0.99 10 ships same day
34 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel $1.03 9 ships same day
35 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 3 ships same day
36 999-0998 Washer #10 flat stainless steel $0.99 19 ships same day
38 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated $0.99 3 ships same day
41 174-2954 Max-ride 20 decal $8.80 2 usually ships 4-14 days
44 174-2955 Seat switch wire assembly $10.17 1 ships same day
45 174-2956 Seat swiitch connection wire assembly $11.14 1 usually ships 4-14 days
49 174-2051 Pop rivet $0.97 2 usually ships 4-14 days
52 999-0016 Washer 1/4 flat plain finish $0.99 3 ships same day
53 374-0938 WASHER-CONICAL SPRING 1/4 $0.97 3 usually ships 4-14 days
54 174-2957 Screw 10-16 x 3/4 pan head hi/lo stainless steel $0.97 11 usually ships 4-14 days
56 N/A Not available Call for price 1 (screened float filter unit) usually ships 3-26 days
