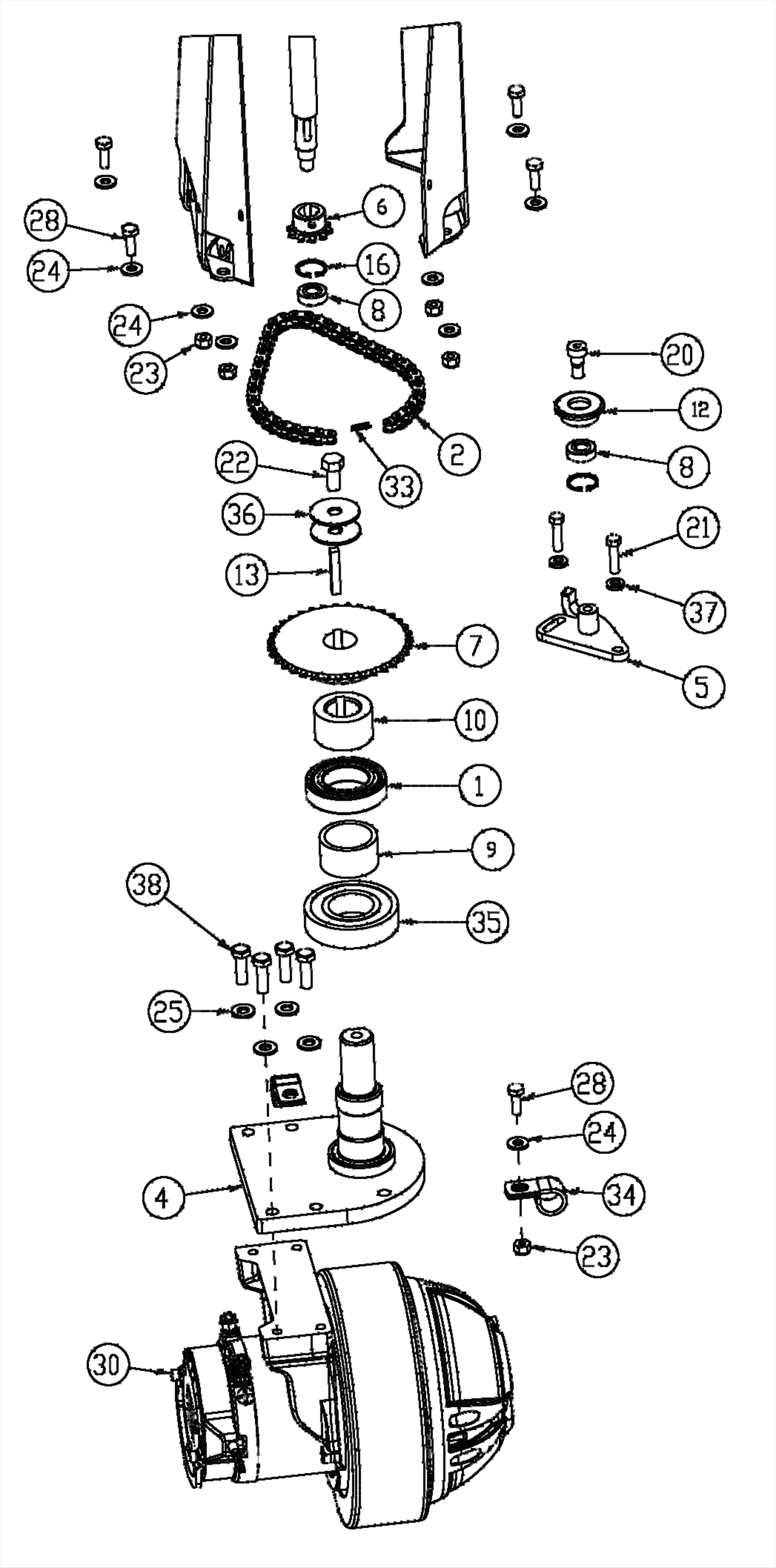

MAX RIDE 20 Tower Assembly 2

#PartDescriptionPriceReqNotesAvailability
1 174-1876 Ball bearing 35mm x 62mm x 14mm $9.32 1 usually ships 4-14 days
2 174-1877 #35 chain (45 links) $8.58 1 ships same day
4 174-1878 Steering spindle weldment $125.24 1 usually ships 4-14 days
5 174-1879 Chain tension bracket $94.68 1 usually ships 4-14 days
6 174-1880 10 toothed sprocket $7.83 1 usually ships 4-14 days
7 174-1881 35 toothed sprocket $56.45 1 usually ships 4-14 days
8 174-1883 Ball bearing $2.65 2 usually ships 4-14 days
9 174-1882 Spacer $22.46 1 usually ships 4-14 days
10 174-1884 Steering stop pivot $28.21 1 usually ships 4-14 days
12 174-1890 Chain tension guide $73.04 1 usually ships 4-14 days
13 174-1891 Square key 1/4 x 1/4 x 1 1/2 inch $2.05 1 usually ships 4-14 days
16 174-1892 Retaining ring $0.97 2 usually ships 4-14 days
20 174-1893 Bolt 3/8 x 5/16 shoulder (black) $3.16 1 usually ships 4-14 days
21 999-0297 Bolt 1/4-20 x 1 hex head stainless steel $0.99 2 ships same day
22 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel $0.99 1 ships same day
23 999-0190 Nut 1/4-20 hex plain finish $0.99 5 ships same day
24 999-0016 Washer 1/4 flat plain finish $0.99 11 ships same day
25 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
28 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated $0.99 5 ships same day
30 174-1894 Wheel drive, 24v 300w $1,102.23 1 usually ships 4-14 days
33 274-0267 CHAIN MASTER LINK #35 $1.25 1 usually ships 4-14 days
34 174-1864 11/16 inch cable clamp $3.85 2 ships same day
35 174-1895 Bearing $25.16 1 usually ships 4-14 days
36 999-0035 Washer 3/8 x 1 1/2 fender $0.99 2 ships same day
37 999-1049 Washer 1/4 split lock zinc plated $0.99 2 ships same day
38 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 4 ships same day
