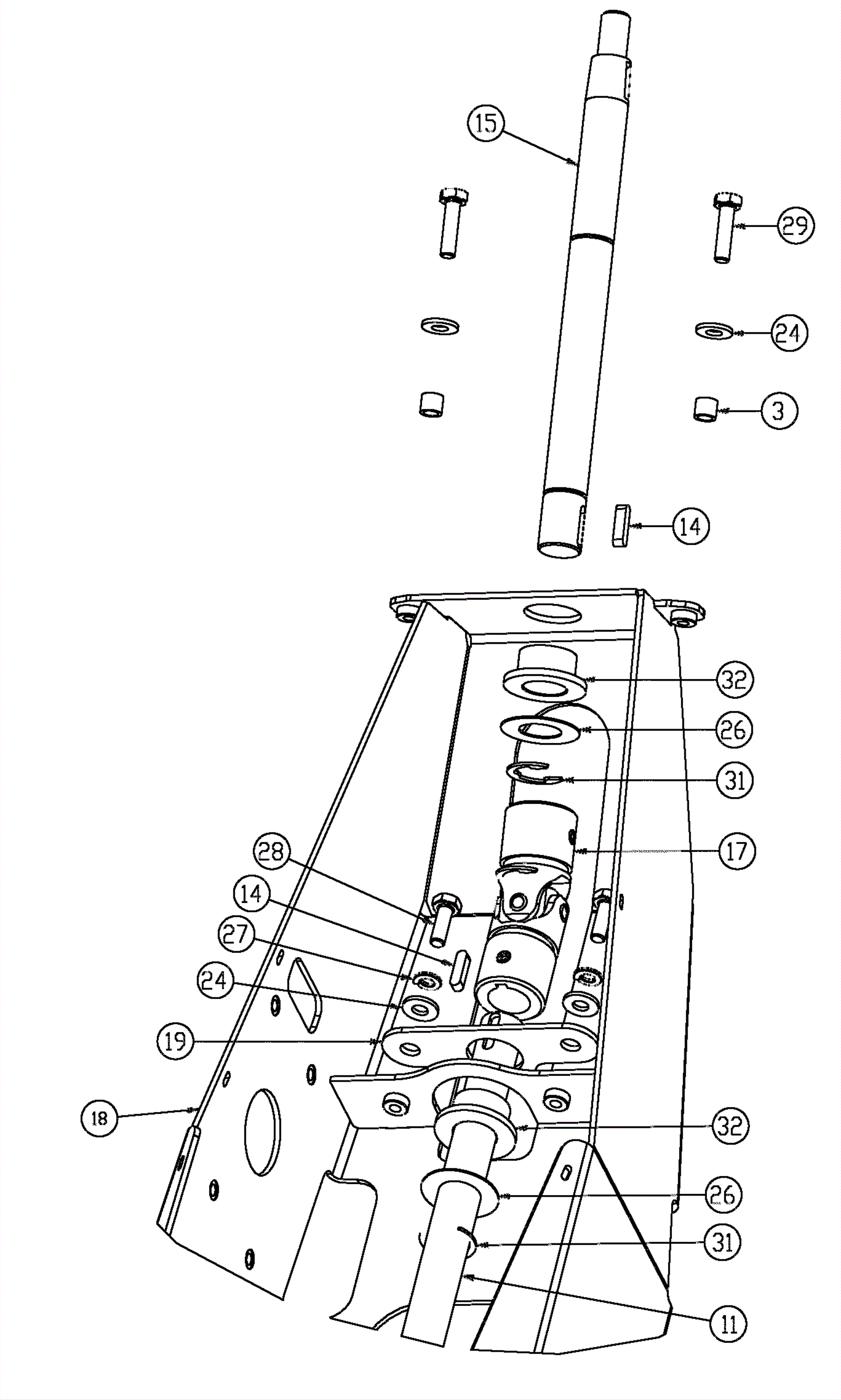

MAX RIDE 20 Tower Assembly 1

#PartDescriptionPriceReqNotesAvailability
3 174-1869 Spacer17/64 inch $4.55 2 usually ships 4-14 days
11 174-1870 Lower steering shaft $25.90 1 usually ships 4-14 days
14 174-1871 Square key 3/16 x 3/16 x 3/4 inch $4.16 3 ships same day
15 174-1872 Upper steering shaft $21.48 1 usually ships 4-14 days
17 174-1873 25 degree U-joint $162.20 1 ships same day
18 174-1874 Steering tower weldment $284.93 1 usually ships 4-14 days
19 174-1875 Steering bearing plate $13.39 1 usually ships 4-14 days
24 999-0016 Washer 1/4 flat plain finish $0.99 4 ships same day
26 999-9114 Washer 3/4 flat stainless steel $1.58 2 ships same day
27 999-0060 Washer 1/4 split lock plain finish $0.99 7 ships same day
28 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated $0.99 2 ships same day
29 999-0297 Bolt 1/4-20 x 1 hex head stainless steel $0.99 2 ships same day
31 174-5728 Retaining ring $1.33 3 usually ships 4-14 days
32 174-1265 Flanged bushing $5.03 2 usually ships 1-5 days
