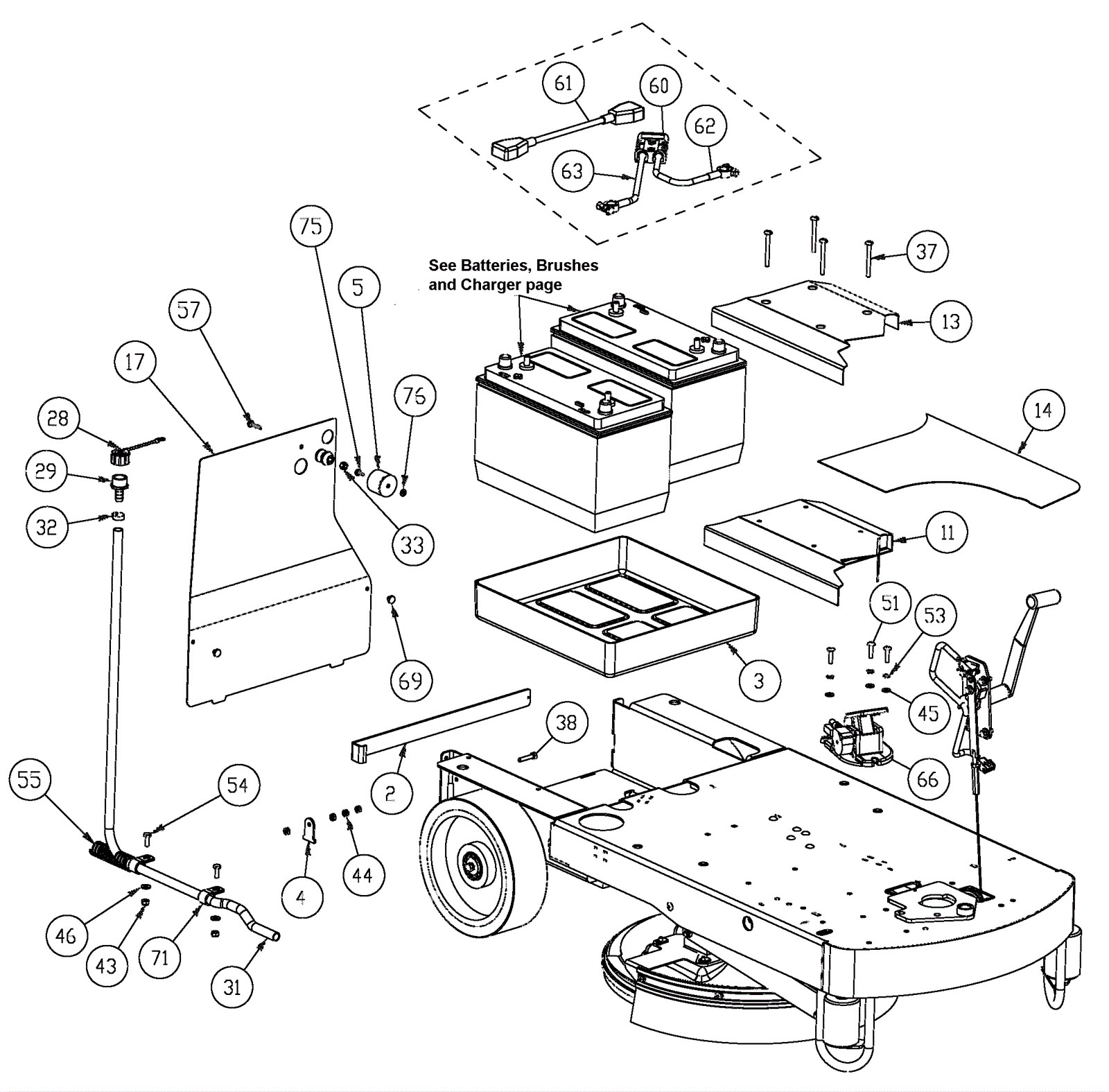

MAX RIDE 20 Frame Assembly 2

#PartDescriptionPriceReqNotesAvailability
2 174-1853 Battery bar $15.60 1 usually ships 4-14 days
3 174-1854 Battery box $44.82 1 usually ships 4-14 days
4 174-1855 Battery bar retainer $10.50 1 usually ships 4-14 days
5 174-1866 Rubber latch $14.47 1 usually ships 4-14 days
11 174-1856 20 inch floor plate riser weldment $70.13 1 usually ships 4-14 days
13 174-1857 20 inch riser anti skid tread $10.13 1 usually ships 4-14 days
14 174-1858 20 inch frame anti skid tread $15.01 1 usually ships 4-14 days
17 174-1106 20 inch rear battery box cover $34.96 1 usually ships 4-14 days
28 174-1859 Breather cap with lanyard assembly $10.41 1 ships same day
29 174-1860 1/2 inch hose barb garden hose fitting $1.08 1 ships same day
31 174-1861 Hose 1/2 x 45 inch (clear) $20.82 1 ships same day
32 997-2001 Hose clamp $2.42 1 ships same day
33 999-9131 Nut M6 x 1 nylon lock stainless steel $0.99 1 ships same day
37 174-1862 Screw truss head 1/4-20 x 2 1/2 inch stainless steel $1.57 4 usually ships 4-14 days
38 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated $0.99 1 ships same day
43 999-0190 Nut 1/4-20 hex plain finish $0.99 2 ships same day
44 174-1943 Nut nyloc 1/4 x 20 x 1/2 $0.97 4 usually ships 4-14 days
45 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 3 ships same day
46 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
51 999-1382 Screw 1/4-20 x 1 truss head phillips $1.16 4 ships same day
53 999-0632 Washer 1/4 split lock stainless steel $0.99 3 ships same day
54 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated $0.99 2 ships same day
55 174-4444 Stainless steel compression spring $7.32 1 usually ships 4-14 days
57 999-6728 Screw M6-1 x 25mm hex head zinc plated $0.99 1 ships same day
60 162-5032 175amp charger plug only (red) SB175 $10.66 1 usually ships 5-16 days
61 174-8196 Jumper cable assembly red 4G 12 inch $20.16 1 usually ships 4-14 days
62 174-0648 Red battery cable $19.23 1 usually ships 4-14 days
63 174-0649 Black battery cable $19.23 1 usually ships 4-14 days
66 174-1863 Floor throttle pedal assembly $174.03 1 usually ships 4-14 days
69 174-1868 Rubber bumper 1/4 x 1/8 inch $1.40 2 ships same day
71 174-1864 11/16 inch cable clamp $3.85 2 ships same day
75 999-9116 Screw M6-1 x 12mm hex head stainless steel $0.99 1 ships same day
76 999-1261 Washer M6 flat stainless steel $0.99 1 ships same day
