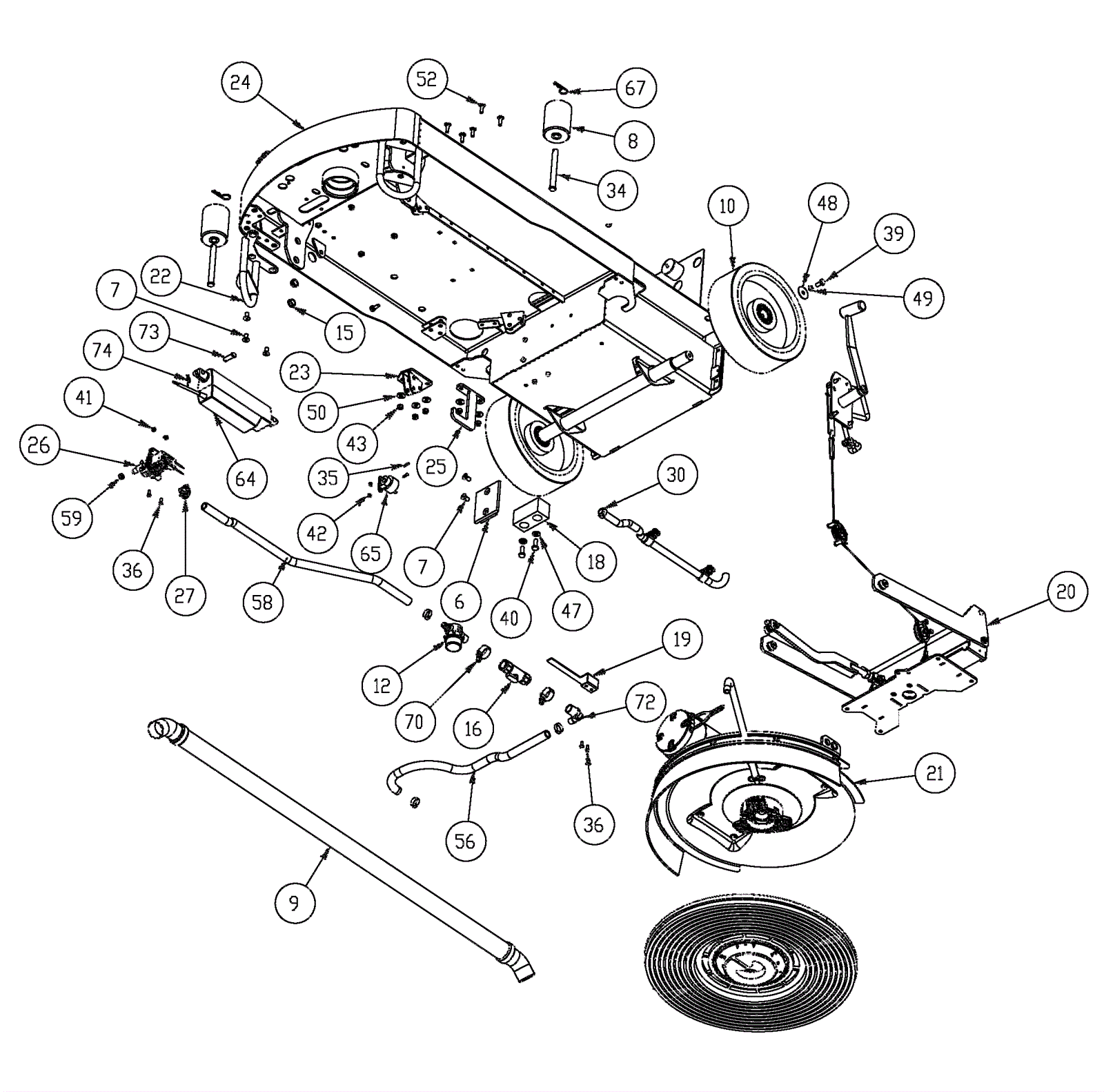

MAX RIDE 20 Frame Assembly 1

#PartDescriptionPriceReqNotesAvailability
6 174-1072 Slide block $26.21 1 ships same day
8 174-1078 2 1/2 inch bumper roller $10.62 2 usually ships 4-14 days
9 174-1088 Vacuum hose 1 1/2 x 43 inch (clear) $35.06 1 usually ships 4-14 days
10 174-1101 Wheel 254 x 80 mm $115.87 2 usually ships 4-14 days
12 174-1102 Filter 1/2 x 1/2 inch $10.40 1 ships same day
15 174-1103 1/2 inch flange bushing $1.13 3 usually ships 4-14 days
16 174-1104 Ball valve 1/2 x 1/2 inch $18.08 1 ships same day
18 174-1107 Pivot block $29.22 1 usually ships 4-14 days
19 174-1108 Ball valve and filter mounting plate $21.92 1 usually ships 4-14 days
20 174-1109 20 inch scrub head lift group (OBSOLETE) $435.69 1 usually ships 4-14 days
21 174-1110 20 inch scrub head group $455.32 1 usually ships 4-14 days
22 274-9829 Tip bar $101.37 1 usually ships 1-5 days
23 274-9830 Pulley cover $47.57 1 usually ships 1-5 days
24 174-1105 20 inch frame weldment $1,264.34 1 usually ships 4-14 days
25 274-9831 Head stop $52.59 1 usually ships 1-5 days
26 174-4433 Solution solenoid valve $264.62 1 ships same day
27 174-6621 Hose clamp $1.24 1 ships same day
30 174-8254 Hose clamp $1.24 4 ships same day
34 174-1340 Clevis pin 1/2 x 4 1/2 inch zinc plated $7.71 2 usually ships 4-14 days
35 999-0382 Screw 6-32 x 1/2 pan head slotted zinc plated $0.99 2 ships same day
36 999-0723 Screw 10-32 x 1/2 pan head slotted stainless steel $0.99 4 ships same day
39 174-5772 Bolt 5/16-18 x 5/8 hex head $0.97 2 usually ships 1-5 days
40 999-0401 Bolt 5/16-18 x 7/8 hex head grade 5 zinc plated $0.99 2 ships same day
41 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 2 ships same day
42 999-0337 Nut 6-32 nylon insert lock stainless steel $0.99 2 ships same day
43 999-0190 Nut 1/4-20 hex plain finish $0.99 5 ships same day
47 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
48 174-2255 Washer 5/16 x 7/8 x 3/64 flat $0.97 2 usually ships 4-14 days
49 999-0028 Washer 5/16 split lock plain finish $0.99 2 ships same day
50 999-0024 Washer 5/16 flat stainless steel $1.34 5 ships same day
52 274-9832 Bolt 1/4-20 x .875 SS $1.19 5 usually ships 1-5 days
56 174-1361 Hose 1/2 x 18 1/2 inch $5.80 1 ships same day
58 174-1365 Hose 1/2 x 22 inch $33.04 1 ships same day
59 174-1510 1/2 inch spacer $1.20 1 usually ships 4-14 days
64 174-1849 Squeegee actuator - 40mm stroke - 750 n force term $295.42 1 ships same day
65 174-8682 Back up alarm $56.91 1 usually ships 4-14 days
67 174-0200 Cotter pin $1.20 2 usually ships 4-14 days
70 174-3516 Hose clamp $1.27 2 usually ships 4-14 days
72 174-1851 90 degree elbow fitting $5.02 1 usually ships 4-14 days
73 174-1852 Clevis pin 3/8 x 1 1/8 zinc plated $1.45 1 ships same day
74 174-1578 3/8 rue ring cotter pin $1.81 1 ships same day
