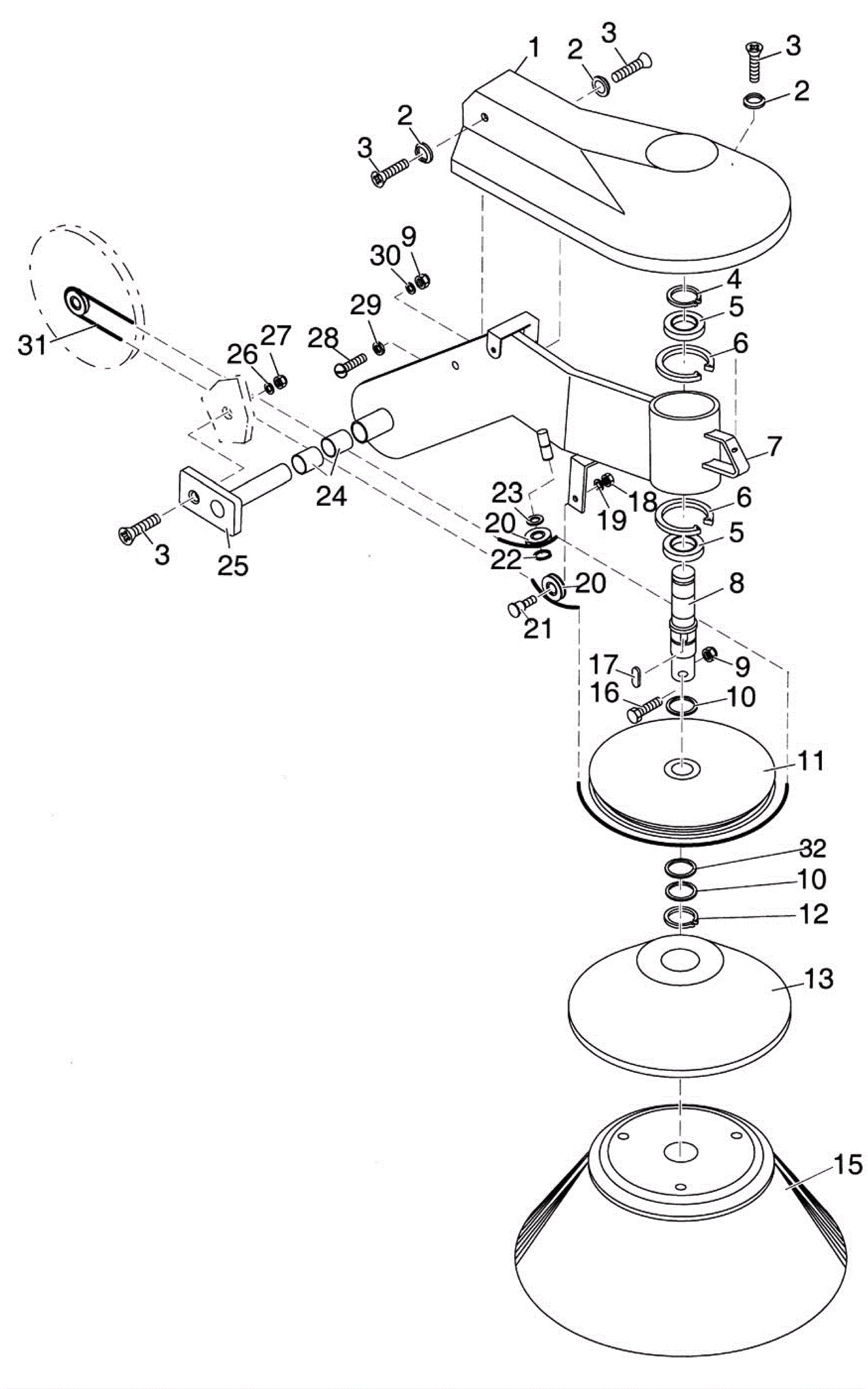

HM35BQP Side Brush Assembly

#PartDescriptionPriceReqNotesAvailability
1 274-5648 COVER $99.73 1 usually ships 1-5 days
2 374-0530 WASHER $0.90 3 usually ships 1-5 days
3 374-0567 SCREW $0.95 4 usually ships 1-5 days
4 274-0637 CIRCLIP $1.10 1 usually ships 1-5 days
5 274-4028 GROOVED BALL BEARING 32mm $25.68 2 usually ships 1-5 days
6 374-2833 RETAINING RING $1.10 2 usually ships 1-5 days
7 274-8284 BRUSH ARM $322.93 1 usually ships 1-5 days
8 274-4601 SHAFT $25.51 1 usually ships 1-5 days
9 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 2 ships same day
10 374-0538 WASHER, ADJUSTING $1.10 2 usually ships 1-5 days
11 274-7118 BELT-PULLEY $68.68 1 usually ships 1-5 days
12 374-0534 RETAINING RING $0.95 1 usually ships 1-5 days
13 274-1442 Brush plate $7.00 1 ships same day
15 274-7556 BROOM-SIDE $124.86 1 ships same day
16 374-0509 BOLT, HEX $0.95 1 usually ships 1-5 days
17 374-1516 KEY-PARALLEL $1.10 1 usually ships 1-5 days
18 999-1308 Nut M6-1 hex stainless steel $0.99 1 ships same day
19 374-0516 LOCK WASHER $0.95 1 usually ships 1-5 days
20 274-1684 PULLEY-ROPE $19.95 2 usually ships 1-5 days
21 274-2385 BOLT $3.21 1 usually ships 1-5 days
22 174-9175 Retaining ring (OBSOLETE) Call for price 1 usually ships 4-14 days
23 374-0731 WSR $0.95 1 usually ships 1-5 days
24 274-0867 BUSHING $1.37 2 usually ships 1-5 days
25 274-4597 PLATE $19.67 1 usually ships 1-5 days
26 374-0986 WASHER $0.95 1 usually ships 1-5 days
27 999-0495 Nut M5-.8 nylon insert lock zinc plated $0.99 1 ships same day
28 174-9182 Screw (OBSOLETE) Call for price 1 usually ships 4-14 days
29 374-0833 NUT $2.58 1 usually ships 1-5 days
30 999-1261 Washer M6 flat stainless steel $0.99 1 ships same day
31 174-7218 Round belt $29.06 1 usually ships 4-14 days
32 274-2300 SHIM RING (WASHER) $0.95 1 usually ships 1-5 days
