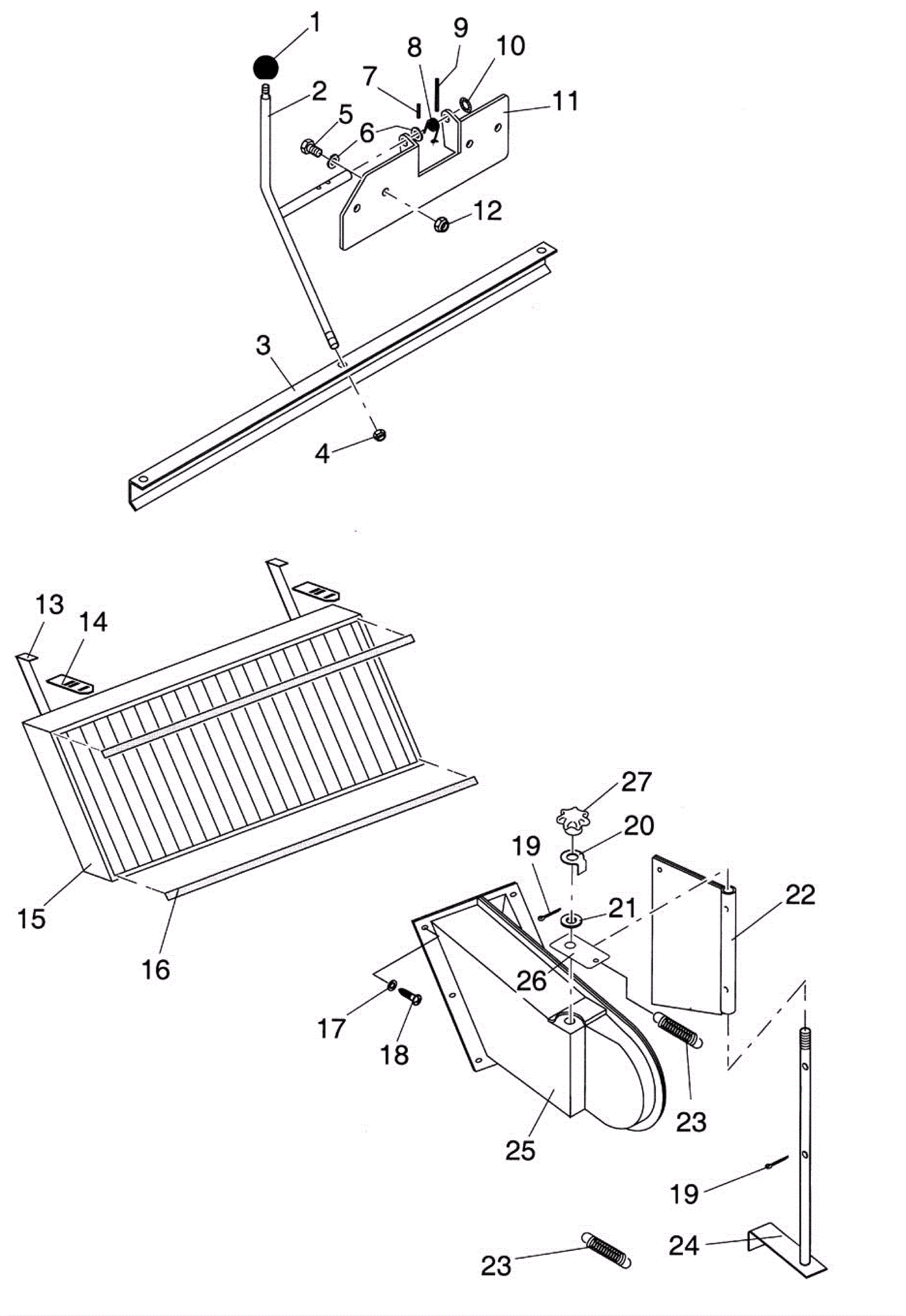

HM35BQP Filter Assembly

#PartDescriptionPriceReqNotesAvailability
1 274-0657 BUTTON $1.43 1 usually ships 1-5 days
2 274-6211 LEVER $35.59 1 usually ships 1-5 days
3 274-3467 BAR-PROFILE $4.65 1 usually ships 1-5 days
4 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 1 ships same day
5 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 4 ships same day
6 999-9097 Washer M8 flat stainless steel $0.99 5 ships same day
7 374-0646 PIN-SPRING $0.95 1 usually ships 1-5 days
8 274-3320 SPRING-LEG $3.32 1 usually ships 1-5 days
9 374-1537 PIN-SPRING $0.95 1 usually ships 1-5 days
10 174-9180 Washer retaining $2.19 1 usually ships 4-14 days
11 274-3717 BRACKET $6.72 1 usually ships 1-5 days
12 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 4 usually ships 11-24 days
13 274-1637 TIGHTENING STRAP $11.22 2 usually ships 1-5 days
14 274-0912 BRACKET $12.75 2 usually ships 1-5 days
15 274-8910 FILTER $259.88 1 usually ships 4-14 days
16 274-0213 GASKET (SP) $4.15 2 usually ships 1-5 days
17 999-1261 Washer M6 flat stainless steel $0.99 6 ships same day
18 274-0057 TAPPING SCREW $0.95 6 usually ships 1-5 days
19 274-1400 COTTER PIN $3.57 2 usually ships 1-5 days
20 374-1539 LOCK PLATE 8.4 $0.95 1 usually ships 1-5 days
21 274-0387 SUPPORTING RING $0.95 1 usually ships 1-5 days
22 274-5369 FLAP $13.53 1 usually ships 1-5 days
23 374-1904 TENSION SPRING $5.91 2 usually ships 1-5 days
24 274-5821 LEVER $16.55 1 usually ships 1-5 days
25 174-2950 Suction channel (OBSOLETE) Call for price 1 usually ships 4-14 days
26 274-0568 PLATE $1.27 1 usually ships 1-5 days
27 374-0732 SCR-STAR HANDLE M8 $3.06 1 usually ships 1-5 days
