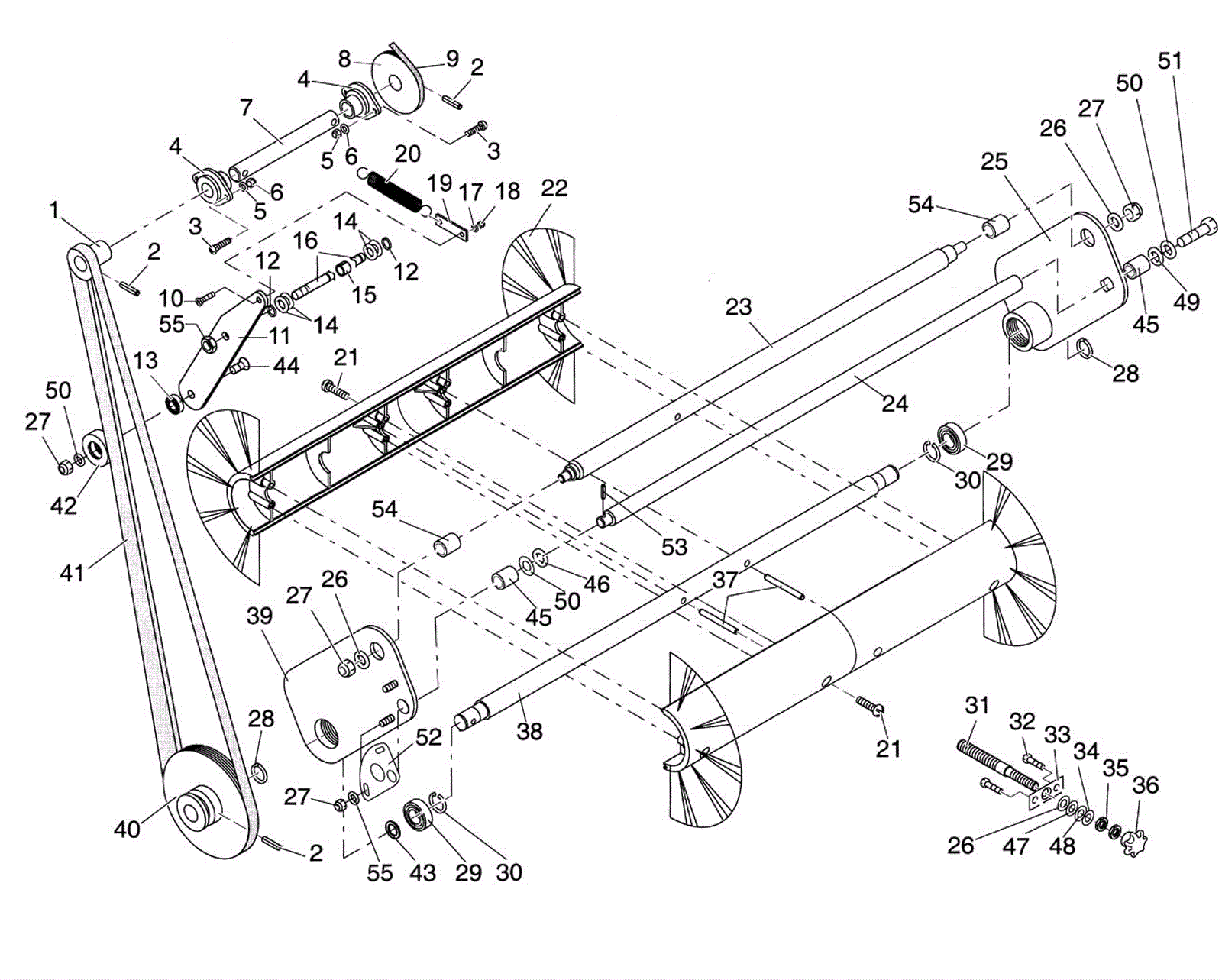

HM35BQP Sweep Roller with Travel Drive Assembly

#PartDescriptionPriceReqNotesAvailability
1 274-6431 BELT-PULLEY $52.72 1 usually ships 1-5 days
2 274-2704 DOWEL PIN $0.95 3 usually ships 1-5 days
3 374-0714 SCREW $0.95 4 usually ships 1-5 days
4 274-6422 BEARING $75.74 2 usually ships 1-5 days
5 999-1261 Washer M6 flat stainless steel $0.99 4 ships same day
6 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 4 ships same day
7 274-4013 SHAFT $27.57 1 usually ships 1-5 days
8 274-7063 BELT-PULLEY $31.06 1 usually ships 1-5 days
9 274-2607 CONTI-V-belt $6.77 1 usually ships 4-14 days
10 374-0567 SCREW $0.95 1 usually ships 1-5 days
11 274-3107 LATCH $5.98 1 usually ships 1-5 days
12 174-9175 Retaining ring (OBSOLETE) Call for price 2 usually ships 4-14 days
13 274-3006 BALL BEARING $25.73 1 usually ships 4-14 days
14 374-0731 WSR $0.95 2 usually ships 1-5 days
15 374-1918 SLIDE BEARING $0.95 1 usually ships 1-5 days
16 174-9176 Bolt $22.14 1 usually ships 4-14 days
17 374-0986 WASHER $0.95 1 usually ships 1-5 days
18 999-0495 Nut M5-.8 nylon insert lock zinc plated $0.99 1 ships same day
19 274-1043 PLATE $4.85 1 usually ships 1-5 days
20 274-3133 TENSION SPRING $4.64 1 usually ships 4-14 days
21 374-0609 SCREW, TRUSS HEAD $0.95 8 usually ships 1-5 days
22 274-7928 SWEEPER ROLLER $176.95 1 usually ships 1-5 days
23 274-6085 AXLE-ADJUSTING $56.00 1 usually ships 1-5 days
24 274-6365 AXLE OF ROTATION $21.12 1 usually ships 1-5 days
25 274-6139 BROOM ROCKER L.H. $27.93 1 usually ships 1-5 days
26 999-9097 Washer M8 flat stainless steel $0.99 3 ships same day
27 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 4 usually ships 11-24 days
28 274-0048 RETAINING RING $1.10 2 usually ships 1-5 days
30 374-2215 RETAINING RING $1.10 4 usually ships 1-5 days
31 274-2279 BOLT-THREADED $4.70 1 usually ships 1-5 days
32 374-0854 HEX BOLT $3.31 2 usually ships 1-5 days
33 274-2366 PLATE $4.40 1 usually ships 1-5 days
34 374-0815 WASHER $2.03 1 usually ships 1-5 days
35 174-9177 Nut M8 (OBSOLETE) Call for price 2 usually ships 4-14 days
36 274-2558 HAND WHEEL $3.01 1 usually ships 1-5 days
37 174-9134 Pin $0.95 2 usually ships 4-14 days
38 274-5809 BROOM SHAFT $47.52 1 usually ships 1-5 days
39 274-6140 BROOM ROCKER R.H. $31.45 1 usually ships 1-5 days
40 274-7452 PULLEY $529.13 1 usually ships 1-5 days
41 274-2893 CONTI-V-belt $7.91 1 usually ships 4-14 days
42 274-4763 IDLER $27.95 1 usually ships 4-14 days
43 274-0050 SUPPORTING RING $1.10 2 usually ships 1-5 days
44 174-9178 Screw countersunk (OBSOLETE) Call for price 2 usually ships 4-14 days
45 274-0650 BEARING-SLIDE BUSH $1.46 2 usually ships 1-5 days
46 274-2300 SHIM RING (WASHER) $0.95 2 usually ships 1-5 days
47 374-0615 LOCK WASHER $0.95 1 usually ships 1-5 days
48 374-0977 SPRING-BELLEVILLE $0.95 4 usually ships 1-5 days
49 374-0562 Adjusting washer $1.10 1 usually ships 1-5 days
50 274-3443 Detent washer $1.10 2 usually ships 1-5 days
51 999-9092 Screw M8-1.25 x 20mm hex head stainless steel $2.79 1 ships same day
52 274-4305 PLATE $11.57 1 usually ships 1-5 days
53 374-1536 PIN-SPRING $0.95 1 usually ships 1-5 days
54 374-2975 BEARING-SLIDE BUSH $1.49 1 usually ships 1-5 days
55 374-0710 NUT $2.19 1 usually ships 1-5 days
N/S 174-9179 Bushing $18.26 1 usually ships 4-14 days
N/S 374-2833 RETAINING RING $1.10 1 usually ships 1-5 days
