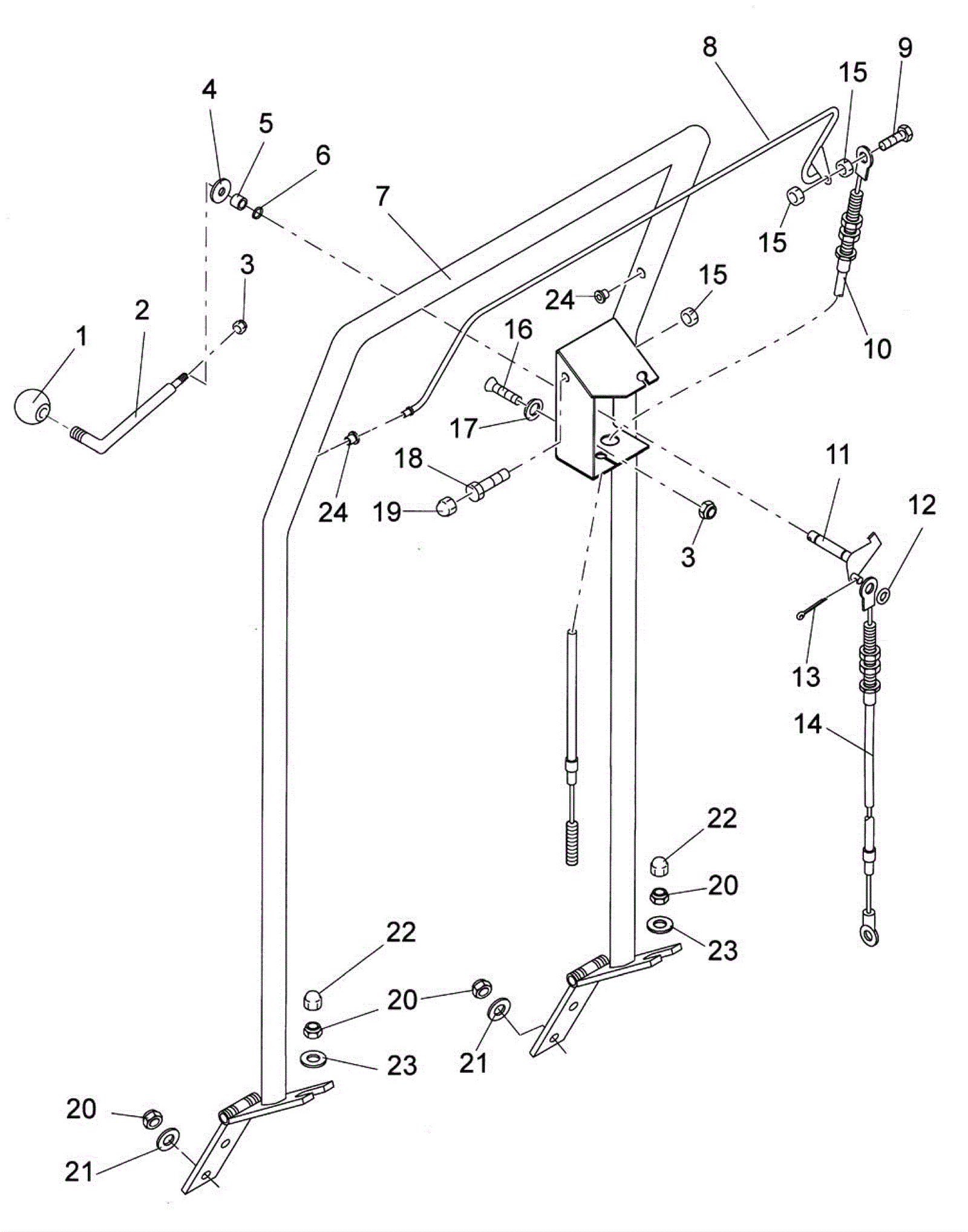

HM35BQP Steering Handle Assembly

#PartDescriptionPriceReqNotesAvailability
1 274-1244 BALL BUTTON $1.85 1 usually ships 1-5 days
2 274-3353 LEVER $17.53 1 usually ships 1-5 days
3 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 1 ships same day
4 274-3379 WASHER $0.95 1 usually ships 1-5 days
5 274-0204 SPACER 12X14X15 $1.03 1 ships same day
7 274-8846 HANDLE-STEERING $383.41 1 usually ships 1-5 days
8 274-4924 HANDLE-BOW $44.60 1 usually ships 1-5 days
9 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 1 ships same day
10 274-5674 CABLE KS35W $64.94 1 usually ships 4-14 days
11 274-5313 BOLT $10.10 1 usually ships 1-5 days
12 999-1261 Washer M6 flat stainless steel $0.99 1 ships same day
14 274-4038 CABLE-BOWDEN $89.17 1 usually ships 4-14 days
15 999-1308 Nut M6-1 hex stainless steel $0.99 3 ships same day
16 274-1224 SCREW, COUNTERSUNK $1.10 1 usually ships 1-5 days
17 374-2845 HOLLOW DISC $1.10 1 usually ships 1-5 days
18 374-3028 Screw $1.04 1 usually ships 1-5 days
19 274-8303 LENS CAP $0.95 1 usually ships 1-5 days
20 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 6 usually ships 11-24 days
21 274-3443 Detent washer $1.10 4 usually ships 1-5 days
22 174-8291 Nut cover safety cap M8 $1.40 2 usually ships 1-5 days
23 999-9097 Washer M8 flat stainless steel $0.99 2 ships same day
24 174-4172 Bearing bush $1.52 2 usually ships 4-14 days
