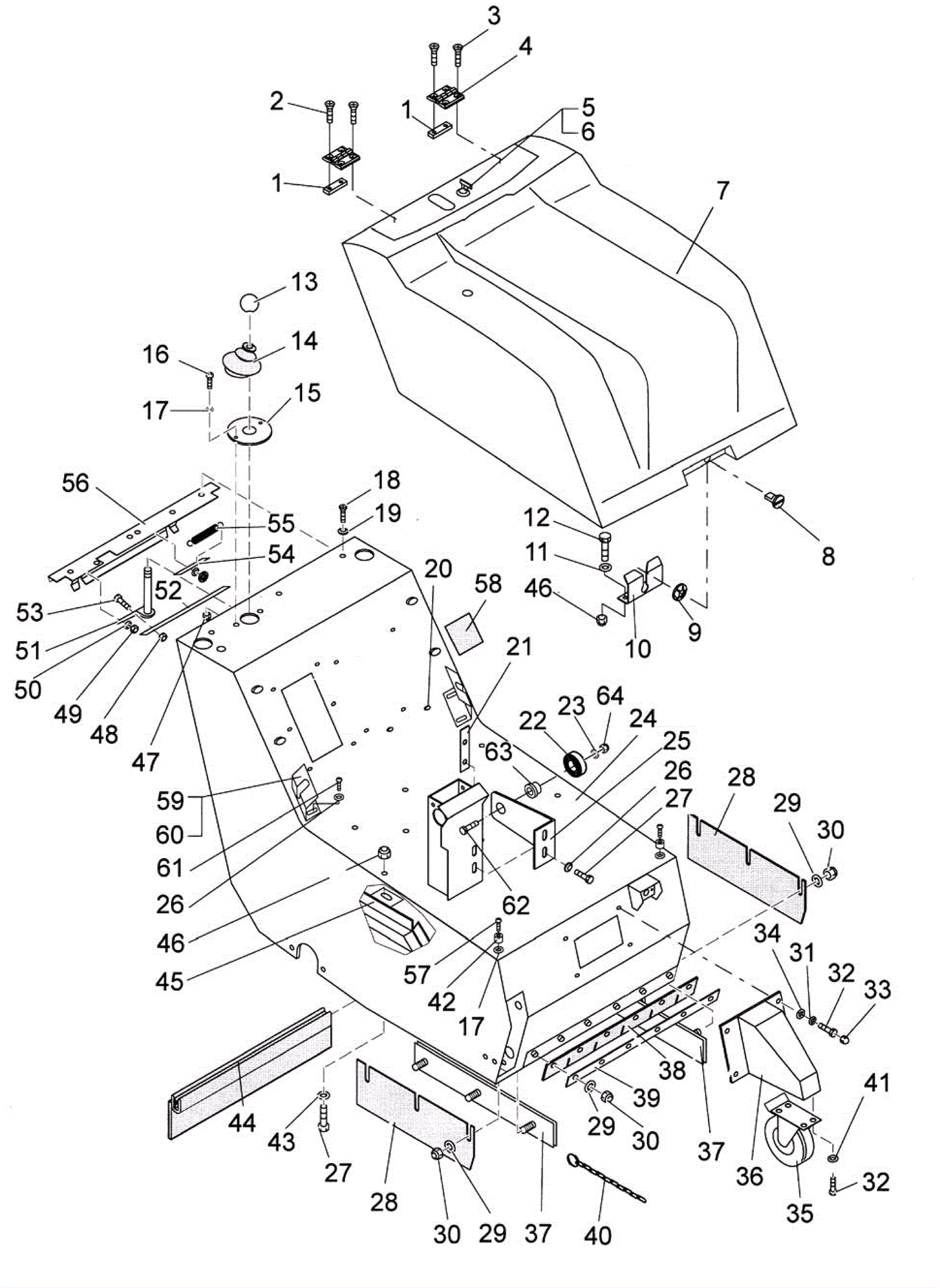

HM35BQP Chassis Assembly

#PartDescriptionPriceReqNotesAvailability
1 274-1778 BRACKET $2.35 2 usually ships 1-5 days
2 374-0567 SCREW $0.95 4 usually ships 1-5 days
3 274-0584 COUNTERSUNK SCREW $1.10 4 usually ships 1-5 days
4 274-6194 HINGE $4.88 2 usually ships 1-5 days
5 274-5420 SWITCH-KEY $72.02 1 usually ships 1-5 days
6 174-7079 Key (set of 2) $20.30 1 usually ships 4-14 days
7 274-9224 HOOD--KLEEN SWEEP 35W $399.11 1 usually ships 1-5 days
8 274-5184 TWISTLOCK $20.67 1 usually ships 1-5 days
9 374-0987 WSR-RETAINING $1.10 1 usually ships 1-5 days
10 274-2742 PLATE-LOCKING $8.40 1 usually ships 1-5 days
11 999-1261 Washer M6 flat stainless steel $0.99 6 ships same day
12 999-1383 Screw M6-1 x 16mm hex head stainless steel $0.99 2 ships same day
13 274-0657 BUTTON $1.43 1 usually ships 1-5 days
14 274-3768 BELLOW $3.51 1 usually ships 1-5 days
15 274-1144 DISC-LOCKING $1.50 1 usually ships 1-5 days
16 274-0378 Fillister head screw $0.95 2 usually ships 1-5 days
17 999-9089 Washer M4 flat stainless steel $0.99 6 ships same day
18 274-1224 SCREW, COUNTERSUNK $1.10 3 usually ships 1-5 days
19 374-2845 HOLLOW DISC $1.10 3 usually ships 1-5 days
20 274-8381 DRAIN PLUG $0.95 2 usually ships 1-5 days
21 274-2491 PLATE-THREAD BASE $3.75 1 usually ships 1-5 days
23 274-5002 SAFETY WASHER $1.10 1 usually ships 1-5 days
24 174-9170 Chassis $1,253.17 1 usually ships 4-14 days
25 274-4915 ANGLE $13.15 1 usually ships 1-5 days
26 999-1261 Washer M6 flat stainless steel $0.99 6 ships same day
27 999-1383 Screw M6-1 x 16mm hex head stainless steel $0.99 3 ships same day
28 174-8425 Floor seal kit $6.63 2 usually ships 4-14 days
29 374-0986 WASHER $0.95 13 usually ships 1-5 days
30 174-9171 Cap nut $0.95 13 usually ships 4-14 days
31 374-0517 LOCK WASHER $0.95 4 usually ships 1-5 days
32 999-0784 Screw M8-1.25 x 16mm hex head stainless steel $1.74 8 ships same day
33 174-8291 Nut cover safety cap M8 $1.40 4 usually ships 1-5 days
34 999-9097 Washer M8 flat stainless steel $0.99 4 ships same day
35 174-7091 Steering roller $78.58 1 usually ships 1-5 days
36 274-6934 RETAINER $83.51 1 usually ships 1-5 days
37 274-3064 CLAMPING STRIP $13.19 2 usually ships 1-5 days
38 274-6899 APRON $63.05 1 usually ships 4-14 days
39 274-3028 STRUT $18.04 1 usually ships 1-5 days
40 274-5624 GROUNDING CHAIN $16.75 1 usually ships 1-5 days
41 274-3443 Detent washer $1.10 1 usually ships 1-5 days
42 174-9172 Grommet (OBSOLETE) Call for price 2 usually ships 4-14 days
43 999-1261 Washer M6 flat stainless steel $0.99 2 ships same day
44 274-5918 SEALING PROFILE $54.77 1 usually ships 4-14 days
45 274-4781 HOLDER $27.23 1 usually ships 1-5 days
46 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 3 ships same day
47 999-0955 Nut M4-.7 hex nylon lock $1.52 2 ships same day
48 374-0515 Hex. nut $0.95 2 usually ships 1-5 days
49 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 2 usually ships 11-24 days
50 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
51 274-4361 ANGLE $10.28 1 usually ships 1-5 days
52 274-3242 STRUT $31.00 2 usually ships 1-5 days
53 374-0854 HEX BOLT $3.31 2 usually ships 1-5 days
54 274-1763 PLATE $1.35 1 usually ships 1-5 days
55 274-3133 TENSION SPRING $4.64 1 usually ships 4-14 days
56 274-6589 ANGLE $84.22 1 usually ships 1-5 days
57 274-0066 TAPPING SCREW $0.95 2 usually ships 1-5 days
58 174-9173 Foam rubber (OBSOLETE) Call for price 1 usually ships 4-14 days
59 274-2203 ANGLE $2.85 1 usually ships 1-5 days
60 374-2997 GROMMET $1.07 2 usually ships 1-5 days
61 274-0057 TAPPING SCREW $0.95 4 usually ships 1-5 days
62 999-0785 Screw M8-1.25 x 30mm hex head stainless steel $2.09 1 ships same day
63 174-9174 Bushing $12.31 1 usually ships 4-14 days
64 999-1424 Nut M8-1.25 hex stainless steel $1.65 1 ships same day
N/S 374-1545 DECAL-LOCK GUARD OF HOOD $0.95 1 usually ships 1-5 days
