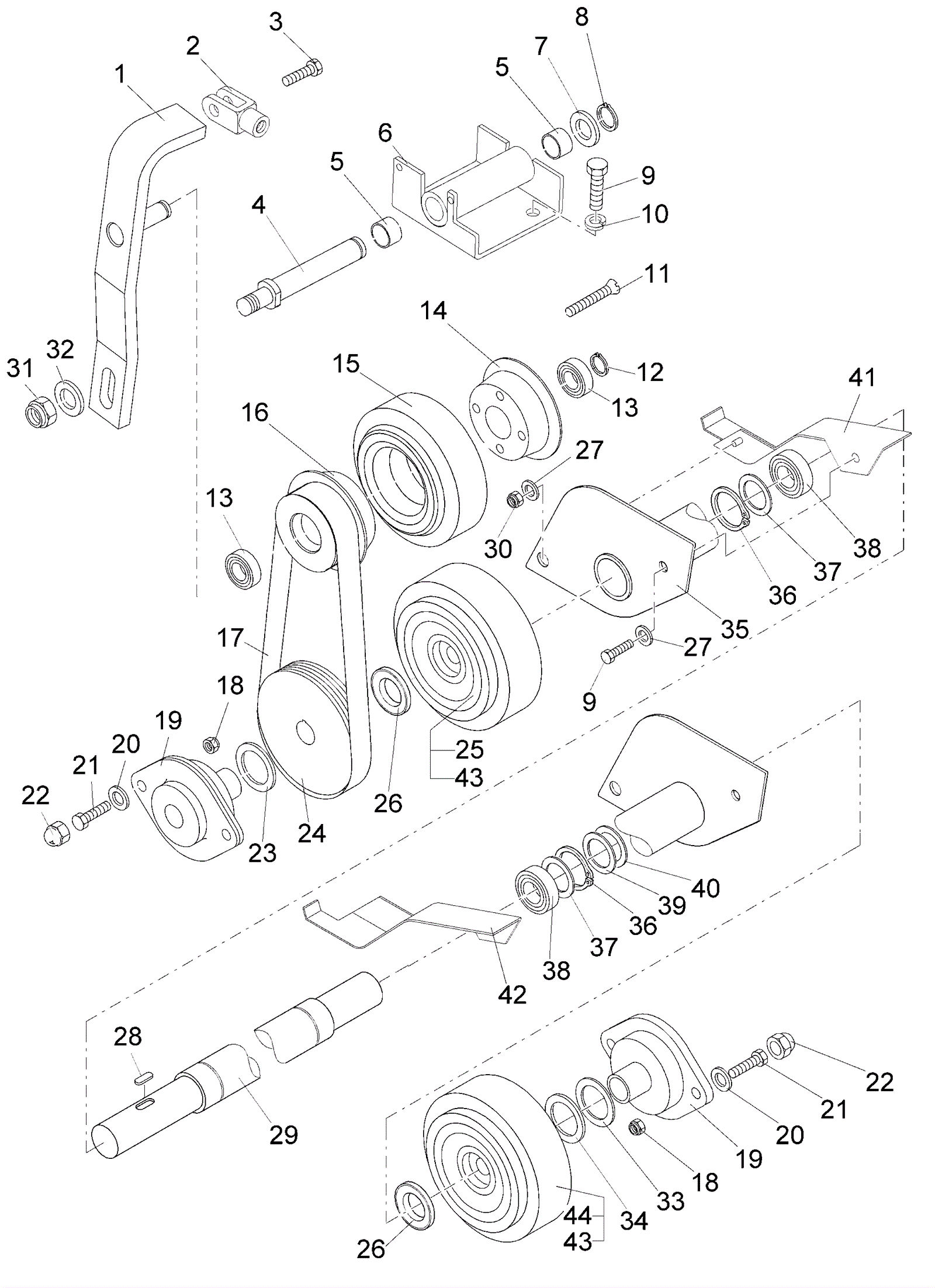

HM35BQP Travel Drive Assembly

#PartDescriptionPriceReqNotesAvailability
1 274-6138 LEVER $25.62 1 usually ships 1-5 days
2 274-3137 FORK YOKE $3.35 1 usually ships 1-5 days
3 374-0508 HEX BOLT $0.95 1 usually ships 1-5 days
4 274-3508 BOLT $13.28 1 usually ships 1-5 days
5 374-1941 DU-DRYING SOCKET $1.49 2 usually ships 1-5 days
6 274-5247 HOLDER $18.23 1 usually ships 1-5 days
7 374-0519 WASHER $0.95 1 usually ships 1-5 days
8 274-0637 CIRCLIP $1.10 1 usually ships 1-5 days
9 999-0784 Screw M8-1.25 x 16mm hex head stainless steel $1.74 6 ships same day
10 374-0517 LOCK WASHER $0.95 2 usually ships 1-5 days
11 374-1664 SCR-COUNTERSUNK M6x30 $1.10 4 usually ships 1-5 days
13 274-5800 DEEP GROOVE BALL BEARING $6.19 2 usually ships 1-5 days
14 174-9166 Rim $41.40 1 usually ships 4-14 days
15 274-0542 FRICTION WHEEL $7.34 1 usually ships 4-14 days
16 174-9167 Belt pulley (OBSOLETE) Call for price 1 usually ships 4-14 days
17 274-5176 CONTI-V-belt $26.12 1 usually ships 4-14 days
18 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 4 ships same day
19 274-6422 BEARING $75.74 2 usually ships 1-5 days
20 999-1261 Washer M6 flat stainless steel $0.99 4 ships same day
21 999-1383 Screw M6-1 x 16mm hex head stainless steel $0.99 4 ships same day
22 274-8303 LENS CAP $0.95 4 usually ships 1-5 days
23 274-0050 SUPPORTING RING $1.10 1 usually ships 1-5 days
24 274-6594 BELT-PULLEY $118.98 1 usually ships 1-5 days
25 274-7385 WHEEL-FREE ROLLING R.H. $125.15 1 usually ships 1-5 days
26 274-2736 NILOS-RING 6003 AV $3.36 2 ships same day
27 274-5002 SAFETY WASHER $1.10 2 usually ships 1-5 days
28 374-0550 KEY $1.10 1 usually ships 1-5 days
29 274-7346 AXLE $91.60 1 usually ships 1-5 days
30 999-1424 Nut M8-1.25 hex stainless steel $1.65 2 ships same day
31 999-1122 Nut M12-1.75 hex nylon insert lock stainless steel $3.47 2 usually ships 11-24 days
32 274-3379 WASHER $0.95 2 usually ships 1-5 days
33 274-0063 ADJUSTING WASHER $0.95 1 usually ships 1-5 days
34 174-9621 Washer M17 flat $3.74 1 usually ships 4-14 days
35 274-7683 ROCKER $159.58 1 usually ships 1-5 days
37 174-9169 Supporting ring $1.10 2 usually ships 4-14 days
38 274-1953 DEEP GROOVE BALL BEARING $13.62 2 usually ships 1-5 days
39 274-2842 ADJUSTING SHIM $0.95 2 usually ships 1-5 days
40 274-0070 ADJUSTING WASHER $1.10 1 usually ships 1-5 days
41 274-5238 ANGLE-L.H. $26.72 1 usually ships 1-5 days
42 274-5239 ANGLE-R.H. $27.93 1 usually ships 1-5 days
43 374-0499 INNER RING $9.77 2 usually ships 1-5 days
44 274-7384 WHEEL-FREE ROLLING L.H. $125.15 1 usually ships 1-5 days
