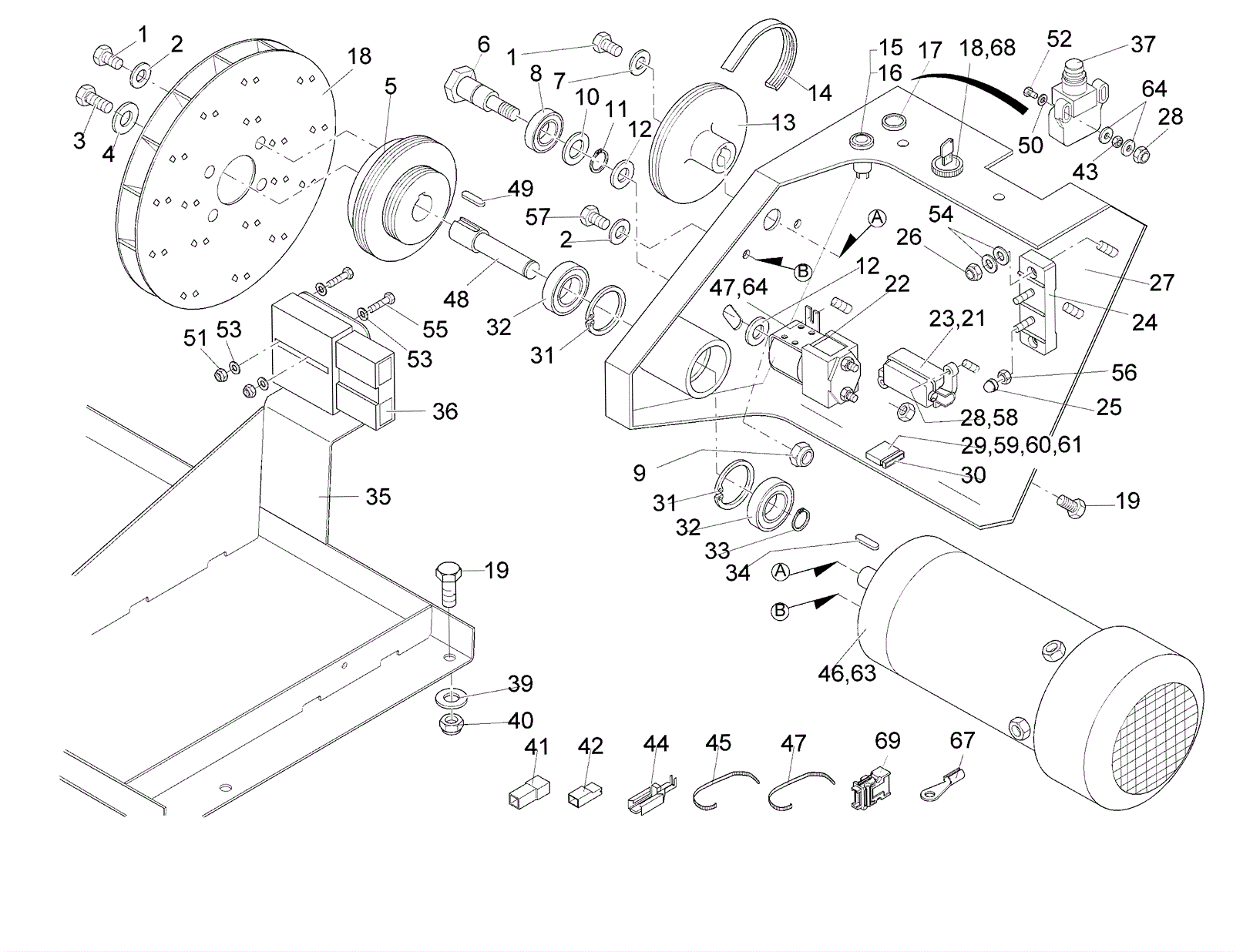

HM35BQP Traction Drive Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-9116 Screw M6-1 x 12mm hex head stainless steel $0.99 5 ships same day
2 274-2563 Detent washer $1.10 8 usually ships 1-5 days
3 999-9092 Screw M8-1.25 x 20mm hex head stainless steel $2.79 3 ships same day
4 999-9097 Washer M8 flat stainless steel $0.99 1 ships same day
5 274-7216 BELT-PULLEY $30.48 1 usually ships 1-5 days
6 174-9159 Bolt $7.61 1 usually ships 4-14 days
7 999-1261 Washer M6 flat stainless steel $0.99 2 ships same day
9 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 1 ships same day
10 274-0071 ADJUSTING WASHER $1.10 3 usually ships 1-5 days
11 274-0048 RETAINING RING $1.10 1 usually ships 1-5 days
12 174-3486 Washer $1.24 2 usually ships 4-14 days
13 174-9161 Belt pulley (OBSOLETE) Call for price 1 usually ships 4-14 days
14 274-3326 CONTI-V-belt $12.09 1 usually ships 4-14 days
15 274-2974 LAMP-INDICATOR GREEN $14.95 1 usually ships 1-5 days
16 374-2876 BULB 12V 2W $101.71 1 usually ships 1-5 days
17 374-1531 SEALING PLUG $0.95 1 usually ships 1-5 days
18 174-8914 Key switch $27.66 1 usually ships 4-14 days
19 999-0784 Screw M8-1.25 x 16mm hex head stainless steel $1.74 6 ships same day
22 274-6846 SOLENOID SWITCH $125.24 1 usually ships 1-5 days
23 274-4243 FUSE HOLDER $10.03 1 usually ships 1-5 days
24 274-1448 TERMINAL BLOCK, 2 STUD M6 63A $7.56 1 usually ships 1-5 days
25 274-8303 LENS CAP $0.95 2 usually ships 1-5 days
26 999-0495 Nut M5-.8 nylon insert lock zinc plated $0.99 3 ships same day
27 274-8241 FRAME-HOLD $78.15 1 usually ships 1-5 days
28 999-0955 Nut M4-.7 hex nylon lock $1.52 2 ships same day
29 374-1902 FUSE HOLDER $0.95 1 usually ships 1-5 days
30 374-0610 FUSE, 5AMP 32VOLT $1.10 1 usually ships 1-5 days
31 374-2833 RETAINING RING $1.10 2 usually ships 1-5 days
32 274-4028 GROOVED BALL BEARING 32mm $25.68 2 usually ships 1-5 days
33 274-0637 CIRCLIP $1.10 1 usually ships 1-5 days
34 374-2006 FITTING SPRING $1.10 1 usually ships 1-5 days
35 274-7060 TRAY-BATTERY $55.17 1 usually ships 1-5 days
36 174-6082 Charge connector, yellow $15.48 1 usually ships 4-14 days
37 274-7713 SWITCH, PUSH- ADMIRAL/APEX $30.36 1 usually ships 4-14 days
39 999-9097 Washer M8 flat stainless steel $0.99 8 ships same day
40 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 4 usually ships 11-24 days
41 174-4125 Female connector $1.22 1 usually ships 4-14 days
42 174-4124 CONNECT-1 POS POSITIVE LOCK MALE- RECEPT $0.97 9 usually ships 4-14 days
43 374-0671 HEX NUT $1.05 2 usually ships 1-5 days
44 174-4123 QC-FEMALE 18G 0.5-1.5 mmq .250 NON-INS $0.97 1 usually ships 4-14 days
45 274-0062 CABLE TIE $0.95 6 usually ships 1-5 days
46 374-0030 MOTOR-ELECTRICAL $701.64 1 usually ships 1-5 days
47 997-2102 Cable tie $1.24 3 ships same day
48 274-5014 SHAFT $26.35 1 usually ships 1-5 days
49 374-0550 KEY $1.10 1 usually ships 1-5 days
50 374-1002 WASHER $1.10 2 usually ships 1-5 days
51 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 2 ships same day
52 174-9164 Screw fillister head Call for price 2 usually ships 4-14 days
53 999-1261 Washer M6 flat stainless steel $0.99 2 ships same day
54 174-9165 Washer (OBSOLETE) Call for price 6 usually ships 4-14 days
55 374-3028 Screw $1.04 2 usually ships 1-5 days
56 999-1308 Nut M6-1 hex stainless steel $0.99 4 ships same day
57 999-1383 Screw M6-1 x 16mm hex head stainless steel $0.99 4 ships same day
58 999-9089 Washer M4 flat stainless steel $0.99 2 ships same day
59 999-1897 Screw M3-.5 x 20mm hex head $0.99 1 usually ships 1-5 days
60 999-1521 Washer M3 flat stainless steel $0.99 1 ships same day
61 374-0495 Hex. nut $1.05 1 usually ships 1-5 days
63 274-5830 BRUSH-CARBON $55.88 4 usually ships 1-5 days
64 999-1521 Washer M3 flat stainless steel $0.99 2 ships same day
67 374-2998 SOCKET-CABLE $0.95 1 usually ships 1-5 days
68 174-7079 Key (set of 2) $20.30 1 usually ships 4-14 days
69 274-1519 FUSE SUPPORT $1.85 1 usually ships 1-5 days
N/S 274-5416 FAN WHEEL $97.21 1 usually ships 1-5 days
