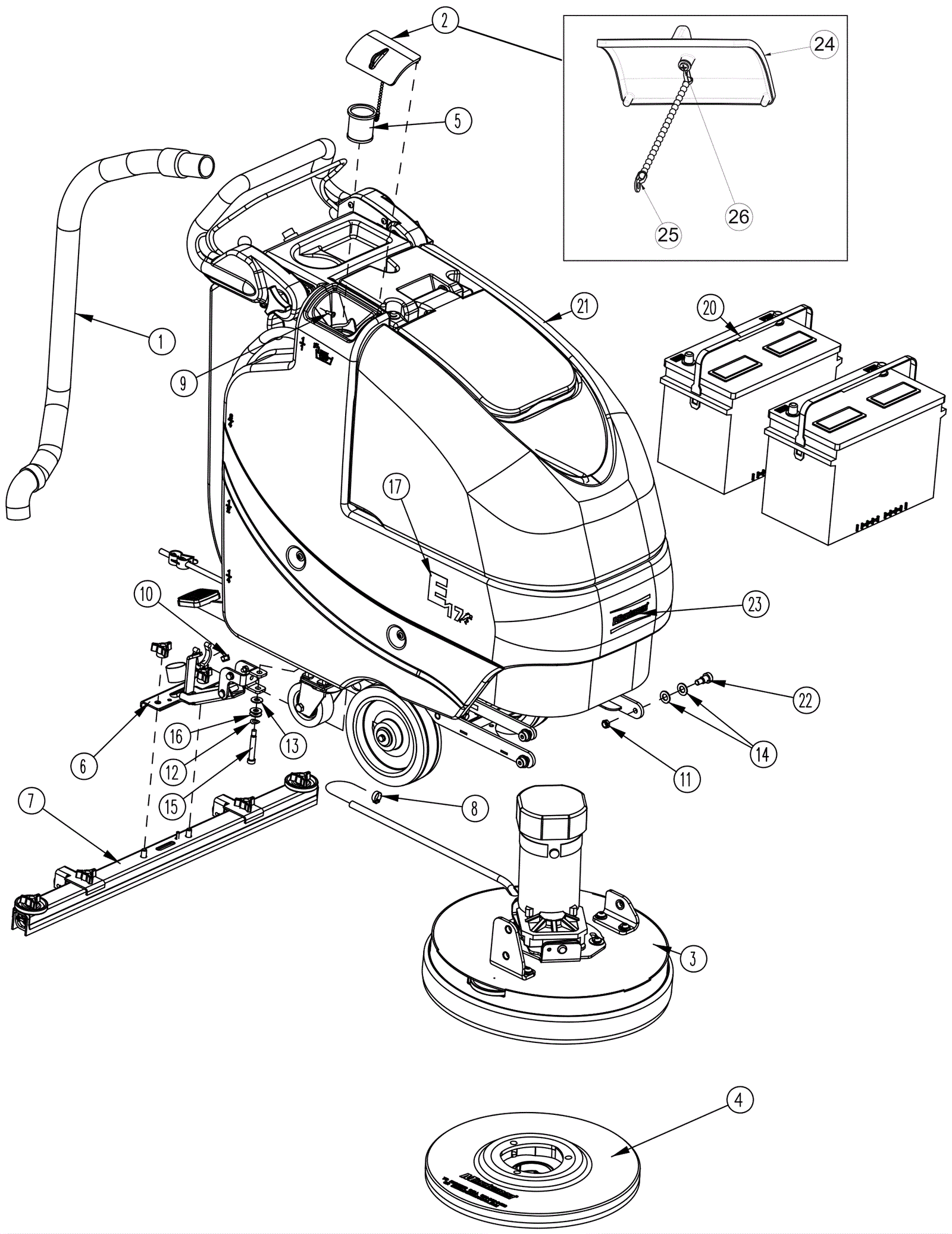

E17 Main Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-8186 Recovery vac hose with cuff (clear) $39.92 1 ships same day
2 174-8187 Solution tank lid assembly $18.97 1 usually ships 4-14 days
3a 174-8188 Brush deck assembly 17 inch $829.75 1 (brush drive) usually ships 1-5 days
3b 274-9608 17 inch TD DISK DECK ASSY $938.57 1 (traction drive) usually ships 1-5 days
4 274-9809 17 inch pad driver $137.47 1 usually ships 4-14 days
5 174-8189 Fill port filter $13.35 1 usually ships 4-14 days
6a 174-8190 Squeegee lift mechanism assembly Call for price 1 usually ships 1-5 days
6b 174-8343 Squeegee lift mechanism assembly $193.37 1 ships same day
7a 174-8191 Squeegee assembly straight 20 inch $673.62 1 (brush drive) ships same day
7b 274-9437 SQUEEGEE ASSY FOR BD, 30 inch (760mm) CURVED $735.47 1 (brush drive) usually ships 4-14 days
7c 274-9435 SQUEEGEE ASSY, 30 inch (760mm) CURVED $730.15 1 (traction drive) usually ships 4-14 days
8 997-2001 Hose clamp $2.42 1 ships same day
9 174-8192 Screw 10 x 3/4 stainless steel $0.97 1 usually ships 4-14 days
10 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 1 ships same day
11 999-0324 Nut 3/8-16 nylon insert lock jam zinc plated $0.99 3 ships same day
12 999-0120 Washer 3/8 SAE flat $0.99 1 ships same day
13 174-8193 Washer .390 x .880 x .062 flat $1.08 1 usually ships 4-14 days
14 999-0566 Washer 1/2 flat nylon $0.99 6 ships same day
15 174-8194 Bolt 5/16-18 X 2 3/8 shoulder $3.82 1 usually ships 4-14 days
16 999-1363 Washer 7/8 flat stainless steel $3.48 2 ships same day
17 174-8195 E17 decal $4.87 2 usually ships 1-5 days
18 174-8196 Jumper cable assembly red 4G 12 inch $25.20 1 usually ships 4-14 days
19 174-8197 Battery cable assembly $41.05 1 usually ships 4-14 days
20a 162-0011 12V 105Ah wet battery (SNSR) $291.50 2 (battery model) (brush drive) ships same day
20c 174-3870 12V 105Ah wet Tojan battery $407.83 2 (battery model) usually ships 4-14 days
20d 162-0057 12V 150Ah wet battery (SNSR) $402.47 2 (battery model) (traction drive) ships same day
20e 162-0042 12V 115Ah AGM battery (Group 31) $500.50 2 (battery model) (traction drive) usually ships 4-19 days
21a 374-0270 E17 BRUSH DRV MAIN ASSY, 120V CHARGER $3,051.32 1 (battery model) usually ships 1-5 days
21b 174-3712 Brush drive base assembly 230V charger $3,472.44 1 (battery model) usually ships 4-14 days
21c 374-0366 E1720 TRAC DRV MAIN ASSY, 120V CHARGER $4,206.10 1 (battery model) (traction drive) usually ships 1-5 days
21d 174-3866 115V electric brush drive main assembly $3,762.90 1 (electric model) usually ships 4-14 days
21e 174-3867 230V electric brush drive main assembly $3,798.03 1 (electric model) usually ships 4-14 days
22 174-5325 Bolt 1/2 x 1/2 shoulder $2.77 3 usually ships 4-14 days
23 174-8198 Minuteman decal $3.84 1 usually ships 4-14 days
24 174-8164 Solution tank lid $7.53 1 usually ships 4-14 days
25 174-8199 Beaded chain with eyelets stainless steel $3.57 1 usually ships 4-14 days
26 999-0336 Screw 6-32 x 3/8 pan head phillips stainless steel $0.99 1 ships same day
N/S 174-3868 Positive battery cable $23.42 1 (traction drive) usually ships 4-14 days
N/S 174-3869 Negative battery cable $23.97 1 (traction drive) usually ships 4-14 days
N/S 274-3816 Center-Lok 3 pad holder $42.21 1 (models with the black tri-lobe brush hub will require the conversion kit 174-9038 before using this brush) ships same day
N/S 274-5272 PAD GRAB-II $42.21 1 (models with the black tri-lobe brush hub will require the conversion kit 174-9038 before using this brush) usually ships 6-12 days
N/S 174-8498 Nylon scrubbing brush $107.61 1 (models with the black tri-lobe brush hub will require the conversion kit 174-9038 before using this brush) usually ships 4-14 days
N/S 274-8347 BRUSH, 17 inch NYLO-GRIT $278.82 1 (models with the black tri-lobe brush hub will require the conversion kit 174-9038 before using this brush) usually ships 1-5 days
N/S 274-8514 BRUSH, 17 inch SCRUB-GRIT2 120GR $187.51 1 (models with the black tri-lobe brush hub will require the conversion kit 174-9038 before using this brush) usually ships 1-5 days
N/S 274-8035 BRUSH, 17 inch LIGHT-MEDIUM PP.5 A/S, WHITE $172.18 1 (models with the black tri-lobe brush hub will require the conversion kit 174-9038 before using this brush) usually ships 1-5 days
N/S 274-8036 BRUSH, 17 inch LIGHT-MEDIUM A/S K901 $192.94 1 (models with the black tri-lobe brush hub will require the conversion kit 174-9038 before using this brush) usually ships 1-5 days
N/S 274-8978 BRUSH, 17 inch MEDIUM NYLON 600GR. A/S, GREY $368.82 1 (models with the black tri-lobe brush hub will require the conversion kit 174-9038 before using this brush) usually ships 1-5 days
N/S 274-7960 BRUSH, 17 inch MEDIUM-HEAVY PP.8 A/S $89.01 1 (models with the black tri-lobe brush hub will require the conversion kit 174-9038 before using this brush) usually ships 1-5 days
N/S 274-8770 BRUSH, 17 inch HEAVY NYLON 180GR. A/S $234.38 1 (models with the black tri-lobe brush hub will require the conversion kit 174-9038 before using this brush) usually ships 1-5 days
N/S 274-8693 BRUSH, 17 inch HEAVY-2 NYL 120GR. A/S, GREEN $225.83 1 (models with the black tri-lobe brush hub will require the conversion kit 174-9038 before using this brush) usually ships 1-5 days
