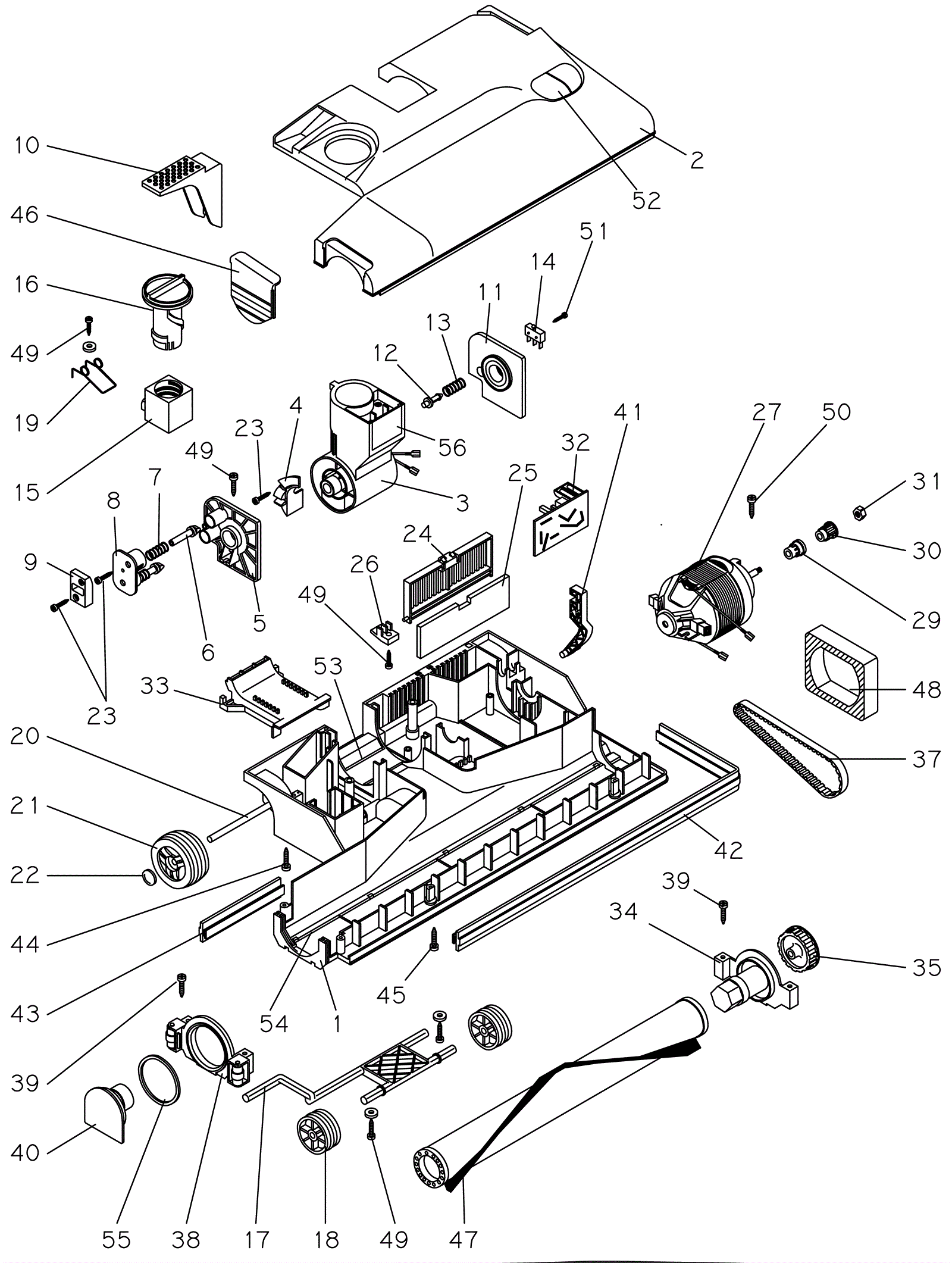

PHENOM 18 Power Brush Assembly

#PartDescriptionPriceReqNotesAvailability
1a 274-6578 BODY MAIN BRUSH HEAD 15 inch $84.00 1 (15 inch only) usually ships 12-16 days
1b 274-6748 BODY MAIN BRUSH HEAD 18 inch $91.56 1 (18 inch only) usually ships 1-5 days
2a 274-5708 ELECTRIC BRUSH COVER 15 inch $60.28 1 (15 inch only) usually ships 12-16 days
2b 274-5993 ELECTRIC BRUSH COVER 18 inch $68.54 1 (18 inch only) usually ships 1-5 days
3 274-6560 JOINT COMPLETE 120V 3 WAY $83.31 1 usually ships 12-16 days
4 374-2754 JOINT PIN SLIDE $2.68 1 usually ships 1-5 days
5 274-2993 SUPPORT RIGHT JOINT $18.70 1 usually ships 12-16 days
6 374-2195 PLUNGER $2.28 1 usually ships 12-16 days
7 374-0622 SPRING DOWEL RELEASE $1.05 1 usually ships 1-5 days
8 374-2194 DOUBLE PIN WASHER $2.53 1 usually ships 1-5 days
9 374-2079 DOUBLE RELEASE PLATE $2.17 1 usually ships 1-5 days
10 274-2232 FOOT PEDAL $7.23 1 usually ships 1-5 days
11 274-2994 SUPPORT LEFT JOINT $18.70 1 usually ships 1-5 days
12 172-1246 Switch activator pin $0.99 1 ships same day
13 374-0623 SPRING $1.33 1 usually ships 12-16 days
14 172-1249 Brush motor switch $13.13 1 ships same day
15 274-1550 BRUSH ADJUSTOR $8.88 1 usually ships 1-5 days
16 274-1896 BRUSH ADJUSTER KNOB $10.71 1 usually ships 1-5 days
17 274-4029 FRONT AXLE $11.18 1 usually ships 12-16 days
18 174-3807 Front wheel nylon (sliver grey) $3.40 2 usually ships 12-16 days
19 374-2196 SPRING BRUSH ADJUST $2.53 1 usually ships 1-5 days
20 274-2543 SHAFT FOR FIXED WHEELS $14.87 1 usually ships 1-5 days
21 274-1453 BIG WHEEL $7.70 1 usually ships 12-16 days
22 192-6672 Cap $2.44 1 ships same day
23 274-1663 WRAPPING OF 20 PCS SCREW 2,9X16 $5.29 1 usually ships 1-5 days
24 274-2700 FILTER GRILL $14.54 1 usually ships 12-16 days
25 374-2834 EXHAUST FILTER $3.84 1 usually ships 12-16 days
26 374-0568 STOP GRILL PLATE $1.05 1 usually ships 12-16 days
27a 274-7540 BRUSH MOTOR 100/120V (15 inch) $137.49 1 (15 inch 115V model only) usually ships 12-16 days
27b 274-7667 BRUSH MOTOR 100/120V (18') $149.98 1 (18 inch 115V model only) usually ships 1-5 days
29 274-1000 SPACER PINION $6.70 1 usually ships 1-5 days
30 274-1688 PINION $3.38 1 usually ships 1-5 days
31 274-4116 WRAPPING OF 20 PCS NUT M4 $27.54 1 usually ships 1-5 days
32 228-2528 DP/HEPA BR circuit board $49.43 1 usually ships 9-12 days
33 274-2657 CHANEL COVER $15.75 1 usually ships 12-16 days
34 274-5180 TRANSMISSION SUPPORT W/PULLEY $55.17 1 usually ships 12-16 days
35 274-2136 PULLEY WITH METAL INSERT $13.76 1 usually ships 12-16 days
37 274-3337 TIMING BELT 7MM $24.86 1 usually ships 12-16 days
38 274-3180 WHEELS SUPPORT $18.17 1 usually ships 1-5 days
39 274-1455 WRAPPING OF 20 PCS SCREW 3,9X16 $8.53 1 usually ships 1-5 days
40 274-4182 ROLLER SUPPORT $28.23 1 usually ships 12-16 days
41 274-2231 SIDE LEVER $11.48 1 usually ships 12-16 days
42a 274-2769 FRONT BUMPER 15 inch $15.02 1 (15 inch only) usually ships 12-16 days
42b 274-2906 FRONT BUMPER 18 inch $17.83 1 (18 inch only) usually ships 1-5 days
43a 374-2755 BACK BUMPER GASKET 15 inch $2.68 1 (15 inch only) usually ships 12-16 days
43b 374-2996 BACK BUMPER GASKET 18 inch $3.83 1 (18 inch only) usually ships 1-5 days
44 274-3765 WRAPPING OF 20 PCS SCREW 4,8X50 $26.00 1 usually ships 12-16 days
45 274-2067 WRAPPING OF 20 PCS SCREW 3,5X38 $11.66 1 usually ships 12-16 days
46 274-2180 Side cover $11.18 1 ships same day
47a 274-5169 BRUSH ROLLER 15 inch $42.66 1 (15 inch only) usually ships 12-16 days
47b 274-5458 BRUSH ROLLER 18 inch $46.92 1 (18 inch only) usually ships 12-16 days
48 274-2047 MOTOR FILTER $11.49 1 usually ships 1-5 days
49 274-1662 WRAPPING OF 20 PCS SCREW 3,5X13 $5.29 1 usually ships 1-5 days
50 274-1765 WRAPPING OF 20 PCS SCREW 3,5X25 $10.01 1 usually ships 1-5 days
51 274-1206 WRAPPING OF 20 PCS SCREW 2,2X16 $7.40 1 usually ships 1-5 days
52 274-1454 LENS SET RED & GREEN $4.86 1 usually ships 1-5 days
53 374-0628 FELT FOR BRUSH HOUSING $1.05 1 usually ships 1-5 days
54a 274-3039 BASE METAL GUIDES SET 15 inch $19.13 1 (15 inch only) usually ships 12-16 days
54b 274-3511 BASE METAL GUIDES SET 18 inch $21.17 1 (18 inch only) usually ships 12-16 days
55 374-0633 O-RING $1.07 1 usually ships 12-16 days
56 274-3733 MALE ELEC. CONNECTION SET 120V 3 WIRES $25.49 1 usually ships 1-5 days
N/S 274-0575 CARBON BRUSH FOR BRUSH MOTOR R73 $4.77 1 (carbon brush for brush motor R73) usually ships 1-5 days
