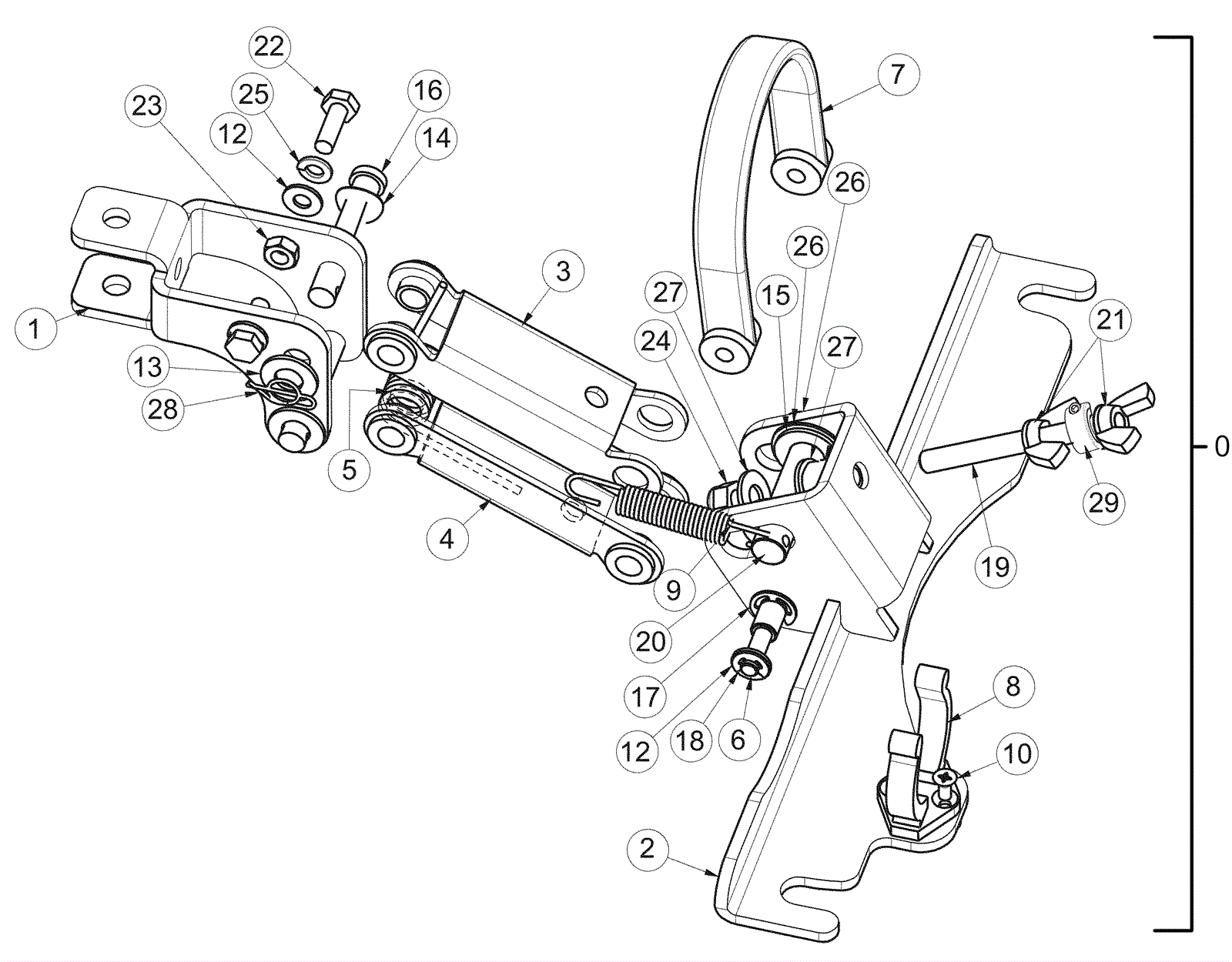

| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
174-8343
|
Squeegee lift mechanism assembly |
1 |
(includes 1-29) |
|
1 |
174-8346
|
Main squeegee bracket hinge |
1 |
|
|
2 |
174-8347
|
Squeegee mount weldment |
1 |
|
|
3 |
174-8348
|
Squeegee top link with bushing |
1 |
|
|
4 |
174-8349
|
Squeegee bottom link with bushing |
1 |
|
|
5 |
174-8350
|
Torsion spring |
1 |
|
|
6 |
274-1265
|
Pin |
1 |
|
|
7 |
274-1653
|
9 inch strap (black) |
1 |
|
|
8 |
174-5968
|
1 1/2 inch hose clip |
1 |
|
|
9 |
174-0008
|
Return spring |
1 |
|
|
10 |
174-6229
|
Screw 8-32 x 3 3/4 flat head |
2 |
|
|
11 |
999-0430
|
Nut 5/16-18 hex jam plain finish |
1 |
|
|
12 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
4 |
|
|
13 |
174-3203
|
Washer 13/32 x 1/32 flat stainless steel |
2 |
|
|
14 |
999-0120
|
Washer 3/8 SAE flat |
2 |
|
|
15 |
999-0566
|
Washer 1/2 flat nylon |
2 |
|
|
16 |
174-8345
|
Clevis pin 3/8 x 2 1/4 |
2 |
|
|
17 |
174-0140
|
Retaining ring |
2 |
|
|
18 |
174-0414
|
Retaining ring |
2 |
|
|
19 |
174-8351
|
Rod 5/16-18 x 3 1/2 inch stainless steel |
1 |
|
|
20 |
174-8352
|
Clevis pin 1/2 x 2 1/4 inch with hole |
1 |
|
|
21 |
999-1012
|
Nut 5/16-18 wing stainless steel |
2 |
|
|
22 |
999-0334
|
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
2 |
|
|
23 |
999-0609
|
Nut 1/4-20 hex stainless steel |
2 |
|
|
24 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
1 |
|
|
25 |
999-0632
|
Washer 1/4 split lock stainless steel |
2 |
|
|
26 |
174-0588
|
Washer 9/16 x 1-1/16 x 3/64 flat pleated |
3 |
|
|
27 |
174-8251
|
Washer flat stainless steel |
2 |
|
|
28 |
174-1578
|
3/8 rue ring cotter pin |
1 |
|
|
29 |
274-9821
|
Collar threaded clamp |
1 |
|
|
