| # | Part | Description |
Req | Notes | Availability |
|---|

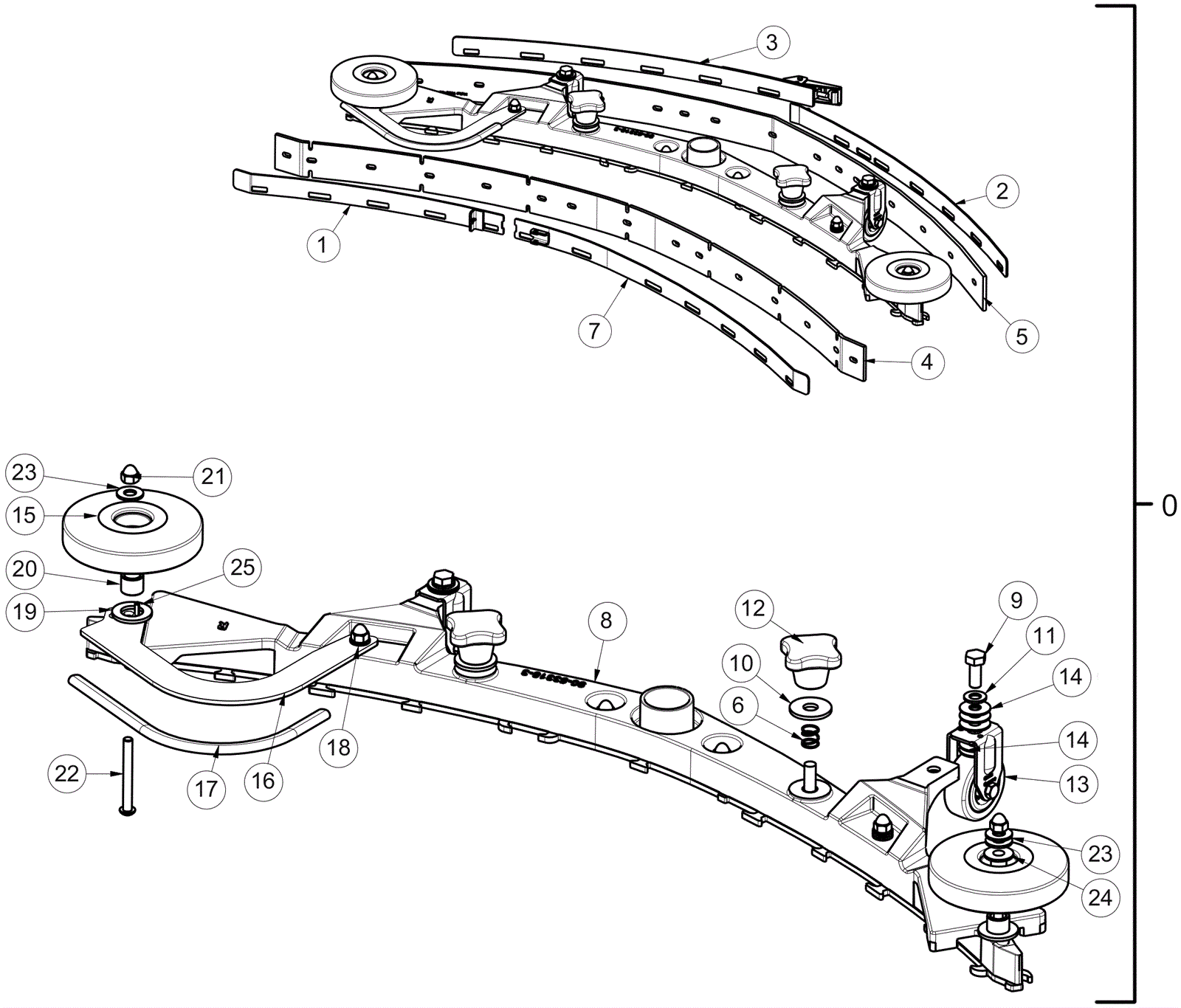

0a |
174-8203
|
Squeegee assembly 34 inch |
1 |
(includes 1-3, 4a, 5a, 6-7, 8a, 9-25) |
|
0b |
274-9436
|
34 inch squeegee assembly curved |
|
(includes 1-3, 4b, 5b, 6-7, 8b, 9-25) |
|
1 |
174-8332
|
Front right strap weldment |
1 |
|
|
2 |
174-8333
|
Rear left strap weldment |
1 |
|
|
3 |
174-8334
|
Rear right strap weldment |
1 |
|
|
4a |
174-8173
|
Squeegee blade 34 inch urethane front |
1 |
(brush drive) |
|
4b |
174-9615
|
Squeegee blade 34 inch urethane front |
1 |
(traction drive) |
|
5a |
174-8175
|
Squeegee blade 34 inch urethane rear |
1 |
(brush drive) |
|
5b |
174-9616
|
Squeegee blade 34 inch urethane rear |
1 |
(traction drive) |
|
6 |
374-1935
|
SPRING, COMP .4 ID X .5FL SS |
2 |
|
|
7 |
274-6924
|
STRAP W/ LATCH, FRONT LEFT, 34 inch SQG |
1 |
|
|
8a |
274-8551
|
CASTING, SQG BODY 34 inch (860MM) |
1 |
(brush drive) |
|
8b |
174-8329
|
34 inch squeegee weldment |
1 |
(traction drive) |
|
9 |
999-9092
|
Screw M8-1.25 x 20mm hex head stainless steel |
2 |
|
|
10 |
174-7186
|
Washer 10 1/2 x 30 x 2 1/2 flat stainless steel |
2 |
|
|
11 |
999-9097
|
Washer M8 flat stainless steel |
2 |
|
|
12 |
174-8339
|
Star knob |
2 |
|
|
13 |
174-8933
|
Fixed caster |
2 |
|
|
14 |
374-1931
|
Washer flat 8.3 x 22 x 1.00mm stainless steel |
10 |
|
|
15 |
174-8932
|
4 inch plastic roller |
2 |
|
|
16 |
174-8336
|
34 inch squeegee bumper |
2 |
|
|
17 |
174-8326
|
Edge trim black 5/16 x 10 inch |
1 |
|
|
18 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
5 |
|
|
19 |
999-0349
|
Washer 5/8 SAE flat |
2 |
|
|
20 |
174-8328
|
Bushing |
2 |
|
|
21 |
999-1344
|
Nut 1/4-20 acorn stainless steel |
6 |
|
|
22 |
999-0621
|
Screw 1/4-20 x 3 truss head slotted stainless steel |
2 |
|
|
23 |
174-8251
|
Washer flat stainless steel |
3 |
|
|
24 |
374-1803
|
BUSHING-FLG .31 X .435 X .325 NYL |
1 |
|
|
25 |
274-9820
|
Pin-roll |
1 |
|
|
