| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
274-5508
|

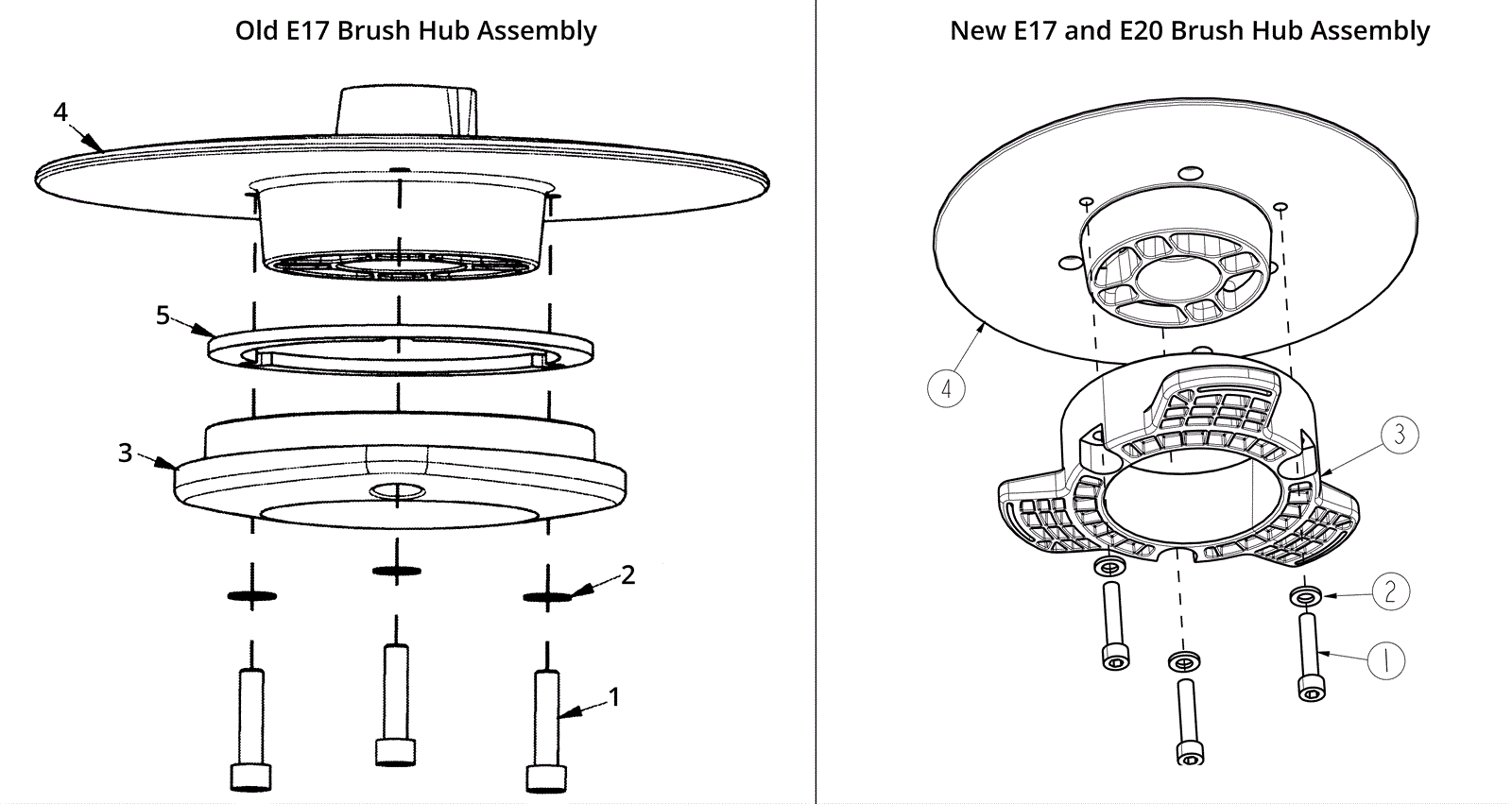

HUB ASSEMBLY, DISC DECK |
1 |
(includes 1a, 2a, 3a, 4) |
usually ships 8-11 days |
1a |
374-0744
|
Screw M6 x 30mm hex head socket stainless steel |
3 |
(new hub assembly) |
usually ships 8-11 days |
1b |
999-1300
|
Screw M6-1 x 25mm socket head stainless steel |
3 |
(old hub assembly) |
usually ships 1-5 days |
2a |
374-1580
|
Washer |
3 |
(new hub assembly) |
usually ships 8-11 days |
2b |
174-5227
|
Washer 1/4 steel plated |
2 |
(old hub assembly) |
usually ships 8-11 days |
3a |
274-2649
|
Drive hub |
1 |
(new hub assembly) |
usually ships 8-11 days |
3b |
174-8319
|
Brush hub base |
1 |
(old hub assembly) |
usually ships 8-11 days |
4 |
174-8322
|
Drive hub base |
1 |
(The square key comes separate - order 174-7185 with this for the key) |
usually ships 8-11 days |
5 |
174-8320
|
Brush hub spacer |
1 |
(old hub assembly) |
usually ships 8-11 days |
