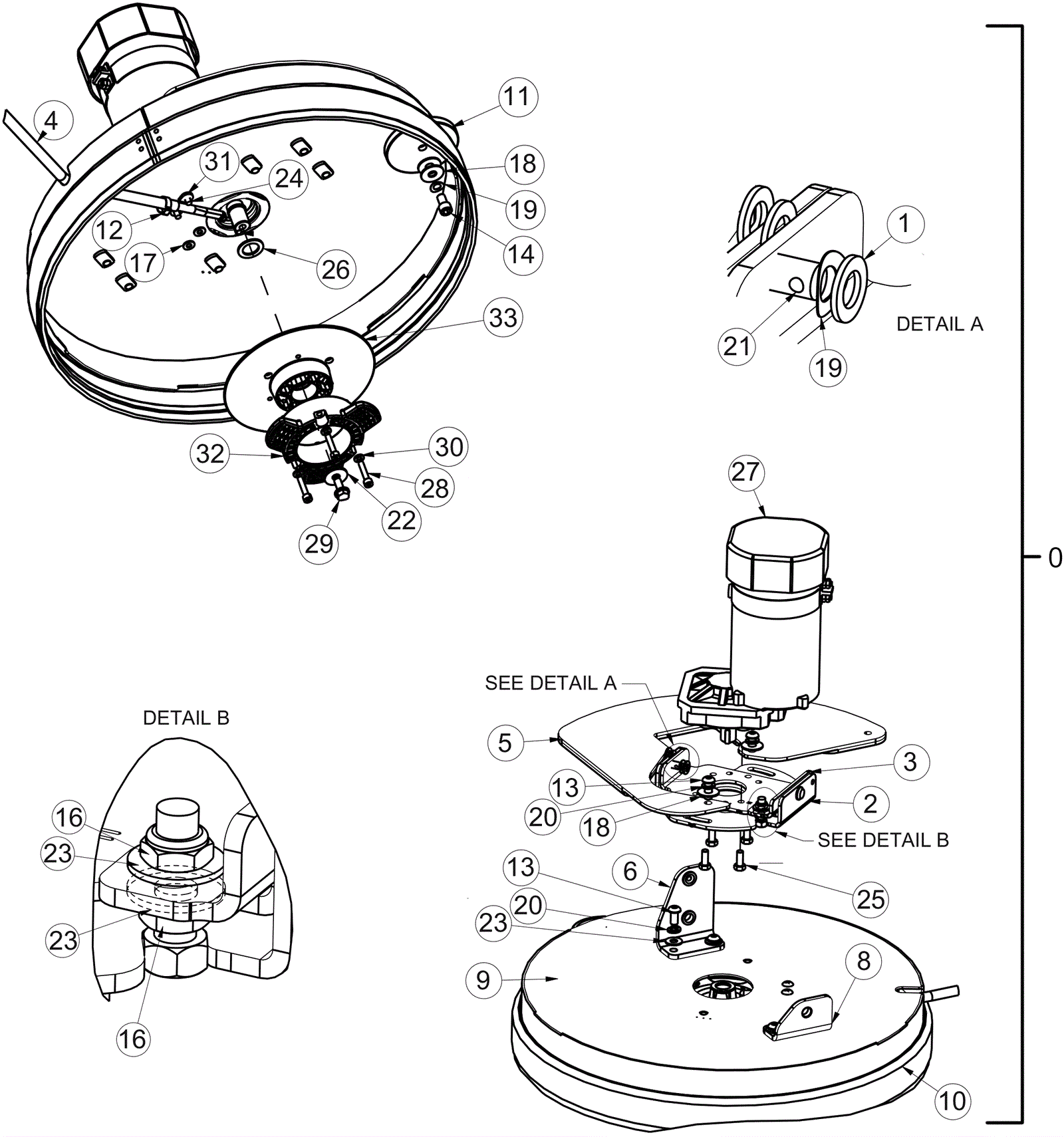

Brush Deck Assembly

#PartDescription ReqNotesAvailability
0a 174-8201 Brush deck assembly 20 inch 1 (includes 1-3, 4a, 5-33) (brush drive)
0b 374-0345 20 inch deck assembly 1 (includes 1-3, 4a, 6-33) (traction drive)
1 999-1363 Washer 7/8 flat stainless steel 6
2 174-8306 Deck angle weldment 1
3 174-8307 Motor mount plate 1
4a 174-8803 Wire reinforced hose 3/8 x 31 1 (brush drive)
4b 274-3007 Hose 3/8 X 22 1/2 inch reinforced nylon 1 (traction drive)
5 174-7179 Scrub deck weight 1 (brush drive)
6 174-7180 Right hand scrub deck mounting bracket 1
8 174-7181 Left hand scrub deck mounting bracket 1
9 274-8325 20 inch deck cover weldment 1
10 274-6772 Brush deck skirt 1
11 174-5216 Roller wheel 1
12 997-2001 Hose clamp 1
13 174-7182 Screw 3/8-24 x 3/4 steel plated 6
14 174-8868 Screw 3/8-24 x 5/8 steel plated 1
16 999-0324 Nut 3/8-16 nylon insert lock jam zinc plated 2
17 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 2
18 999-0617 Washer 3/8 x 1 flat stainless steel 4
19 999-0120 Washer 3/8 SAE flat 3
20 999-0034 Washer 3/8 split lock plain finish 6
21 174-8312 Clevis pin 3/8 x 3/4 2
22 174-8169 Washer flat .37 x 1.12 x .10 1
23 999-1363 Washer 7/8 flat stainless steel 6
24 999-0567 Screw 1/4-20 x 5/8 pan head phillips stainless steel 2
25 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 4
26 999-1134 Washer 1 1/4 flat stainless steel 1
27 174-8313 24v brush motor 1
28 374-0744 Screw M6 x 30mm hex head socket stainless steel 3
29 174-7184 Bolt M8-1.25 x 20mm hex head flange precote zinc plated 1
30 374-1580 Washer 3
31 174-8314 Solution feed nozzle 1
32 274-2649 Drive hub 1
33 174-8322 Drive hub base 1
