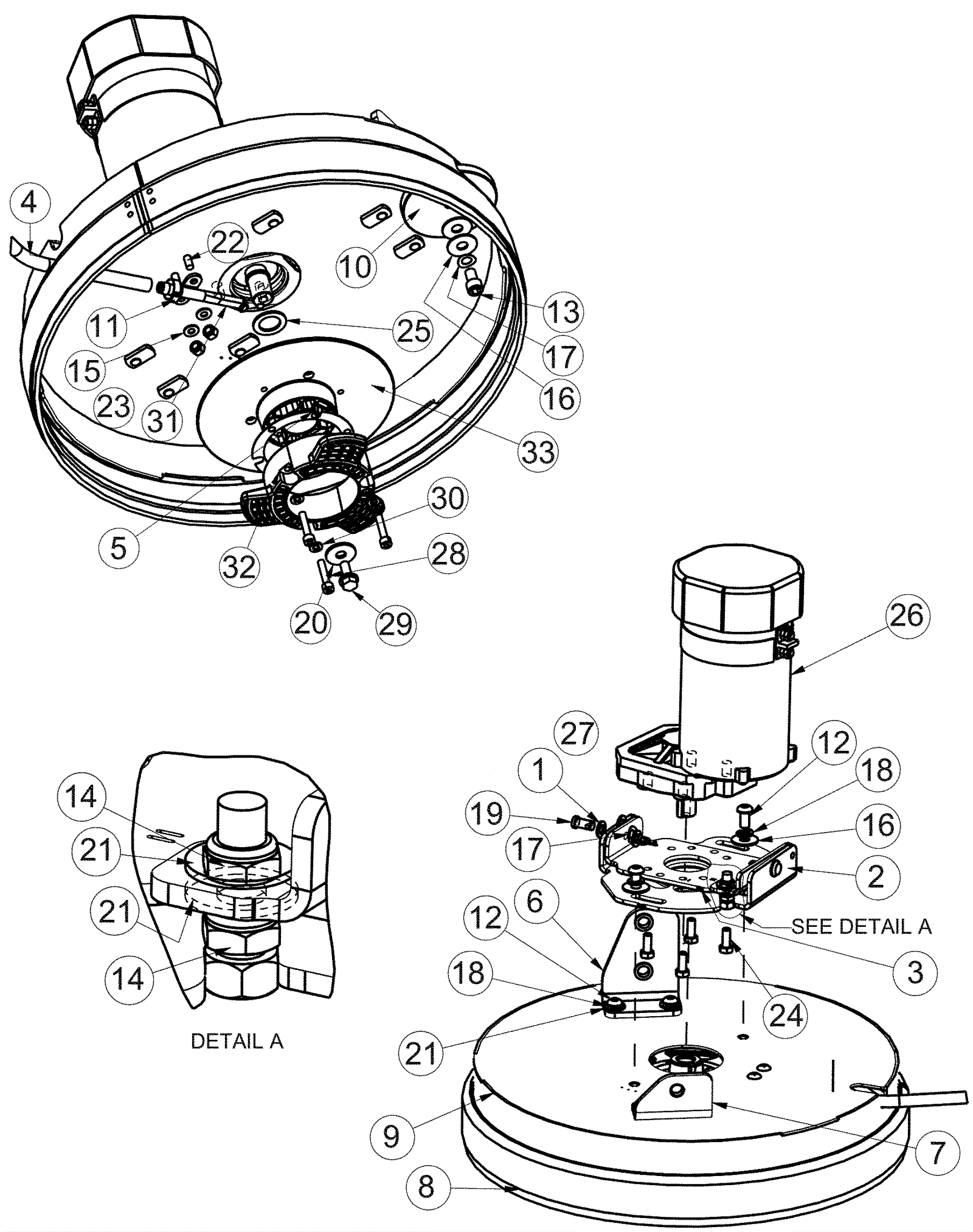

E17 Brush Deck Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-5328 Special washer $0.99 6 usually ships 4-14 days
2 174-8306 Deck angle weldment $51.92 1 usually ships 4-14 days
3 174-8307 Motor mount plate $24.72 1 usually ships 4-14 days
4a 174-8803 Wire reinforced hose 3/8 x 31 $13.28 1 (brush drive) usually ships 4-14 days
4b 374-2817 Nylon hose 3/8 x 23 inch $2.98 1 (traction drive) usually ships 4-14 days
5 274-9818 Hub spacer $16.41 1 usually ships 1-5 days
6 174-7180 Right hand scrub deck mounting bracket $15.64 1 usually ships 4-14 days
7 174-7181 Left hand scrub deck mounting bracket $15.64 1 usually ships 4-14 days
8 274-7229 E17 DECK SKIRT $117.60 1 (brush drive) usually ships 4-14 days
9 174-8308 17 inch deck cover weldment $231.65 1 usually ships 1-5 days
10 174-5216 Roller wheel $6.53 1 usually ships 4-14 days
11 997-2001 Hose clamp $2.42 1 ships same day
12 174-7182 Screw 3/8-24 x 3/4 steel plated $0.97 6 usually ships 1-5 days
13 174-8868 Screw 3/8-24 x 5/8 steel plated $0.97 1 usually ships 4-14 days
14 999-0324 Nut 3/8-16 nylon insert lock jam zinc plated $0.99 2 ships same day
15 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
16 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 4 ships same day
17 999-0120 Washer 3/8 SAE flat $0.99 3 (brush drive) ships same day
18 999-0034 Washer 3/8 split lock plain finish $1.82 6 ships same day
19 174-8312 Clevis pin 3/8 x 3/4 $0.97 2 usually ships 4-14 days
20 174-8169 Washer flat .37 x 1.12 x .10 $2.57 1 (brush drive) ships same day
21 999-1363 Washer 7/8 flat stainless steel $3.48 6 ships same day
22 999-0567 Screw 1/4-20 x 5/8 pan head phillips stainless steel $0.99 2 ships same day
23 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 2 (brush drive) ships same day
24 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 4 ships same day
25 999-1134 Washer 1 1/4 flat stainless steel $6.01 1 ships same day
26 174-8313 24v brush motor $675.49 1 usually ships 4-14 days
27 174-1578 3/8 rue ring cotter pin $1.81 2 (brush drive) ships same day
28 374-0744 Screw M6 x 30mm hex head socket stainless steel $0.97 3 ships same day
29 174-7184 Bolt M8-1.25 x 20mm hex head flange precote zinc plated $2.25 1 (brush drive) usually ships 4-14 days
30 374-1580 Washer $1.18 3 usually ships 4-14 days
31 174-8314 Solution feed nozzle $2.63 1 ships same day
32 274-2649 Drive hub $12.53 1 usually ships 4-14 days
33 174-8322 Drive hub base $26.57 1 usually ships 4-14 days
N/S 999-0028 Washer 5/16 split lock plain finish $0.99 1 (traction drive) ships same day
N/S 174-1039 Cotter pin 1/8 x 1 $0.97 2 (traction drive) usually ships 4-14 days
