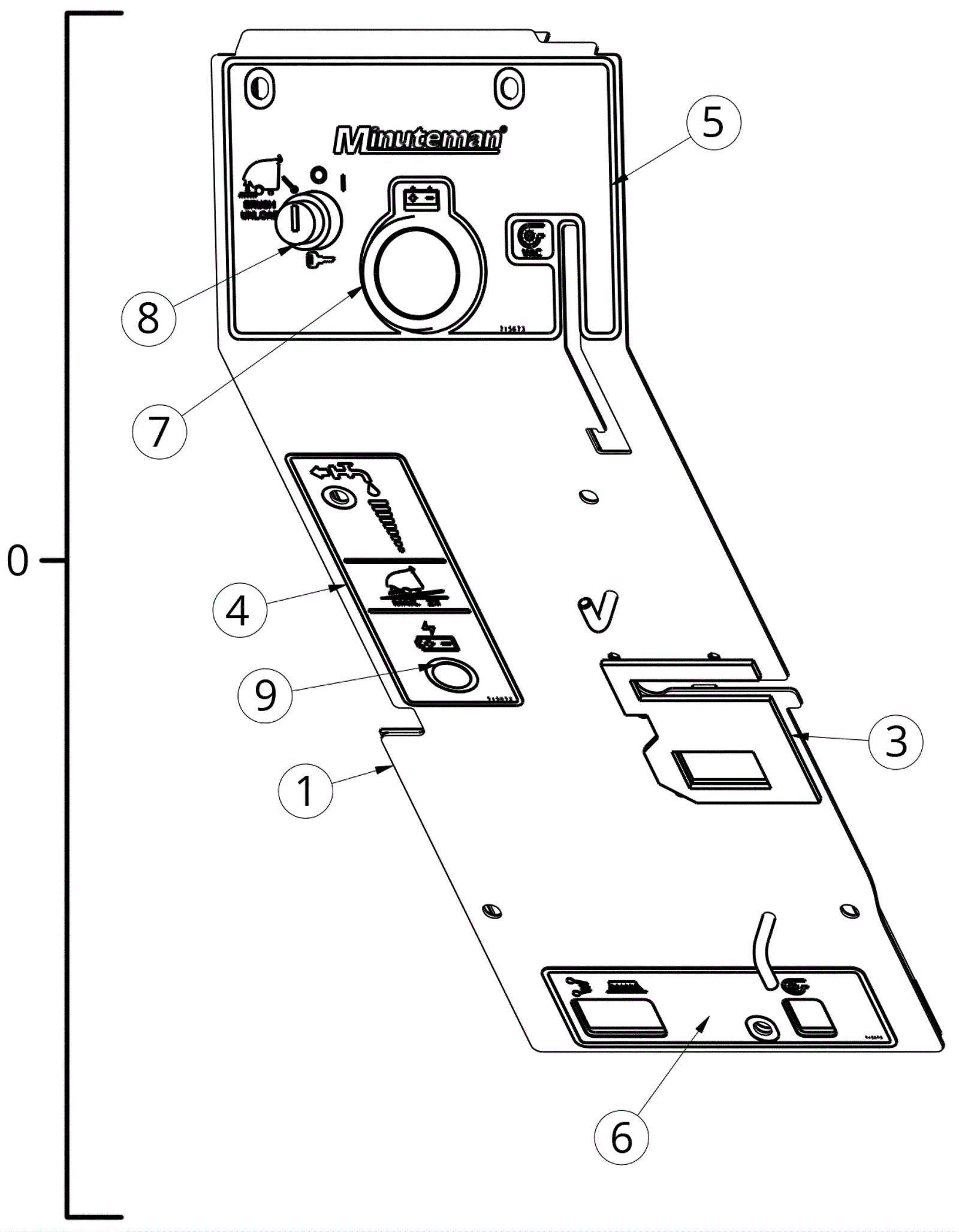

| # | Part | Description |
Req | Notes | Availability |
|---|
0a |
174-3873
|
Electric cover assembly |
1 |
(includes 1-9a) |
|
0b |
174-8213
|
Electrical box cover assembly |
1 |
(includes 1-8, 9b) |
|
1 |
174-8293
|
Electrical box cover weldment |
1 |
|
|
2 |
174-8294
|
Circuit breaker gasket |
1 |
|
|
3 |
174-8295
|
Charger cord plate gasket |
1 |
|
|
4 |
174-8296
|
Electrical box decal |
1 |
|
|
5 |
174-8297
|
Dashboard decal |
1 |
|
|
6 |
174-8298
|
Circuit breaker decal |
1 |
|
|
7 |
174-0180
|
Battery gauge |
1 |
|
|
8 |
174-8177
|
Key switch with key |
1 |
|
|
9a |
174-3890
|
Plastic plug |
1 |
(electric model) |
|
9b |
N/A
|
Not available |
1 |
(charge status indicator) (included with charger) (battery model) |
|
