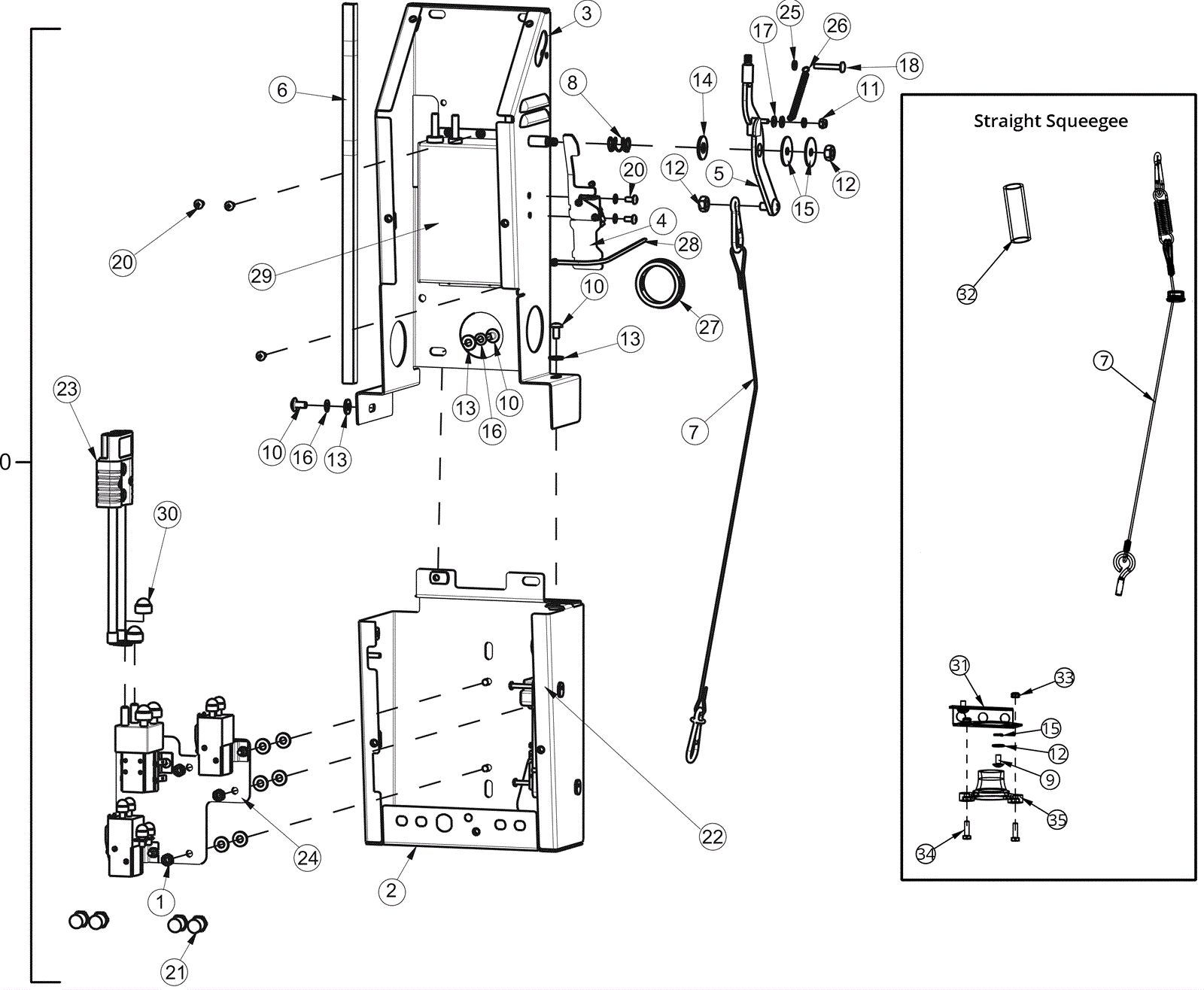

Electrical Box Assembly - Battery Model

#PartDescription ReqNotesAvailability
0a 374-0085 TD ELEC BOX ASSY, 120V CHARGER 1 (includes 1-23, 24a, 25-28, 29a, 30) (traction drive)
0b 174-3872 TD ELEC BOX ASSY, 230V CHARGER 1 (includes 1-23, 24a, 25-28, 29a, 30) (traction drive)
1 174-9057 Nut 1/4-20 serated nylock 3
2 174-8283 Bottom electrical box weldment 1
3 174-8284 Upper electrical box weldment 1
4 174-8287 Vac switch assembly 1
5 174-8128 Lever 1
6 174-8288 Foam tape 1/2 x 16 1/2 inch 1
7a 274-4152 Squeegee cable assembly 1 (curved squeegee)
7b 174-8129 Squeegee lift cable assembly 1 (straight squeegee)
8 174-5749 Compression spring 1
9 374-1022 Screw 8-32 x 1 1/8 pan head phillips zinc 3 (traction drive)
10 999-0113 Screw 1/4-20 x 1/2 truss head slotted 3 (Qty 2 for straight squeegee)
11 999-0151 Nut 8-32 nylon insert lock zinc plated 1
12 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
13 999-0016 Washer 1/4 flat plain finish 9 (Qty 2 for straight squeegee)
14 999-0328 Washer 7/16 USS flat 1
15 174-2255 Washer 5/16 x 7/8 x 3/64 flat 2
16 999-0060 Washer 1/4 split lock plain finish 2
17 174-0532 Washer 7/32 x 3/64 nylon 2
18 174-5072 Screw 10-24 x 1-1/4 1
19 999-0089 Washer #10 internal star lock zinc plated 5
20 999-0817 Screw 10-24 x 5/8 round head zinc plated 5 (traction drive)
21 174-5824 Circuit breaker boot 4
22 174-7084 24V I-drive motor controller 1 (traction drive)
23 174-8290 Wire assembly 1
24a 274-9186 Electrical panel assembly 1 (traction drvie)
24b 174-8289 Electrical panel assembly 1 (brush drive)
24c 274-3322 PANEL, RELAY MOUNT 1 (brush drive)
24d 174-8165 Circuit breaker 4.0 amp (push button) 1 (brush drive)
24e 274-1163 30amp circuit breaker 1 (brush drive) (OEM)
24f 991-1629 35amp circuit breaker 1 (brush drive) (NON-OEM)
24g 174-5059 Circuit breaker 20 amp (push button) 1 (brush drive)
25 374-2258 Mount ring 2
26 174-5235 Spring 1
27 174-0255 Bushing 1
28 997-2102 Cable tie 1
29a 174-7266 24V charger for 155-193ah batteries 1 (traction drive) (new style charger, will need to order 174-9266 if coverting from old style charger to new style charger)
29b 174-9266 24V charger for 155-193AH batteries 1 (new style charger, includes mounting hardware to convert from old style to new style)
29c 174-3888 24V charger 1
30 174-8291 Nut cover safety cap M8 2
31 174-8286 Lower bushing mount bracket 1 (straight squeegee)
32 274-0019 PIPE, 3/4 X 3.0 inch SCHD 40 PVC 1 (straight squeegee)
33 999-0497 Nut M6-1 nylon insert lock stainless steel 2 (straight squeegee)
34 999-0502 Bolt M6-1 x 20mm hex head full thread zinc 2 (straight squeegee)
35 174-8292 Cable guide bushing 1 (straight squeegee)
