| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
174-8207
|

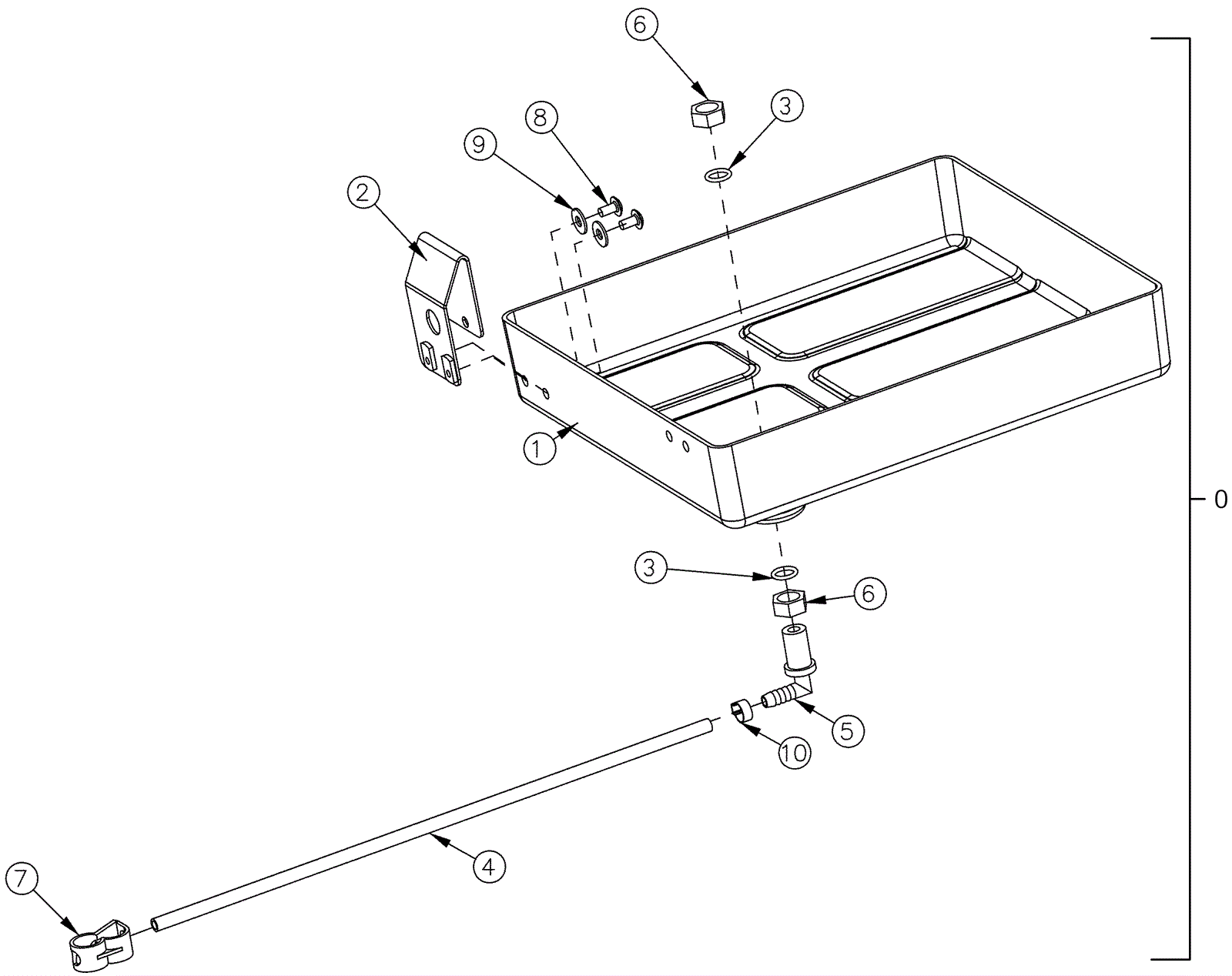

Battery tray assembly |
1 |
(includes 1-10) |
|
1 |
174-8281
|
Battery box |
1 |
|
|
2 |
174-8282
|
Bracket spacer for batteries |
1 |
|
|
3 |
174-0073
|
O-ring |
2 |
|
|
4 |
174-0369
|
18 inch silicone hose |
1 |
|
|
5 |
174-0364
|
90 degree nozzle body |
1 |
|
|
6 |
174-0517
|
Nut 1/4 plastic |
2 |
|
|
7 |
174-0370
|
Shut-off hose clamp |
1 |
|
|
8 |
999-0113
|
Screw 1/4-20 x 1/2 truss head slotted |
2 |
|
|
9 |
999-0024
|
Washer 5/16 flat stainless steel |
2 |
|
|
10 |
997-2001
|
Hose clamp |
1 |
|
|
