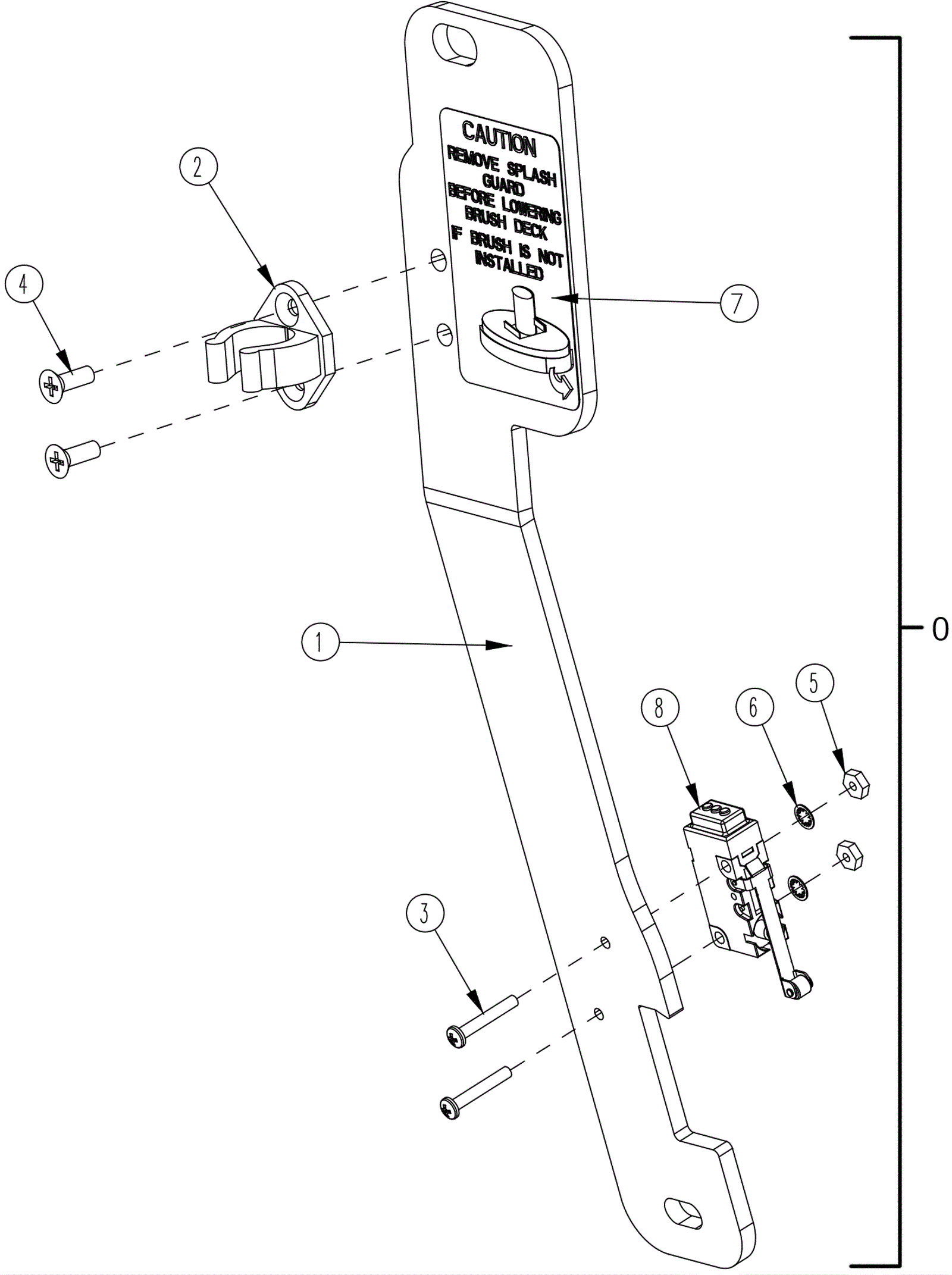

| # | Part | Description |
Req | Notes | Availability |
|---|
0a |
174-8217
|
Lift pedal stop assembly |
1 |
(includes 1-2, 3a, 4-8) |
|
0b |
274-6436
|
Lift pedal bracket assembly |
1 |
(includes 1-2, 3b, 4-8) |
|
1 |
174-8262
|
Stop pedal bracket |
1 |
|
|
2 |
174-8263
|
Clip |
1 |
|
|
3a |
999-1059
|
Screw 4-40 x 3/4 pan head phillips zinc plated |
2 |
(brush drive) |
|
3b |
374-1056
|
SCR-MC 4-40 X 1.25 STL Z |
1 |
(traction drive) |
|
4 |
174-2271
|
Screw 8-32 x 1/2 |
2 |
|
|
5 |
999-0408
|
Nut 4-40 plain machine screw |
2 |
|
|
6 |
999-0479
|
Washer #4 internal star lock zinc plated |
2 |
|
|
7 |
174-7165
|
Remove splash guard decal |
1 |
|
|
8 |
174-8264
|
Switch assembly (with pack conduit) |
1 |
|
|
