| # | Part | Description |
Req | Notes | Availability |
|---|
0 |

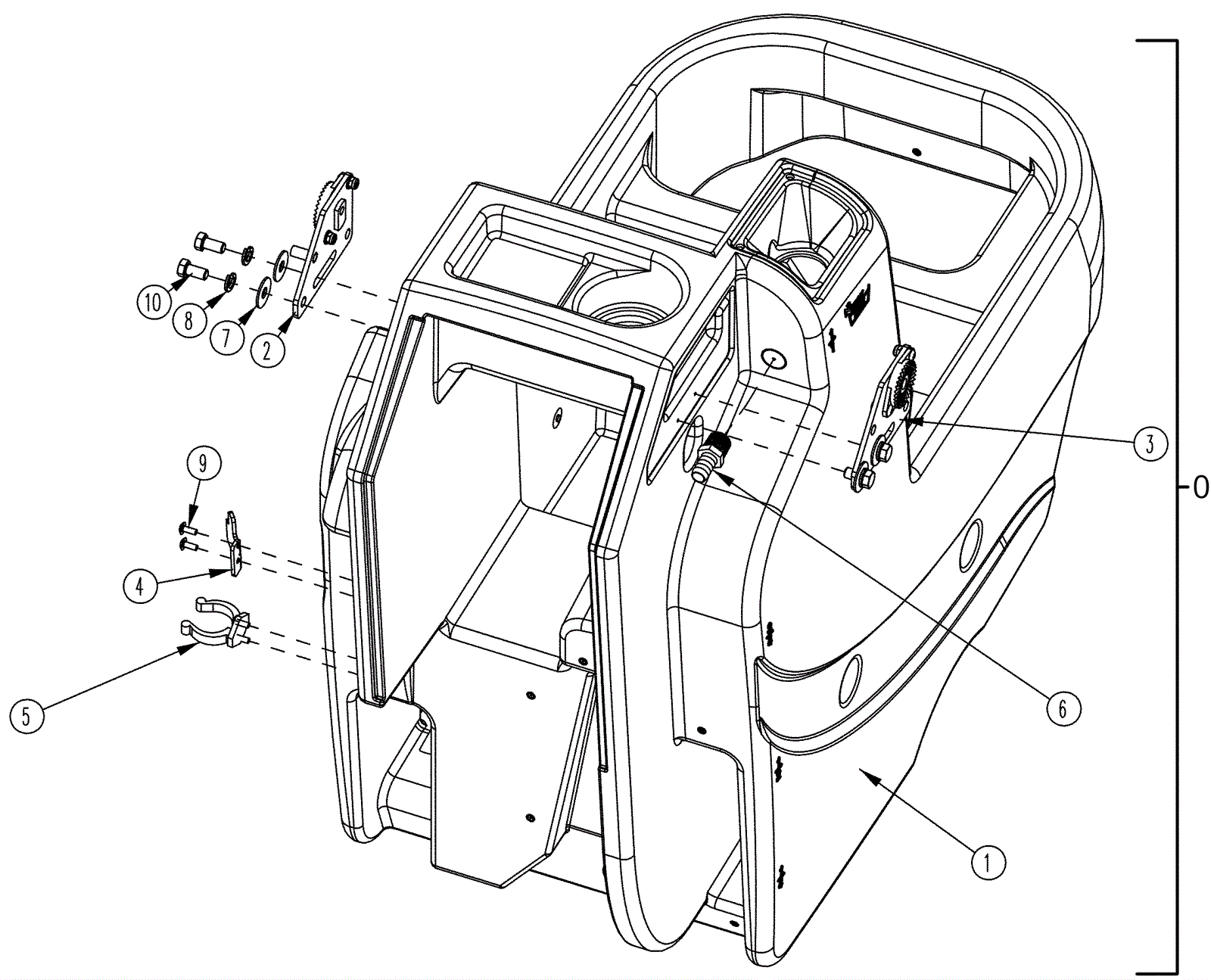

174-8235
|
Solution tank assembly |
1 |
(includes 1-10) |
|
1 |
174-8256
|
Solution tank |
1 |
|
|
2 |
174-8257
|
Left handle mount assembly |
1 |
|
|
3 |
174-8258
|
Right handle mount assembly |
1 |
|
|
4 |
274-1920
|
Drain hose hook |
1 |
|
|
5 |
174-5968
|
1 1/2 inch hose clip |
1 |
|
|
6 |
174-8259
|
Fitting 1/2 mpt 1/2 hb brass |
1 |
|
|
7 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
4 |
|
|
8 |
999-0034
|
Washer 3/8 split lock plain finish |
4 |
|
|
9 |
999-0586
|
Screw 10-24 x 1/2 truss head stainless steel |
4 |
|
|
10 |
999-0119
|
Bolt 3/8-16 x 3/4 hex head grade 5 zinc plated |
4 |
|
|
