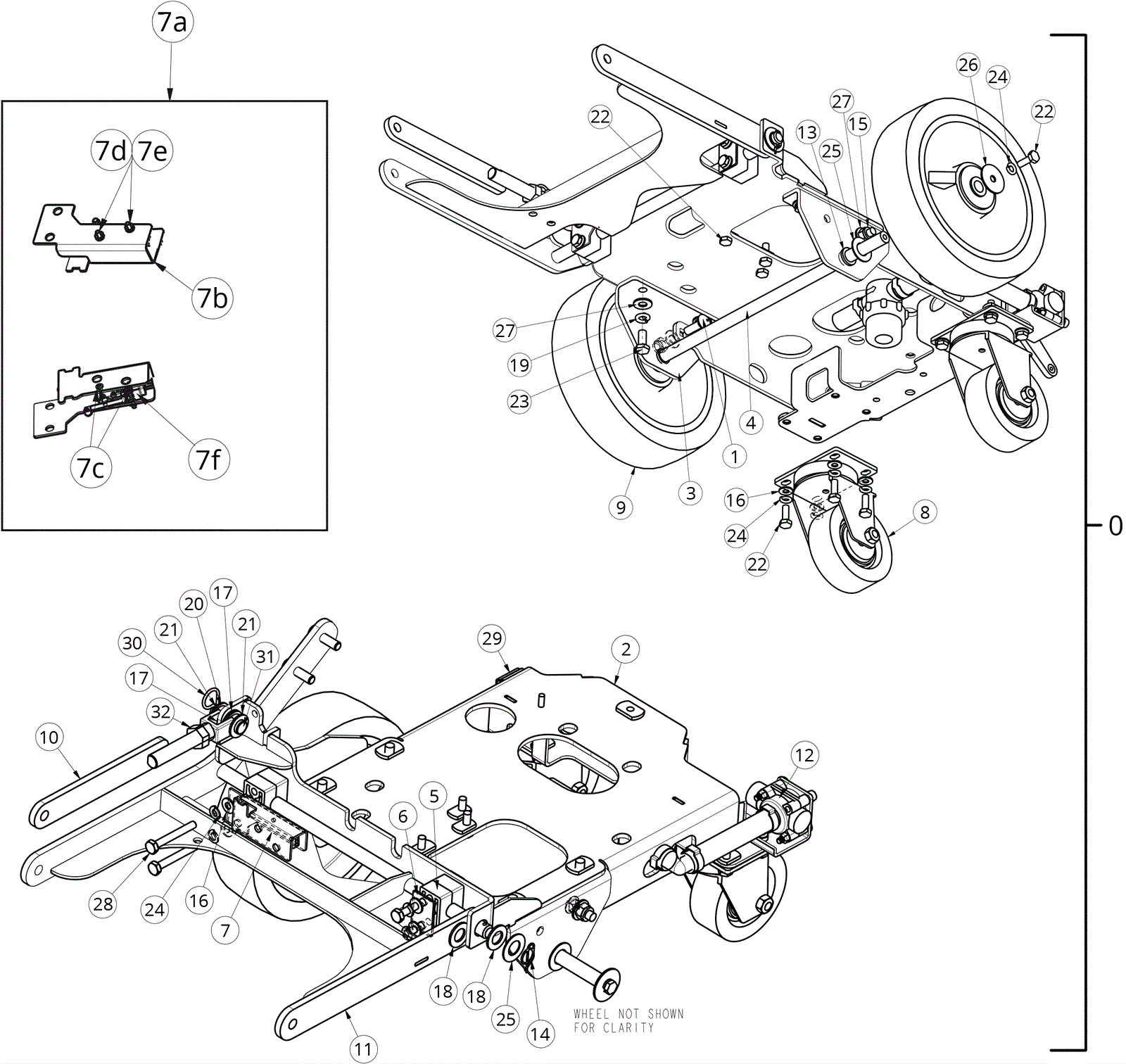

Chassis Assembly - Brush Drive

#PartDescription ReqNotesAvailability
0 174-8205 Chassis assembly 1 (includes 1-32)
1 999-0252 Screw 5/16-18 x 1 carriage head grade 5 zinc 2
2 174-8238 Main frame weldment 1
3 174-8239 Wheel bracket 2
4 174-8242 Wheel rod 1
5 174-8243 Bearing block 4
6 174-8244 Bearing block plate 1
7a 174-8246 Deck switch assembly 1 (includes 7b-7f)
7b 274-2017 BEARING BLOCK/SWITCH PLATE 1
7c 999-1059 Screw 4-40 x 3/4 pan head phillips zinc plated 2
7d 999-0408 Nut 4-40 plain machine screw 2
7e 999-0479 Washer #4 internal star lock zinc plated 2
7f 174-8264 Switch assembly (with pack conduit) 1
8 274-9979 3 1/2 inch caster 2
9 174-8249 Wheel 8 x 2 x .5 2
10 174-7156 Upper lifting arm 1
11 274-7650 Deck lift weldment 1
12 174-3885 Solution valve assembly 1
13 174-0120 Bushing 2
14 174-7161 Cotter pin 1
15 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
16 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 12
17 174-8193 Washer .390 x .880 x .062 flat 3
18 999-0566 Washer 1/2 flat nylon 2
19 174-8250 Washer helical 5/16 stainless steel 4
20 174-7162 Yoke clevis with pin 1
21 999-1363 Washer 7/8 flat stainless steel 2
22 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 13
23 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel 4
24 999-0632 Washer 1/4 split lock stainless steel 14
25 174-0588 Washer 9/16 x 1-1/16 x 3/64 flat pleated 3
26 174-1167 Washer 9/32 x 19/32 flat stainless steel 2
27 174-8251 Washer flat stainless steel 6
28 999-0258 Bolt 1/4-20 x 2 hex head grade 5 zinc plated 4
29 174-2234 Cord clip 1
30 174-0200 Cotter pin 1
31 174-5862 Clevis pin 1
32 999-0714 Nut 1/2-20 hex jam stainless steel 1
