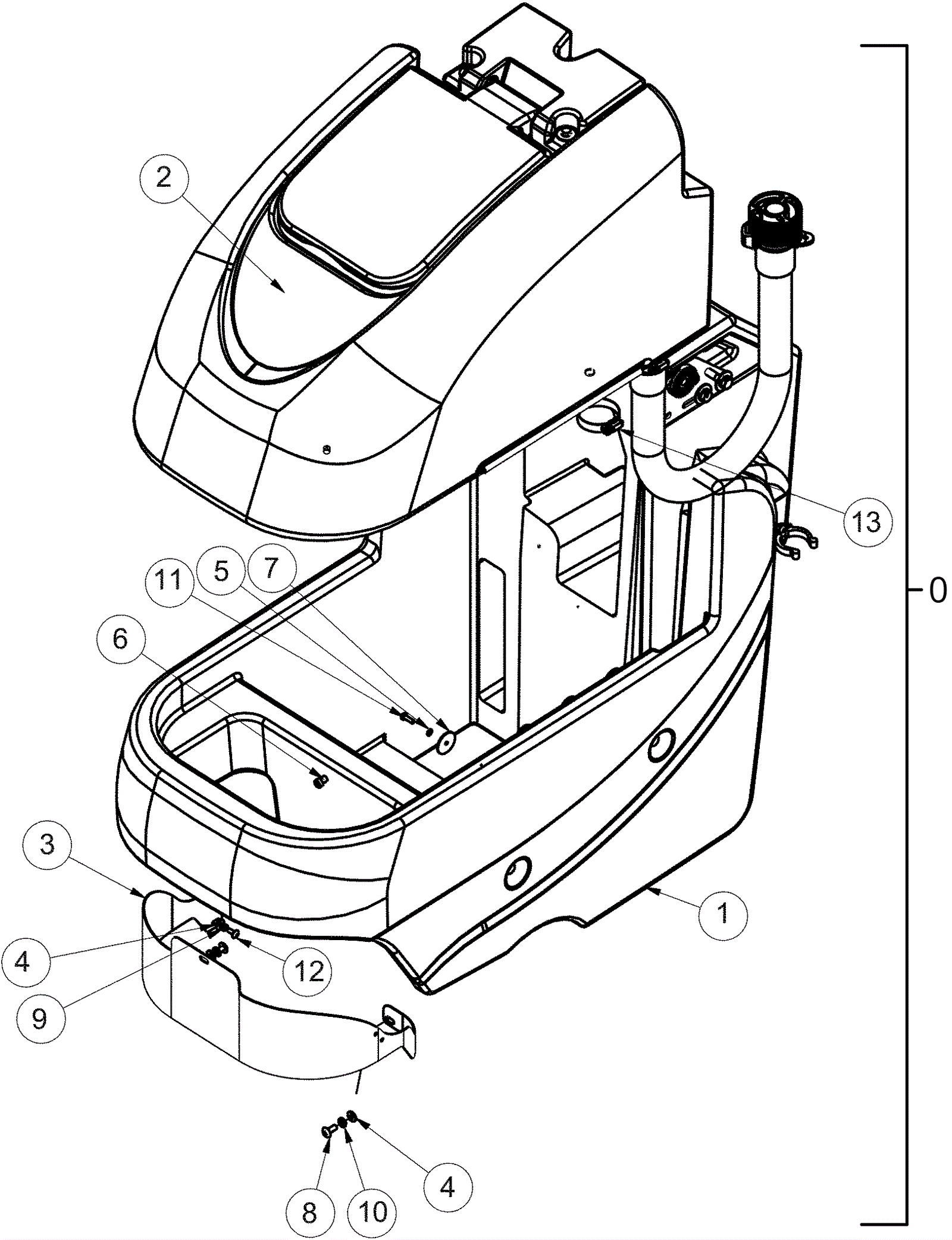

| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
174-8230
|
Base assembly |
1 |
(includes 3-13) |
|
1 |
174-8235
|
Solution tank assembly |
1 |
|
|
2 |
174-8236
|
Recovery tank assembly |
1 |
|
|
3 |
174-8237
|
Front panel |
1 |
|
|
4 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
3 |
|
|
5 |
174-5259
|
Washer #10 helical |
4 |
|
|
6 |
174-5160
|
Bolt 1/4-20 x .44 x 3/8 shoulder |
1 |
|
|
7 |
999-0464
|
Washer 3/16 flat plain finish |
4 |
|
|
8 |
999-0567
|
Screw 1/4-20 x 5/8 pan head phillips stainless steel |
2 |
|
|
9 |
999-0089
|
Washer #10 internal star lock zinc plated |
1 |
|
|
10 |
999-0632
|
Washer 1/4 split lock stainless steel |
2 |
|
|
11 |
999-0013
|
Screw 10 x 5/8 pan head phillips sheet metal |
4 |
|
|
12 |
999-0586
|
Screw 10-24 x 1/2 truss head stainless steel |
1 |
|
|
13 |
174-3354
|
Hose clamp |
1 |
|
|
