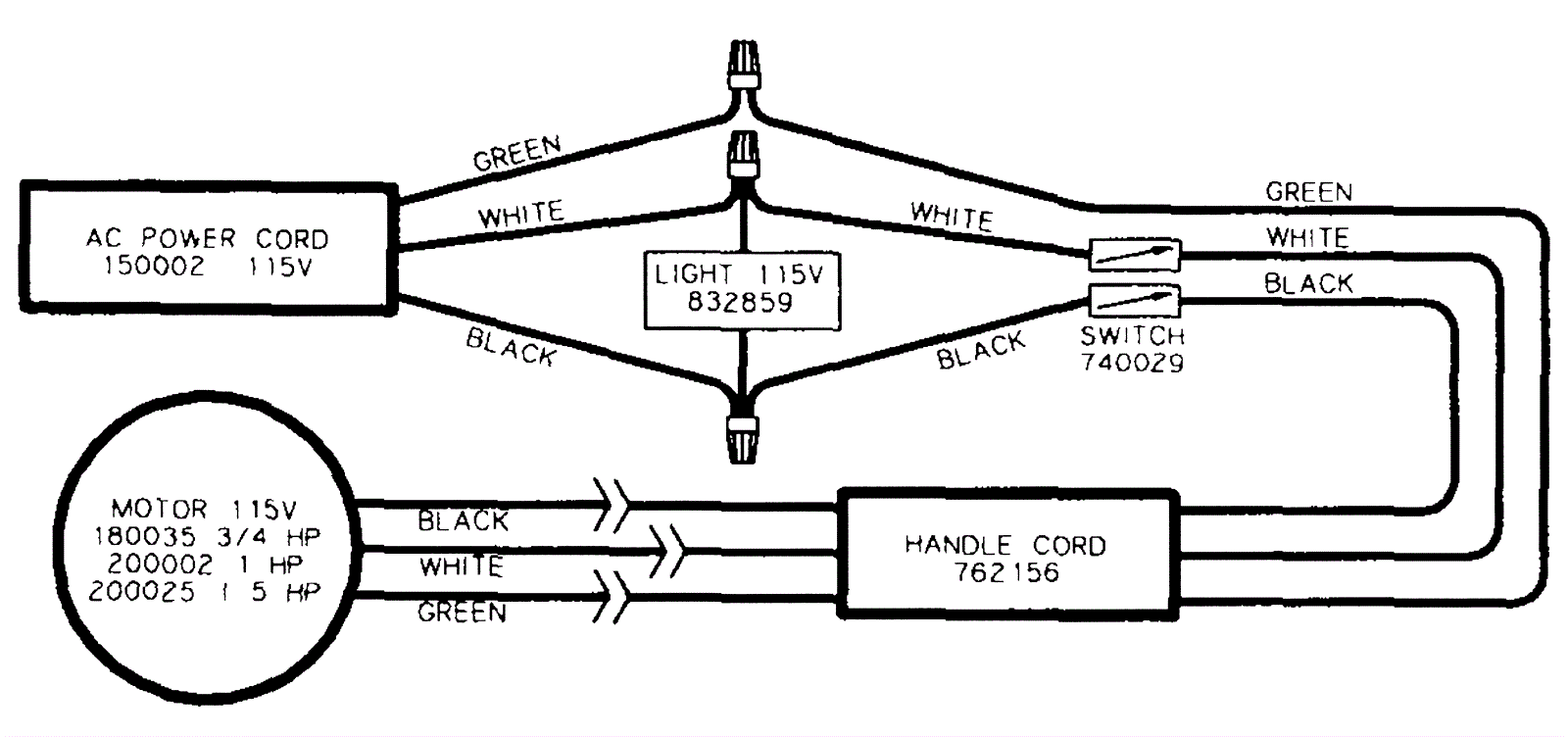

MC19 Wiring Diagram

#PartDescriptionPriceReqNotesAvailability
174-4020 14/3 power cord 50 foot $192.44 usually ships 4-14 days
991-5005 14/3 replacement power cord 50 foot (yellow) $108.51 (NON-OEM) ships same day
174-4024 Switch $24.53 usually ships 4-14 days
174-4041 120V 3/4HP motor with gear $570.40 usually ships 1-5 days
174-4042 120V 1HP motor with gear $587.94 usually ships 1-5 days
174-4043 120V 1.5HP motor with gear $921.40 usually ships 1-5 days
174-4060 Interconnect cord $43.72 usually ships 1-5 days
174-5128 115V indicator light $12.28 usually ships 4-14 days
