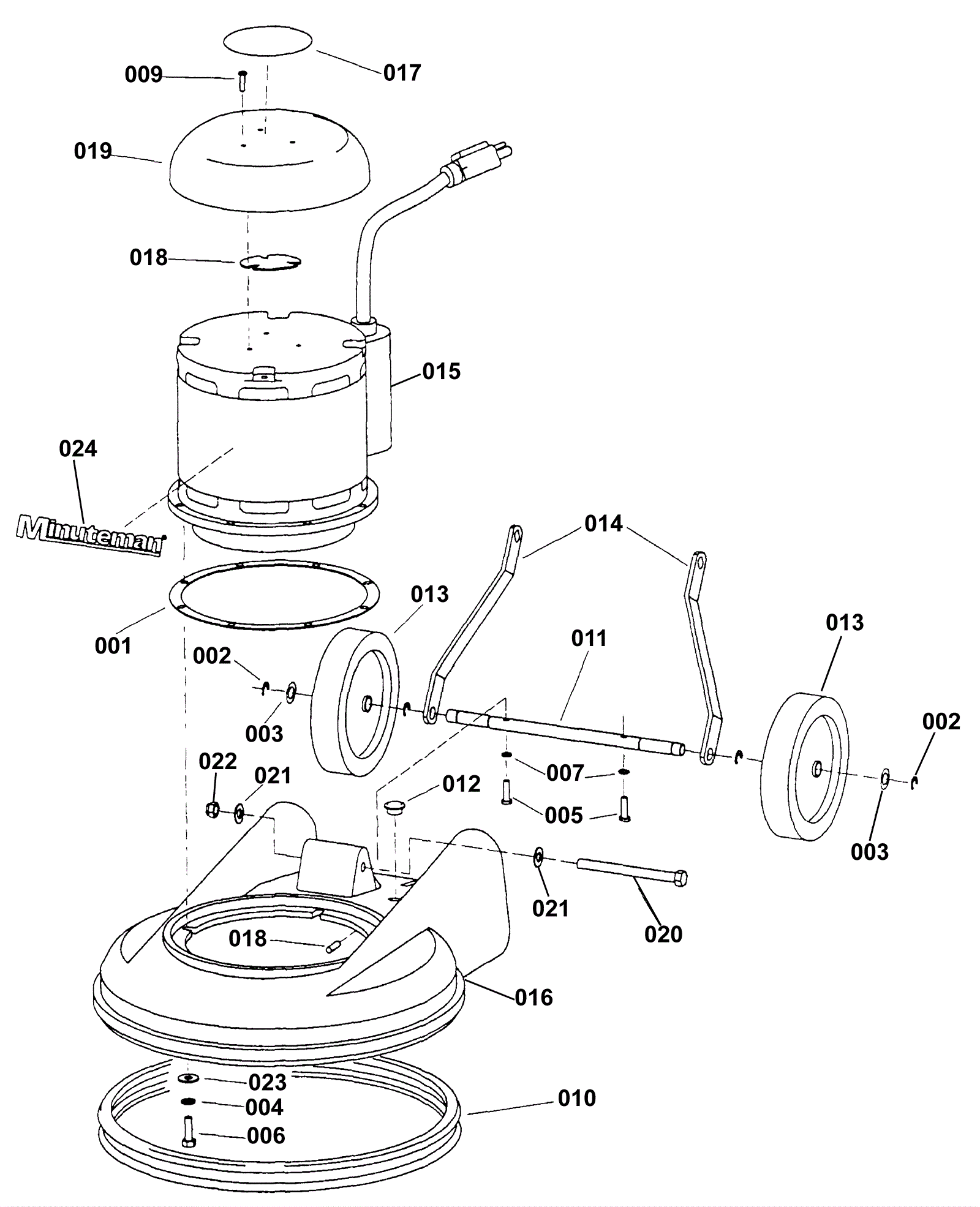

MC19 Base and Wheel Assembly

#PartDescriptionPriceReqNotesAvailability
001 174-1407 Gasket Call for price 1 usually ships 1-5 days
002 174-0178 1/2 inch external retaining ring $0.99 4 usually ships 4-14 days
003 174-5159 Washer 33/64 x 1/64 wave $0.99 2 usually ships 4-14 days
004 999-0028 Washer 5/16 split lock plain finish $0.99 4 ships same day
005 999-0866 Screw 1/4-20 x 7/8 round head slotted zinc plated $0.99 2 ships same day
006 999-0401 Bolt 5/16-18 x 7/8 hex head grade 5 zinc plated $0.99 4 ships same day
007 999-0060 Washer 1/4 split lock plain finish $0.99 2 ships same day
008 174-4046 Cork gasket $5.62 1 usually ships 4-14 days
009 999-0321 Screw 10-32 x 3/8 pan head slotted zinc plated $0.99 3 ships same day
010a 174-1408 Bumper $28.48 1 usually ships 1-5 days
010b N/A Not available Call for price 1 (bumper) usually ships 3-26 days
010c 174-1337 Bumper MC-22 $42.89 1 usually ships 1-5 days
011 174-1336 Axle $56.77 1 usually ships 1-5 days
012 174-1410 Rubber Plug Call for price 1 usually ships 1-5 days
013 174-0516 Guide wheel (gray) $10.57 2 usually ships 4-14 days
014 174-6259 Handle brace $35.72 2 usually ships 4-14 days
015a 174-4042 120V 1HP motor with gear $587.94 1 usually ships 1-5 days
015b 174-4043 120V 1.5HP motor with gear $921.40 1 usually ships 1-5 days
016a 174-1411 Base Call for price 1 usually ships 1-5 days
016b 174-1412 Base Call for price 1 usually ships 1-5 days
016c 174-1413 Base Call for price 1 usually ships 1-5 days
017 174-1414 Decal (OBSOLETE) $4.29 1 usually ships 4-14 days
018 174-2177 Roll Pin 1/4 x 7/8 $0.93 1 usually ships 1-5 days
019 174-4047 Motor cover $75.76 1 usually ships 4-14 days
020 174-4044 Yoke handle bolt $14.95 1 usually ships 1-5 days
021 999-0120 Washer 3/8 SAE flat $0.99 2 ships same day
022 999-0324 Nut 3/8-16 nylon insert lock jam zinc plated $0.99 1 ships same day
023 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
024 174-1415 Decal $10.97 1 usually ships 4-14 days
